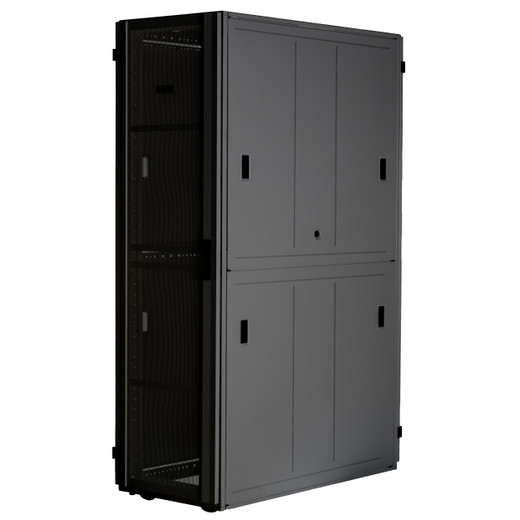

Panduit XGL84212B FlexFusion 42RU Server Rack Cabinet
The Panduit XGL84212B delivers enterprise-grade rack infrastructure for security control rooms, network operations centers, and datacenter deployments where thermal management and serviceability drive uptime. This 42-rack-unit cabinet pairs 800mm width with 1070mm depth, providing the dimensional balance surveillance integrators need when racking switches, NVRs, recording servers, and PoE infrastructure alongside UPS and power distribution equipment. Perforated front and split rear doors maintain laminar airflow across high-density recorder arrays while the powder-coated steel frame meets the structural loads of fully-populated surveillance installations.
Key Features
- 42RU vertical capacity accommodates NVR clusters, PoE switch stacks, recording servers, and backup power in a single footprint
- 800mm width × 1070mm depth dimensions optimize floor space in control rooms while providing equipment clearance for deep servers and cable management
- Perforated front door and split perforated rear doors deliver front-to-back airflow across recorder banks and PoE switch arrays without hot-spot formation
- Powder-coated steel construction supports 1,500+ lb static loads typical of fully-populated surveillance racks with battery backup
- Split rear doors enable single-technician access to rear panel connections without full door swing clearance in tight equipment rooms
- Included equipment rails with cage nuts support standard 19" rack-mount NVRs, switches, and servers without field modification
- Factory-supplied PDU mounting brackets position vertical power strips inside side panels, freeing U-space for revenue equipment
- Heavy-duty casters enable positioning during installation; locking mechanism prevents migration under cable pull forces
- Integrated cable pathways route fiber, copper, and power from floor entry points to equipment mounting plane without zip-tie bundles
- Side panels remove without tools for lateral access during maintenance and cable remediation
The XGL84212B addresses the thermal density problem surveillance integrators face when consolidating 64-channel NVRs, 48-port PoE switches, and multi-disk recording servers into security control room racks. The perforated front door maintains 68% open area, allowing CRAC-supplied cold air to reach equipment intake fans without obstruction. Split rear doors eliminate the access-versus-clearance tradeoff: each half swings 180 degrees independently, so a technician can open the left half to reach switch uplinks while the right half remains closed over adjacent hot-aisle equipment. The perforation pattern continues across both rear doors, maintaining exhaust airflow even during single-side service. Door perforations use 6mm diameter holes on 9mm centers—small enough to prevent accidental contact with live terminals while maintaining the open area needed for fanless PoE switch cooling. Front door hinges mount on either side via reversible hardware, letting you match door swing to room layout during installation rather than fighting cabinet placement to accommodate a fixed hinge side.
Structural capacity targets the loads integrators actually build: when you rack a 96TB NVR at 2U, a 48-port PoE switch at 1U, a 2U recording server, and a 3U UPS across the bottom six rack units, you're pushing 400 pounds before you add patch panels and the fiber shelf. The XGL84212B's 14-gauge steel frame rails distribute that load across four corner posts without deflection. Equipment rails ship with 50 cage nuts pre-threaded; you'll use 32 to rack eight pieces of 4-post equipment, leaving spares for field additions. Rails mount in square holes on 0.625-inch vertical increments—true RU spacing that aligns with every NVR and switch faceplate you'll install. The rear rail positions 1070mm behind the front rail, providing the 1000mm+ mounting depth that enterprise NVRs and recording servers require while leaving 70mm behind rear equipment flanges for power cord and fiber bend radius. If you're racking short equipment like 1U environmental monitors or KVM switches, offset the rear rail forward using the alternate hole set; the cabinet supports mixed-depth installations without forcing every device to the back plane.
PDU integration eliminates the U-space tax: the included side-panel mounting brackets position vertical power strips against the interior side wall, outside the 19-inch equipment mounting zone. You mount the PDU vertically at full cabinet height, gaining 12–16 outlets without consuming rack units. Outlets face the equipment you're powering—the PDU doesn't protrude into the cable management gutter or block airflow. Side-mount PDUs also keep power receptacles away from the rear door swing path, so you're not fighting cord strain when opening doors for maintenance. The brackets accept industry-standard 1.5-inch PDU mounting widths; specify your preferred PDU separately based on outlet count, plug type, and whether you need remote monitoring. For surveillance control rooms running dual power feeds, mount one PDU per side and split your NVR/switch power supplies across A and B feeds without external cable trays.
Casters are sized for the installed weight: when the rack holds 800 pounds of equipment, you're moving 1,200+ pounds with the cabinet steel. The supplied casters handle that load and include pad-activated locks—step on the lever to lock both the wheel rotation and the swivel axis. Locked casters prevent the cabinet from walking forward under cable pull when you're patching 48 camera uplinks into a top-of-rack PoE switch. During installation, unlock the casters to position the cabinet precisely over your floor cutout or cable tray entry, then lock them before you start loading equipment. If your datacenter uses seismic bracing or raised floor anchoring, replace the casters with leveling feet after positioning; the cabinet base accepts M12 leveling feet using the same corner mounting holes. Leveling feet also eliminate the 2-inch height increase casters add, which matters when you're calculating ceiling clearance for overhead cable tray in rooms with 8-foot ceilings.
Cable management starts at the base: the cabinet floor includes a 200mm × 600mm knockout panel that aligns with standard floor-cutout dimensions. Feed your camera home-runs, fiber backbone, and AC power through the floor, then route vertically using the cabinet's internal side channels. For above-floor cable entry, remove the blank knockout and use a cable gland or brush panel; the opening accommodates 2-inch conduit or 4-inch flexible loom. The rear of the cabinet provides 100mm of depth behind the rear equipment rail before you hit the rear door—that's your vertical cable highway. Route camera uplink cables up the left side, switch-to-switch stacking cables up the right side, and power down the center. Use hook-and-loop ties on the rear cross-braces at 4RU intervals; the cross-braces are part of the structural frame, so they don't move when you add equipment. The split rear doors mean you can open half the cabinet to add a cable without disturbing the full bundle—route the new cable behind the closed half, then swing that half open to dress it to the target port.
The FlexFusion series distinguishes itself through field adaptability: the XGL84212B ships as a complete enclosure, but every panel removes without tools for modifications. Side panels lift off after loosening two captive quarter-turn fasteners per panel. Remove a side panel to add a panel-mount fan array when you're racking equipment that exceeds 3kW thermal load, or to install a side-mount cable manager when you're running 200+ camera home-runs through the cabinet. The split rear doors attach via continuous hinges; if you need to remove a door entirely for a large equipment swap, lift the door off the hinge pins without dismantling the hinge barrel. The front door uses a three-point latch with keyed lock; the lock tumbler is replaceable if you need to match site master keying. For deployments where front-door security isn't required—like secured control rooms where physical access is already controlled—replace the locking handle with a non-locking paddle handle to eliminate key management.
Powder coat finish is electrostatically applied over a zinc-phosphate pretreatment, producing a Class 3C-equivalent coating per ASTM B117 salt-spray testing. Black texture hides fingerprints and scuffs during installation—relevant when you're loading 15 pieces of equipment over two days and your hands are full of rack-mount hardware. The powder coat remains intact under the thermal cycling of equipment starting and stopping; it won't flake when NVR exhaust air hits 45°C during sustained recording. The finish is non-conductive, eliminating ground-loop concerns when equipment chassis contact the cabinet frame through rack ears. If you scratch the powder coat during installation, touch up with matching black appliance paint; the cabinet steel is zinc-treated under the powder coat, so surface scratches don't initiate rust in climate-controlled environments.
Deploy the XGL84212B where rack density, thermal load, and service access intersect: security control rooms consolidating 128+ camera channels into a single-rack NVR cluster; network operations centers supporting building-wide PoE infrastructure from a central switch stack; datacenter rows where you need 42U of vertical capacity without exceeding 800mm width for hot-aisle containment. The 1070mm depth accommodates recording servers with redundant power supplies and full-depth cable management arms, while the 800mm width fits through standard 36-inch door frames during delivery. The split rear doors eliminate the access penalty in installations where the rear of the cabinet sits 18 inches from a wall—you can open one half without the swing arc hitting the wall. Perforated doors maintain airflow without requiring active fans in the door itself, reducing failure points and eliminating door-mounted fan wiring that limits door swing.
The FlexFusion XGL84212B is the rack foundation for surveillance and infrastructure deployments where equipment density and uptime requirements make cabinet selection an engineering decision rather than a purchasing formality. Powder-coated steel construction, perforated doors for front-to-back airflow, tool-free panel removal, and integrated PDU mounting deliver the serviceability integrators depend on when control room racks run 24/7/365 without scheduled downtime. Supplied with equipment rails, cage nuts, PDU brackets, and heavy-duty casters, ready for immediate equipment installation. Manufacturer Warranty.
