Panduit XG84522BS-0051 Grounding Jumper Kit
Overview
The Panduit XG84522BS-0051 is a grounding jumper kit designed for 800mm wide, 1200mm high Panduit FLEXF racks. Proper electrical grounding is critical for protecting sensitive electronic equipment, such as network switches, servers, and surveillance devices, from electrostatic discharge (ESD) and power surges. This kit provides the necessary components to establish a reliable ground path, ensuring system stability and longevity in data center and IT infrastructure deployments.
Compatibility
This grounding jumper kit is specifically designed for Panduit FLEXF racks with the following dimensions: 800mm width and 1200mm height. It is intended for use with racks that require a ground connection to the chassis and installed equipment. Always verify rack dimensions and grounding requirements before ordering.
Installation Notes
Installation requires a T20 Torx wrench (not included) for securing the ground lugs. The kit includes a 51" (1.3m) green insulated copper ground jumper with pre-attached lugs. Ensure the rack and all connected equipment are de-energized before beginning installation. Connect one lug to the rack's designated grounding point and the other to the equipment's grounding lug. Consult your site's electrical grounding plan and local codes for specific installation requirements.
What's in the Box

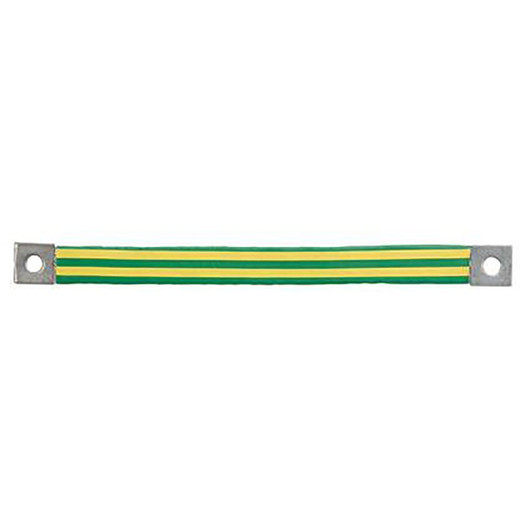

- 1x 51" (1.3m) Green Insulated Copper Ground Jumper
- 2x Ground Lugs (pre-attached)
