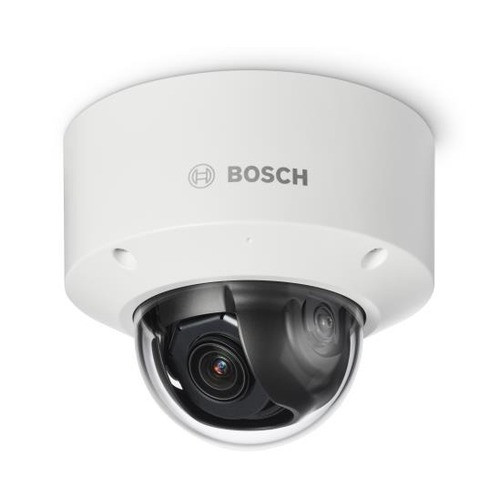

Bosch Fixed dome 6MP HDR 3.9-10mm PTRZ IP67 - NDE-8703-R

Bosch NDE-8703-R FLEXIDOME 8100i 6MP Outdoor Fixed Dome Camera

Overview

The Bosch NDE-8703-R is a 6MP outdoor fixed dome from the FLEXIDOME 8100i family — a camera engineered for perimeter lines, building entrances, and covered outdoor areas where you need genuine forensic-grade evidence, edge analytics that run without a server, and a housing that shrugs off both a sledgehammer and a Norwegian winter. The NDE-8703-R (often searched as NDE 8703 R) pairs a 3.9–10mm motorized PTRZ varifocal lens with a 120dB wide dynamic range sensor, putting calibrated, post-install framing adjustment in the hands of the commissioning tech without touching a ladder again.

This is an NDAA-compliant platform, verified for Section 889 Part B deployments. If federal facilities, DoD contractors, or government-funded campus projects are in scope, that box is already checked.

Key Features

• 6MP at 30 fps: A 1/1.8-inch sensor delivering 6 megapixels at full 30 frames per second gives you roughly 2.4× the pixel density of 1080p — meaningful when you need to pull a legible face or plate from a wide scene without zooming the camera in so tight you lose situational context. DORI Identify distance is 4 m / 16 m; Recognize reaches 8 m / 32 m; Observe 16 m / 64 m; Detect 40 m / 162 m.
• 120dB Wide Dynamic Range: At 120dB, this sensor handles a sun-blasted glass entrance alongside a dim lobby simultaneously — both zones stay in detail, not blown out or crushed. If you have fought a glare-wrecked front-door recording in your VMS, this is the spec that resolves it.
• 3.9–10mm Motorized PTRZ Varifocal: Pan, tilt, roll, and zoom adjustments are all motorized and remote-controllable, covering horizontal angles from 44° to 117°. You dial in the field of view from a laptop after the dome is ceiling-mounted — no re-aiming the head by hand, no second trip up the lift.
• Starlight Low-Light Performance: Color sensitivity down to 0.036 lux and monochrome to 0.0054 lux. In practice, that means usable color footage in near-dark corridors lit only by emergency-exit signs — no IR blowout, no flat grayscale at the first sign of dusk. Pair with the camera's P-iris control for precise depth-of-field management in mixed-light scenes.
• IVA Pro Analytics Suite: On-camera IVA Pro Buildings, Perimeter, Privacy, Traffic, Personal Protective Equipment, Appearance Search, Visual Gun Detection, and LPR/Make Model/Dangerous Goods Signs run at the edge — no dedicated analytics server required. For access-controlled buildings, PPE compliance monitoring, or parking structures, this eliminates a server licensing line item and keeps latency low.
• H.265 with Intelligent Streaming: H.265 cuts storage and bandwidth roughly in half versus H.264 on the same scene. Add Bosch's Intelligent Streaming (enabled on this platform) and you tune bitrate dynamically based on motion and scene complexity — 24/7 multi-camera recorders see the difference immediately on retention math. MJPEG is also available for legacy integrations that require it. Up to 4 simultaneous streams are supported.
• IK11 Vandal Resistance + IP66/IP67: IK11 is the highest standardized impact rating — rated to withstand 50 joules of direct impact (think a deliberate hammer blow). IP67 means full dust exclusion and temporary submersion tolerance. This housing is appropriate for exposed locations — transit stations, parking decks, loading docks — where standard IK10/IP66 domes get compromised.
• -50°C to +60°C Operating Range: Very few cameras operate below -40°C. The NDE-8703-R's -50°C floor covers extreme cold-storage environments, outdoor northern-climate installations, and unheated industrial enclosures without an external heater. The +60°C ceiling handles rooftop mounting in high-ambient-heat climates.
• On-Board Audio and Alarm I/O: Audio input/output, audio alarm, and alarm I/O are included. Two-way audio and alarm-triggered recording are configurable without add-on hardware — useful for unmanned entry points or perimeter fence lines where verbal challenge capability matters.
• Local Storage via iSCSI: iSCSI network storage is supported in addition to local edge storage, giving you a direct-attach recording path that doesn't require a full NVR if you're running a distributed or hybrid architecture. Combined with ONVIF Profile G (edge recording), this opens up resilient, server-light topologies.
• IEC 62443 Cybersecurity: The NDE-8703-R is designed to the IEC 62443 industrial cybersecurity standard — relevant for healthcare, utilities, and critical infrastructure deployments where IT security audits require documented cyber-hardening on all network-attached devices.
• Remote Commissioning: Remote commissioning support means the camera can be configured, aimed (via PTRZ), and validated over the network after physical installation — reducing on-site labor for multi-site rollouts.

Integration and Compatibility

The NDE-8703-R supports ONVIF Profiles S, G, M, and T — the broadest profile coverage in the standard, covering streaming (S), edge recording (G), metadata/analytics (M), and PTZ/imaging (T). This means the camera integrates cleanly into virtually any modern VMS without custom drivers. The camera also supports cloud connectivity for remote management workflows.

Explore the full Bosch IP camera lineup for complementary models in the FLEXIDOME family. For multi-camera deployments, pair with a network video recorder that supports H.265 natively to maximize storage efficiency. PoE-powered via standard IEEE 802.3af/at — verify your PoE switch budget when deploying multiple high-resolution cameras on the same closet switch. For perimeter deployments, review the camera selection guide to match DORI distances to your required identification zones.

Frequently Asked Questions

Q: Is the NDE-8703-R NDAA Section 889 compliant?

A: Yes. The NDE-8703-R is verified as NDAA-compliant, making it suitable for federal facilities, DoD contractor sites, and government-funded projects subject to Section 889 Part B restrictions.

Q: What analytics run on the NDE-8703-R without a separate server?

A: The camera runs IVA Pro Buildings, IVA Pro Perimeter, IVA Pro Privacy, IVA Pro Traffic, IVA Pro Personal Protective Equipment, IVA Pro Appearance Search, IVA Pro Visual Gun Detection, and IVA Pro LPR / Make Model / Dangerous Goods Signs — all at the edge, no external analytics server required.

Q: What ONVIF profiles does the NDE-8703-R support?

A: The NDE-8703-R conforms to ONVIF Profiles S, G, M, and T — covering live streaming, edge recording, metadata/analytics transport, and PTZ/imaging control respectively.

Q: What is the impact resistance rating on the NDE-8703-R?

A: IK11 — the highest standardized impact classification, rated to withstand 50 joules of direct impact. Combined with IP66/IP67 ingress protection, this housing is appropriate for exposed transit, industrial, and high-vandalism-risk locations.

Q: What is the minimum operating temperature for the NDE-8703-R?

A: -50°C (-58°F). This covers extreme cold-storage environments, outdoor northern-climate installations, and unheated industrial enclosures without requiring an external heater — broader than the -40°C floor common on most outdoor cameras.

Q: Does the NDE-8703-R support on-board storage?

A: Yes. The camera supports both local edge storage and iSCSI network storage, and ONVIF Profile G enables edge recording — useful for resilient, server-light or hybrid architectures.

Eden Phillips

The NDE-8703-R is the camera I reach for when a site brief says 'outdoor, high-risk, analytics required, and the customer has a federal contract.' That -50°C operating floor and IK11 housing are not marketing numbers — they translate directly to transit hubs, cold-climate perimeters, and covered parking structures where a standard outdoor dome would fail within two winters. The 120dB WDR on this 6MP sensor handles the entrance-lobby lighting split that defeats most sub-100dB cameras, and the full IVA Pro suite running on the edge means I can hand off a gun-detection or LPR requirement without quoting a separate analytics appliance.

Technical Highlights:

• 1/1.8-inch sensor at 6MP/30fps: Larger than the 1/2.8-inch sensors common at this price tier — more light-gathering area means the 0.0054 lux monochrome floor is achievable in real scenes, not just a spec-sheet number.
• PTRZ motorized varifocal (3.9–10mm, 44°–117° H): Post-mount aim correction over the network eliminates return visits on multi-camera jobs where ceiling geometry never matches the site plan.
• IEC 62443 cybersecurity posture: Required documentation for healthcare network audits and utility SCADA-adjacent deployments — the NDE-8703-R ships with this standard baked in, not retrofitted.

Deployment Considerations:

• ONVIF Profiles S/G/M/T give you broad VMS compatibility, but verify your VMS version supports Profile M if you intend to consume metadata-streamed analytics events — older platform versions may only handle Profile S/T.
• No built-in IR illuminator on this model. In true zero-light conditions you will need external IR or white-light supplemental illumination — the Starlight sensor is exceptional in near-dark, not absolute dark.

For a covered transit platform, a university perimeter, or a government campus entrance where NDAA compliance and sub-zero temperature resilience are both hard requirements, the NDE-8703-R is the correct tool — not an upgrade for its own sake, but a match to a specific set of site conditions that cheaper domes cannot reliably meet.
