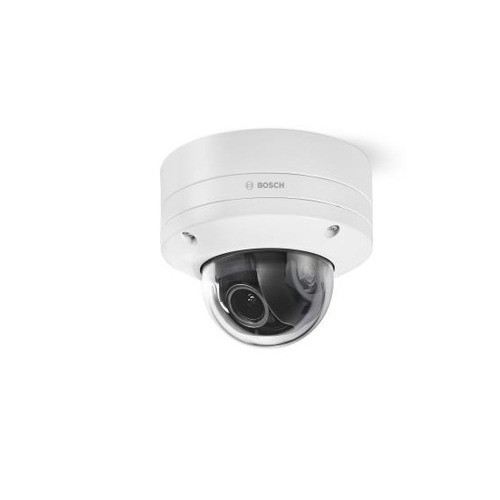

Bosch FLEXIDOME IP STARLIGHT 8000I FIXED DOME 2MP HDR 3-9MM PTRZ IP66 - NDE-8502-R

Bosch NDE-8502-R FLEXIDOME IP Starlight 8000i 2MP Fixed Dome

Overview

The Bosch NDE-8502-R is a 2MP fixed dome camera built around an exceptionally wide 146 dB dynamic range sensor and a pan-tilt-rotate-zoom (PTRZ) motorized lens system — a combination that addresses two of the most persistent installation headaches: blown-out scenes where bright and dark zones coexist, and the camera-alignment friction that typically requires a second technician or a return visit. This is a camera you aim after the cable is dressed, not before. The NDE-8502-R (often searched as NDE 8502 R) fits naturally into commercial indoor/outdoor environments where high-contrast lighting and single-person commissioning are real constraints.

As part of the Bosch Security surveillance line, the 8000i series positions itself as a high-specification fixed dome for integrators who need reliable performance in difficult light without the overhead of a full PTZ platform.

Key Features

• 146 dB Wide Dynamic Range: Most WDR implementations start struggling above 120 dB. At 146 dB, the NDE-8502-R retains usable detail simultaneously in sun-flooded lobbies and dim back-of-house corridors — the kind of scene mix that defeats standard WDR and produces either a blown-out entrance or a crushed interior. If your site has floor-to-ceiling glass or direct sunlight ingress, this is the spec to anchor your camera selection on.
• PTRZ Motorized Lens (3–9mm and 10–23mm): Pan-tilt-rotate-zoom adjustment is done electronically from the installer interface, not by hand-twisting the camera body. This eliminates the back-and-forth between camera and monitor during commissioning. The 3–9mm range (F1.2–2.3 aperture) covers wide-angle scenes at 117° × 59° wide and 37° × 21° tele. The 10–23mm range (F1.6–2.6) reaches further for corridor or perimeter coverage at 32° × 18° wide down to 14.4° × 8.1° tele — enough reach to cover loading bays and extended aisles from a ceiling mount.
• Starlight Sensitivity — 0.0104 lx Color / 0.0039 lx Mono: The 1/2.8-inch CMOS sensor with 2.9 μm pixel pitch captures usable color footage at illumination levels that would force lesser cameras into grainy monochrome. At 0.0039 lx in mono mode, you're covering environments with minimal ambient light without adding supplemental IR — relevant in spaces where IR wash creates unacceptable visual artifacts or compliance issues.
• 60 fps at 1920×1080: Double the standard 30 fps frame rate means motion events — fast-moving people, vehicles, conveyor systems — are captured with half the inter-frame gap. This translates directly to more usable frames during forensic review and reduced motion blur on moving subjects, which matters for facial and license plate identification at the edges of the frame.
• H.265 Compression with H.264 and M-JPEG Fallback: H.265 cuts bandwidth and storage consumption roughly in half versus H.264 for equivalent quality — on a 24/7 multi-camera recorder, that's a meaningful reduction in both drive count and network load. M-JPEG remains available for VMS integrations that require frame-accurate still extraction or where motion-JPEG compatibility is specified.
• IP66 and IK10 Rated Enclosure: IP66 means the dome is sealed against dust ingress and withstands direct water jets — suitable for outdoor overhangs, covered walkways, and interior environments with periodic washdown. IK10 adds resistance to 20-joule impacts, which is the practical threshold for tamper resistance in publicly accessible areas. Both ratings together make this camera appropriate for retail, transit, and light industrial deployments without a separate housing.
• Flexible Power Input (PoE / 24 VAC / 12–26 VDC): Standard PoE (drawing 7–16 W depending on configuration) means no separate power run on most installations. The 24 VAC and 12–26 VDC inputs provide fallback for legacy infrastructure where PoE runs aren't available — useful in retrofit projects where existing coax-era power wiring is being reused or where UPS conditioning is already in place on AC lines.
• ONVIF Profile S, G, M, T Conformance: Simultaneous conformance to all four active ONVIF profiles covers the widest possible range of VMS and edge storage integrations. Profile G enables on-camera recording, Profile T covers H.265 and analytics metadata, and Profile M addresses metadata for analytics-driven workflows. This camera will integrate with any ONVIF-compliant network video recorder without vendor-specific drivers.
• 67 ms Camera Latency: Sub-100ms end-to-end latency is the threshold for real-time operator response. At 67 ms, live view in a monitoring station remains perceptually synchronous with events on the floor — relevant in environments where security personnel act on live video rather than recorded footage.

Integration and Compatibility

ONVIF conformance across Profiles S, G, M, and T means the NDE-8502-R integrates into the broad ecosystem of video management software platforms without custom drivers. Profile G metadata supports on-camera edge storage workflows where local recording acts as a buffer or primary store. For full feature access — advanced analytics, dynamic metadata, and PTRZ remote control — verify your VMS supports Profile T and the Bosch-specific integration API, where applicable.

For PoE deployments, draw is 7–16 W depending on configuration. A standard 802.3af (15.4 W) port covers the upper end of this range with minimal headroom; if you're running near-simultaneous PTZ and high-frame-rate modes, confirm your PoE switch port budget before deploying at scale. At 175 mm × 84 mm, the dome form factor is ceiling-mount standard and compatible with standard flush and surface junction boxes, though verify pendant and wall-mount adapter compatibility with your specific mounting surface before specifying hardware.

Frequently Asked Questions

Q: What dynamic range does the NDE-8502-R support, and why does it matter for high-contrast scenes?

A: The NDE-8502-R delivers 146 dB of wide dynamic range. This allows the camera to simultaneously expose both bright and dark areas of a scene — such as a sunlit entrance combined with a dim interior — without either zone being blown out or crushed. Most cameras cap out at 120 dB; the additional headroom is significant in lobbies, atriums, and covered entryways with direct sunlight ingress.

Q: Does the NDE-8502-R support remote lens adjustment, or does it require physical access?

A: The PTRZ (pan-tilt-rotate-zoom) motorized lens system allows full remote adjustment of pan, tilt, rotation, and zoom after installation. This means commissioning can be completed from a laptop or VMS interface without physically accessing the camera — eliminating the need for a second person on a ladder during setup.

Q: What power inputs are supported by the NDE-8502-R?

A: The NDE-8502-R accepts PoE (Power over Ethernet), 24 VAC, and 12–26 VDC. Power draw ranges from 7 W to 16 W depending on operating mode. Standard 802.3af PoE is sufficient for most configurations, though high-demand scenarios should be confirmed against port budget.

Q: Which ONVIF profiles does the NDE-8502-R conform to?

A: The NDE-8502-R conforms to ONVIF Profile S, G, M, and T. This covers live streaming, edge recording, metadata, analytics, and H.265 workflows — the broadest conformance level available, ensuring compatibility with virtually any ONVIF-compliant VMS or NVR platform.

Q: What are the IP and impact protection ratings on the NDE-8502-R?

A: The camera carries an IP66 rating (dust-tight, resistant to direct water jets) and IK10 impact protection (resistant to 20-joule impacts). Both ratings are verified for the housing without requiring an additional protective enclosure, making it suitable for outdoor overhangs, covered walkways, and publicly accessible interior areas.

Q: What lens options are available, and what coverage do they provide?

A: Two motorized PTRZ lens options are available. The 3–9mm (F1.2–2.3) provides wide-angle coverage from 117° × 59° to 37° × 21°. The 10–23mm (F1.6–2.6) provides longer-reach coverage from 32° × 18° down to 14.4° × 8.1°. Both are adjusted remotely without physical camera access.

Karl Wilson

The spec that stands out to me on the NDE-8502-R is the 146 dB dynamic range — not because it's a marketing number, but because in real deployments, most site surveys underestimate how badly lobby and perimeter cameras get hammered by direct light. I've seen 120 dB cameras struggle on standard south-facing entrances. At 146 dB, this camera handles scenes that would require an HDR workaround on most other platforms, without the frame-blending latency artifacts that can confuse analytics pipelines.

Technical Highlights:

• 146 dB WDR: Genuine high-contrast performance — 26 dB above the common 120 dB ceiling — means usable simultaneous detail in both the bright exterior and the shadowed interior of the same frame. This is the spec that determines whether your lobby camera is evidence-grade or just decorative.
• PTRZ Remote Alignment (3–9mm / 10–23mm): Full pan-tilt-rotate-zoom adjustment post-cable-dress is a real labor cost lever. On multi-camera installs, eliminating the second-tech-on-a-ladder step translates to measurable time savings per drop. The 10–23mm variant at 14.4° × 8.1° tele is particularly useful on longer interior runs where you need corridor-mode reach from a ceiling-center mount.
• 0.0039 lx Mono Sensitivity: The 1/2.8-inch sensor with 2.9 μm pixel pitch captures usable monochrome at near-zero ambient. In spaces where adding supplemental IR would create wash artifacts or compliance issues — healthcare corridors, exhibit spaces — this sensitivity floor matters more than the IR spec on a comparable model.

Deployment Considerations:

• Power draw ranges 7–16 W; if you're running the camera in high-frame-rate (60 fps) mode with PTRZ active, budget toward the upper end and confirm 802.3af port headroom on your switch — a tight port budget can cause unexpected resets under simultaneous load.
• The GENERIC category classification here means analytics capabilities are not confirmed from available evidence — do not specify this camera on a project where edge analytics (object classification, line crossing, people counting) are contractually required without verifying the analytics feature set with the current firmware release.

This camera earns its position on high-contrast interior/exterior transition zones — covered parking entrances, ground-floor retail with floor-to-ceiling glazing, airport check-in halls — where 146 dB WDR is the deciding factor and single-technician commissioning via PTRZ is a genuine operational advantage rather than a checkbox feature.
