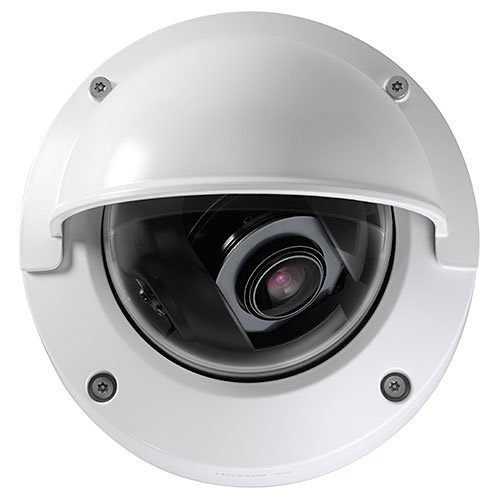

Bosch FIXED DOME 2MP HDR X STARLIGHT X 12-40MM PTRZ IP66 IK10+ - NDE-8502-RXT

Bosch NDE-8502-RXT Fixed Dome 2MP HDR X Starlight X 12-40mm PTRZ

Overview

The Bosch NDE-8502-RXT is a 1080p fixed dome camera engineered for installations where lighting conditions swing from blinding sun to near-darkness — and where a wrong lens call during commissioning costs a truck roll later. The motorized 12–40mm PTRZ (pan, tilt, rotate, zoom) optical design means you can dial in framing from the head-end after mounting, which matters on high ceilings or hard-to-reach soffits. Built around a 1/1.8-inch CMOS sensor with 4.1 μm pixels and Bosch's Starlight X low-light processing, this camera is sized for environments like lobbies, parking structures, retail floors, and transit facilities where light never cooperates and impact or weather resistance is non-negotiable.

The IK10+ impact rating and IP66 weatherproofing make the NDE-8502-RXT a viable outdoor dome as well as an indoor unit in areas subject to vandalism or pressure washing. ONVIF Profile S, G, M, and T conformance keeps it open to the major VMS platforms on the market today.

Key Features

• 144 dB Wide Dynamic Range: At 144 dB, this is a serious HDR spec — most commercial cameras top out at 120 dB. That margin translates to usable detail at a bank entrance where a sun-flooded exterior door sits next to a dim interior corridor. You get a single image that holds both zones without blowing out the highlights or crushing the shadows, which is where evidence-grade footage actually matters.
• Starlight X Low-Light Sensitivity (0.0007 lx mono / 0.0061 lx color): At 0.0007 lx in monochrome mode, this sensor produces recognizable imagery in conditions that are effectively unlit to the human eye. In parking structures or stairwells with failing or missing fixtures, that sensitivity gap between this camera and a standard 0.03–0.05 lx sensor is the difference between a useful image and a black frame at 2 a.m.
• 12–40mm PTRZ Motorized Lens: The motorized varifocal covers a 3.3x range (36.8° to roughly 12° horizontal depending on focal length), and the pan-tilt-rotate-zoom adjustment happens electrically, not manually. That means an integrator can mount the camera, then fine-tune framing remotely or via local adjustment — no ladder required for repositioning after the ceiling tile goes back in.
• 1/1.8-Inch CMOS Sensor with 4.1 μm Pixels: Larger pixels collect more light per unit area than the 1/2.8-inch sensors common at this resolution. The result shows up in low-light SNR (>55 dB per spec) and in reduced noise in color mode — relevant when you are retaining footage for 30+ days and compression artifacts on noisy frames drive up storage consumption.
• H.265 Compression at up to 60 fps: H.265 cuts bitrate roughly in half compared to H.264 at equivalent quality — on a 16-camera NVR recording 24/7, that difference is measured in terabytes per month. The 1–60 fps range gives you the option to push to 60 fps on scenes where motion blur in evidence review is a concern, without that rate being a permanent storage burden on quieter channels.
• 67 ms Camera Latency: At 67 ms end-to-end, this camera is compatible with real-time monitoring workflows where operators react to live feeds. That latency is low enough that it won't cause issues with synchronized multi-camera displays or analytics event correlation.
• IP66 + IK10+ Rated Enclosure: IP66 means full dust ingress protection and resistance to powerful water jets — suitable for outdoor overhangs, loading docks, and car washes. IK10+ (exceeding the standard IK10 10-joule impact threshold) means the dome withstands intentional strikes. For retail and transit deployments, this combination eliminates a separate vandal-dome SKU.
• ONVIF Profile S, G, M, T Conformance: The four-profile coverage is broader than most cameras in this class. Profile G adds on-board recording support; Profile M adds metadata for analytics events. If you are integrating with a VMS that consumes motion metadata or edge-based analytics events, Profile M conformance is the field to verify — this camera covers it.
• Flexible Power Input — PoE, 24 VAC, 12 VDC: Drawing 7 W idle / 12.95 W max over PoE (802.3af-range at 7 W base), the NDE-8502-RXT fits within a standard 15.4 W port budget, so it won't force an upgrade to PoE+ switches. The additional 24 VAC and 12 VDC options give installers flexibility on legacy wiring runs where centralized PoE infrastructure hasn't been deployed.

Integration and Compatibility

The NDE-8502-RXT (often searched as NDE 8502 RXT) supports ONVIF Profile S, G, M, and T, covering the integration requirements of the major enterprise and mid-market VMS platforms. Profile G enables edge-based recording to local storage when network connectivity is interrupted — useful in distributed retail or branch-office deployments where the NVR is centrally located and WAN reliability is imperfect. Profile T adds H.265 video streaming and HTTPS/TLS transport within the ONVIF channel, which matters in deployments with formal cybersecurity requirements around camera communications. Three power input types (PoE, 24 VAC, 12 VDC) reduce integration constraints when dropping this camera into existing infrastructure.

Frequently Asked Questions

Q: What is the lens range on the NDE-8502-RXT and can it be adjusted remotely?

A: The NDE-8502-RXT uses a motorized 12–40mm PTRZ lens with pan, tilt, rotate, and zoom adjustment — all controllable without physical access to the camera head. Horizontal field of view at 40mm is approximately 36.8°; wider angles are available at shorter focal lengths within the 12–40mm range.

Q: What is the minimum illumination on the NDE-8502-RXT?

A: In color mode the minimum illumination is 0.0061 lux; in monochrome mode it drops to 0.0007 lux. These figures represent the Starlight X sensitivity spec — usable imagery in near-darkness without supplemental IR illuminators.

Q: Does the NDE-8502-RXT work with standard PoE switches, or does it require PoE+?

A: The camera draws 7 W at base and 12.95 W maximum over PoE — within the 15.4 W budget of standard 802.3af ports. PoE+ (802.3at) is not required, though it is supported if available. 24 VAC and 12 VDC power inputs are also available if PoE infrastructure is not in place.

Q: What ONVIF profiles does the NDE-8502-RXT support?

A: The NDE-8502-RXT conforms to ONVIF Profile S, G, M, and T. Profile G supports edge recording; Profile M adds analytics metadata streaming; Profile T adds H.265 and secure transport. This four-profile coverage is broader than typical mid-range cameras and supports integration with most enterprise VMS platforms.

Q: Is the NDE-8502-RXT suitable for outdoor installation?

A: Yes. The IP66 rating covers direct rain and powerful water jets, and the IK10+ impact rating exceeds the standard 10-joule vandal resistance benchmark. It is suitable for outdoor soffits, covered overhangs, and protected exterior mounting — though it does not carry an IP67 or IP68 rating for submersion scenarios.

Q: What is the dynamic range spec on the NDE-8502-RXT?

A: The NDE-8502-RXT specifies 144 dB HDR — above the 120 dB ceiling common in most commercial surveillance cameras. This wide dynamic range allows the camera to capture usable detail simultaneously in bright and dark areas of the same frame, such as an entrance lobby with a sun-facing glass facade.

Jerry Tildsen

The NDE-8502-RXT is the camera I reach for when a site has genuinely difficult light — not just 'challenging' in the marketing sense, but scenes where 120 dB WDR cameras visibly fail. At 144 dB and 0.0007 lx mono sensitivity, this unit handles the kind of mixed-lighting and near-dark scenarios that expose the limits of standard commercial domes. The PTRZ motorized lens is the other half of the value proposition: on a 20-foot ceiling above a lobby or a parking deck column, being able to finalize pan, tilt, and zoom remotely after the camera is secured is a real labor-hour saver, not a marketing checkbox.

Technical Highlights:

• 144 dB HDR: Roughly 24 dB above the 120 dB spec on mid-tier cameras — each 6 dB step doubles the captured luminance ratio, so this is a meaningful gap that shows up in actual footage at high-contrast scenes like covered entryways and parking structures with mixed natural and artificial light.
• Starlight X 0.0007 lx Mono Sensitivity: In stairwells, garages, or any space where you cannot guarantee minimum ambient light levels, 0.0007 lx means the camera is still producing recognizable imagery in conditions that are functionally unlit. That reduces or eliminates the need for supplemental IR illuminators at a lot of sites.
• PoE 7W Base / 12.95W Max: Both figures sit inside the 802.3af 15.4W port limit. On a 24-port PoE switch with a shared 150–200W power budget, this camera's draw profile is conservative enough that you are unlikely to hit port-power contention even on loaded switches.

Deployment Considerations:

• The 12–40mm focal range at F2.3 gives you a relatively narrow maximum horizontal angle (~36.8°) at 40mm — verify your scene geometry before specifying this camera for wide-area coverage. For broader views, a shorter fixed lens or multi-imager solution is the right call; this unit earns its place in corridor, choke-point, and entrance-coverage scenarios.
• The camera accepts 24 VAC and 12 VDC in addition to PoE, but verify your power supply wiring gauge and run length against the 13 W / 25 VA and 16 W maximums respectively — undersized runs will cause intermittent behavior at full load, particularly if PTRZ motor activity drives peak draw.

The NDE-8502-RXT is the right specification for transit stations, covered parking structures, and high-security retail entrances — sites where lighting unpredictability is constant and where a failed image at a critical moment is an operational and liability problem, not just an inconvenience.
