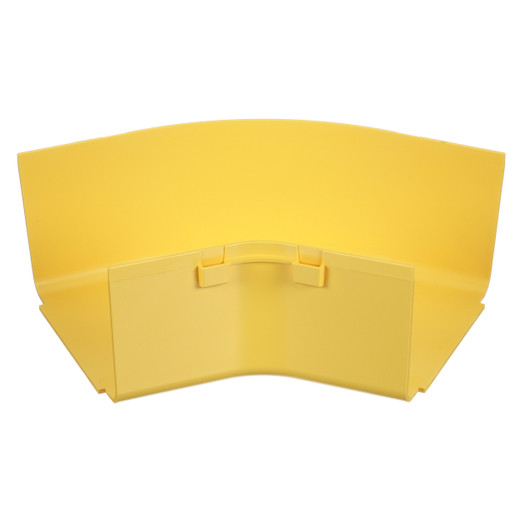

Panduit FRH456X4LBL Fitting

Overview

The Panduit FRH456X4LBL is a horizontal 45-degree fitting designed for managing pre-terminated fiber optic cable infrastructure. It provides a clean, organized pathway for fiber runs in high-density environments like data centers and telecommunications rooms, ensuring cable integrity and simplifying deployment. This fitting is part of the Opti-Core® system, facilitating rapid installation of structured cabling.

Compatibility

This fitting is engineered for use with Panduit's Opti-Core® pre-terminated fiber optic cable assemblies and associated Panduit cable management systems within data centers, telecommunications rooms, entrance facilities, and equipment distribution areas. It is designed to integrate with 6-inch by 4-inch pathway dimensions.

Installation Notes

Install this fitting by securing it to the mounting surface at a 45-degree angle to manage cable turns. Ensure the pathway dimensions (6"x4") are maintained for proper cable support and to avoid exceeding bend radius limitations. Proper tension management is critical for maintaining signal integrity on pre-terminated fiber.
