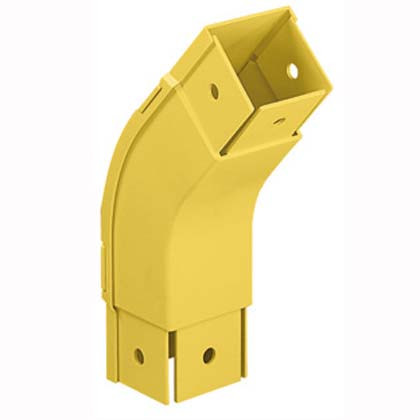

Panduit FOV452X2LYL FiberRunner 45° Outside Vertical Corner Fitting

The Panduit FOV452X2LYL is a precision-engineered 45-degree outside vertical corner fitting designed for FiberRunner 2x2 fiber routing systems in data centers and telecommunications central offices. This yellow polycarbonate/ABS fitting enables downward pathway transitions from horizontal cable runs, maintaining proper fiber bend radius while creating structured, compliant overhead or underfloor routing. When paired with the inside vertical fitting (FIV452X2LYL), it executes clean plane changes in straight horizontal pathways without compromising cable performance or installation density.

Key Features

• 45-degree outside vertical corner geometry for controlled downward pathway transitions from horizontal runs
• Polycarbonate/ABS construction delivers impact resistance and dimensional stability across -40°C to +65°C operating range
• UL 2024A listed for optical fiber cable routing assemblies, ensuring fire safety and installation code compliance
• NEBS Level 3 compliant per Telcordia GR-63-CORE for earthquake, temperature cycling, and office vibration requirements
• Yellow finish provides high-visibility color coding for pathway identification and zone segregation
• Snap-together installation integrates directly with FiberRunner 2x2 channel system without fasteners or adhesives

Data center and telecom infrastructure projects demand routing systems that protect fiber while meeting strict spatial and regulatory constraints. The FOV452X2LYL addresses the common challenge of transitioning fiber pathways from horizontal overhead trays down to vertical equipment racks or floor-level distribution points. The 45-degree angle—shallower than standard 90-degree bends—reduces pulling tension during installation and maintains minimum bend radius across all fiber types, including tight-buffered distribution cable and ribbon assemblies. The outside corner configuration mounts to the exterior of the pathway, preserving full 2×2-inch internal cross-section for cable fill capacity. This matters when routing high-density trunk assemblies or consolidating multiple lower-count cables through a single channel.

Polycarbonate/ABS composite construction delivers the mechanical properties required for permanent overhead installation. The material resists UV degradation under high-bay lighting, won't crack during seismic events (NEBS Level 3 shake-table tested), and maintains structural integrity when exposed to temperature cycling between climate-controlled spaces and plenum environments. UL 2024A listing certifies flame spread and smoke generation characteristics, allowing installation in air-handling spaces without additional enclosures. Yellow finish serves dual purposes: high visibility during maintenance operations in crowded overhead spaces, and color-coded pathway identification when segregating client networks, building systems, or security infrastructure on separate routing planes.

The FOV452X2LYL installs as part of a complete pathway transition assembly. For typical plane changes, pair this outside corner with the FIV452X2LYL inside vertical fitting to create a smooth S-curve that distributes bend stress across two 45-degree angles rather than concentrating it at a single right-angle turn. This approach is standard practice for sensitive single-mode trunk runs between floors or between overhead tray and rack entry points. The fitting ships individually packaged (carton quantity: 5 pieces), allowing project-specific ordering that matches actual corner counts without over-purchasing. Snap-lock tabs align with FiberRunner channel profiles, creating rigid connections that won't separate under cable weight or pulling loads during adds/moves/changes. RoHS compliance ensures material safety for global deployments, while NEBS certification makes this fitting the go-to choice for carrier-grade telecom installations where equipment must survive central office environmental extremes.
