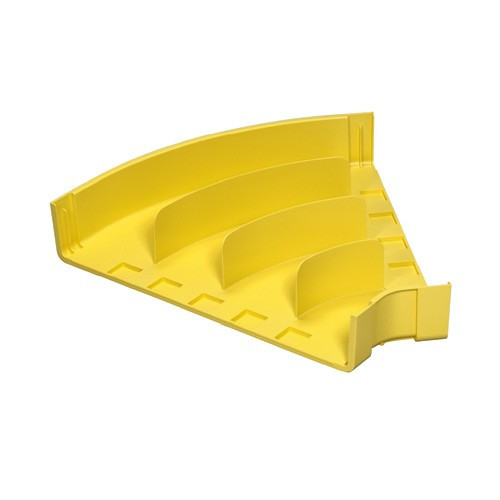

Panduit FRH4524X4LYL FiberRunner 24x4 45-Degree Horizontal Fitting

Overview

The Panduit FRH4524X4LYL is a 45-degree horizontal bend fitting engineered specifically for use within the FiberRunner 24x4 system — the large-capacity fiber routing solution found in high-density data centers and central office telecom environments. This fitting attaches directly to the 24x4 channel and compatible fittings to redirect fiber routing paths along a smooth, controlled 45-degree horizontal curve, eliminating the tight bends that cause micro-bend loss or jacket stress on high-count fiber bundles. At 28.2 inches wide and 4.48 inches tall, the FRH4524X4LYL is purpose-sized for the 24x4 channel cross-section — not a universal fitting, not an adapter — and that specificity is what makes it the correct component when you're laying out structured fiber paths across a raised-floor or overhead tray system.

Key Features

• 45-Degree Horizontal Routing Geometry: The fitting produces a true 45-degree turn in the horizontal plane, which is the most common path-change angle in structured cabling grids. Using a fitted bend (rather than forcing the channel or using field-fabricated transitions) preserves minimum bend radius compliance across the full 24x4 channel capacity — critical when you're routing hundreds of strands and cannot afford attenuation from a compressed outside arc.
• Polycarbonate/ABS Construction: The PC/ABS blend gives you the impact resistance of polycarbonate combined with the dimensional stability of ABS across typical facility temperature ranges. Compared to straight PVC, this material resists cracking under point loading and maintains its form even in environments with HVAC cycling — an important characteristic for overhead installations where ambient conditions shift seasonally.
• Designed for the FiberRunner 24x4 System: The FRH4524X4LYL is explicitly matched to the 24x4 channel and fittings family. This matters at the installation level: channel-matched fittings seat flush, maintain interior clearance for fiber management, and align the snap or fastener points correctly. Mixing in off-system fittings on a 24x4 run introduces gap points that create bend-radius violations at transitions.
• RoHS Compliance: The fitting meets RoHS requirements, which is a procurement gate for data center builds operating under EU environmental directives or US federal projects with RoHS language in the spec. No additional documentation chase needed for compliant installations.
• UL Certification for Optical Cable Routing Assemblies (up to 2024A): UL listing for optical cable routing guide assemblies through the 2024A standard is a hard requirement on many commercial and government facility cable plant specifications. Having UL-listed fittings throughout the run — not just the straight sections — keeps your full system in compliance, not just the segments the inspector is most likely to measure.
• Telcordia GR-63-CORE and NEBS Level 3 Compliance: For telecom central office deployments, GR-63-CORE covers seismic, thermal, fire, and airborne contaminant requirements. NEBS Level 3 is the full qualification tier for carrier-grade equipment. If your project spec sheet calls out NEBS Level 3, this fitting clears the bar — which eliminates a common substitution problem where installers source non-NEBS fittings and introduce a non-compliant node in an otherwise-qualified infrastructure path.
• Yellow Color Identification: The yellow finish follows standard cable management color-coding conventions for fiber infrastructure. In a populated data center tray system with multiple cable types sharing overhead routes, color-coded fittings and channels reduce mis-routing risk during adds, moves, and changes — you can visually trace the fiber path without pulling labels.
• Overall Dimensions (28.2 in W × 4.48 in H × 24.58 in L): The fitting's footprint is sized to match the 24x4 channel envelope, so clearance planning for adjacent trays or cable bundles uses the same dimensional envelope as the straight channel runs. No surprise overhangs or interference points at the bend location.
• Single-Unit Packaging (Qty 1): The FRH4524X4LYL ships as a single fitting — which matters for project-level purchasing where you're specifying exact quantities per bend location on a cable routing drawing. No forced multi-packs that inflate project cost or generate surplus inventory.

Integration & Compatibility

The FRH4524X4LYL is designed for use within the Panduit FiberRunner system, specifically the 24x4 channel family. It connects to the FiberRunner 24x4 straight sections and other 24x4 fittings (tees, crosses, vertical bends) to form a complete routed fiber infrastructure. This fitting does not cross-fit to smaller FiberRunner channels (4x4, 6x4, 12x4) — the 24x4 family is a distinct channel width. If your project calls for a different bend angle on the same channel, Panduit's fiber routing systems lineup includes additional fitting geometries for the 24x4 family.

For data center infrastructure projects, this fitting integrates naturally into structured cabling designs alongside network switches and patch distribution frames where fiber routing density and bend-radius management are primary design constraints. Review your cable management planning layout before specifying fitting quantities — each direction change on a horizontal run typically requires one fitting per 45-degree increment, and it is common to pair two FRH fittings for a 90-degree total turn.

What's in the Box

• 1x Panduit FRH4524X4LYL FiberRunner 24x4 45-Degree Horizontal Fitting

Frequently Asked Questions

Q: What channel size is the FRH4524X4LYL compatible with?

A: The FRH4524X4LYL is designed specifically for the FiberRunner 24x4 system. It connects to the 24x4 channel and 24x4-family fittings. It is not cross-compatible with the 4x4, 6x4, or 12x4 FiberRunner channel sizes.

Q: What bend angle does the FRH4524X4LYL provide?

A: The fitting provides a 45-degree horizontal turn — it redirects the fiber routing path 45 degrees from a straight horizontal line. For a 90-degree total turn, two fittings are typically used in sequence.

Q: Is the FRH4524X4LYL RoHS compliant?

A: Yes. The FRH4524X4LYL is RoHS compliant per the listed standards, making it suitable for projects operating under EU environmental directives or federal procurement specifications that require RoHS compliance.

Q: Does the FRH4524X4LYL meet NEBS Level 3 requirements?

A: Yes. The fitting is compliant with Telcordia GR-63-CORE and Network Equipment Building Systems (NEBS) Level 3 standards, which covers seismic, thermal, and environmental requirements for carrier-grade telecom central office applications.

Q: What material is the FRH4524X4LYL made from?

A: The fitting is constructed from a Polycarbonate/ABS blend, which provides impact resistance and dimensional stability suitable for data center and central office environments.

Q: How many fittings come in each package?

A: The FRH4524X4LYL is packaged as a single unit (quantity 1 per package), allowing precise per-location purchasing against a cable routing plan.

Eden Phillips

The FRH4524X4LYL is the piece most data center cable managers overlook until they're mid-installation and realize their 24x4 FiberRunner run needs a direction change that can't be field-bent. At 28.2 inches wide and certified to NEBS Level 3 and UL optical routing guide standards through 2024A, this fitting is not a generic bend — it's a system-matched component that maintains the full interior channel envelope through the 45-degree turn, which matters when you're routing high-count bundles and need to preserve minimum bend radius compliance at every point in the path.

Technical Highlights:

• NEBS Level 3 / GR-63-CORE: Full carrier-grade seismic and environmental qualification — required for central office telecom installations where non-NEBS fittings can invalidate the entire infrastructure certification, not just the non-compliant node.
• UL Listed for Optical Routing Guide Assemblies (2024A): UL listing on the fitting (not just the straight channel) keeps your full system compliant. A single non-listed fitting in a UL-specified run creates a compliance gap that inspectors will flag.
• Polycarbonate/ABS Material: PC/ABS holds dimensional tolerances better than PVC under temperature cycling in live HVAC environments, which means the fitting stays seated and gap-free at the channel junction over time — no creep-induced bend-radius violations developing after commissioning.

Deployment Considerations:

• The FRH4524X4LYL is a single-unit package — when purchasing against a detailed cable routing drawing, count each 45-degree direction change as one fitting, and budget two units per location where a 90-degree total turn is required.
• This fitting is specific to the 24x4 channel family. Verify your channel size before ordering — the FiberRunner 4x4, 6x4, and 12x4 systems use different fitting part numbers and the 24x4 fitting will not seat correctly on smaller channel widths.

The FRH4524X4LYL is the right call for high-density data center and central office fiber plants where the routing path requires horizontal direction changes and the project specification calls out UL optical routing guide compliance or NEBS Level 3 — environments where using an unqualified fitting at a single bend location is not an option.
