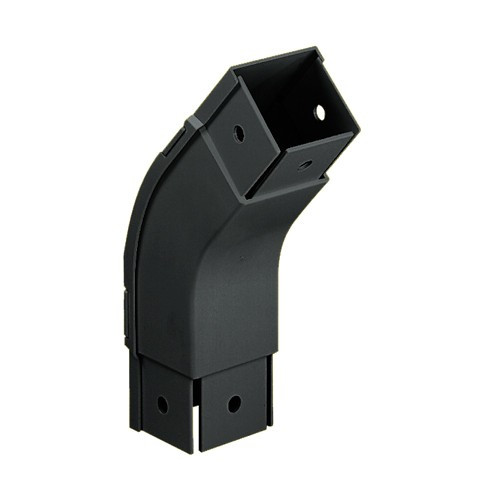

Panduit FOV452X2LBL FiberRunner 45-Degree Outside Vertical Elbow

The Panduit FOV452X2LBL is a precision-engineered 45-degree outside vertical elbow fitting designed for FiberRunner 2x2 fiber routing systems. This component enables clean plane changes in structured fiber pathways, creating downward 45-degree bends from horizontal runs in data centers and telecommunications central offices. Constructed from high-impact polycarbonate/ABS blend and certified to UL 2024A and NEBS Level 3 standards, this fitting delivers the mechanical reliability and flame performance required for mission-critical fiber infrastructure installations.

Key Features

• 45-degree outside vertical elbow for FiberRunner 2x2 fiber routing systems
• Enables downward plane changes from horizontal fiber pathways
• High-impact polycarbonate/ABS construction for long-term durability
• UL 2024A listed for fiber optic cable pathway assemblies
• Telcordia GR-63-CORE compliant and NEBS Level 3 qualified
• Black finish integrates with existing FiberRunner installations
• Mates with inside vertical 45-degree fitting (FIV452X2LBL) for complete plane transitions
• RoHS compliant for environmental compliance

Fiber pathway design in modern data centers and telecom facilities often requires vertical transitions to navigate between equipment racks, overhead ladder rack, and floor-level cable entry points. The FOV452X2LBL addresses this challenge by providing a factory-molded 45-degree outside elbow that maintains the protective enclosure integrity of the FiberRunner system throughout the bend. Unlike field-fabricated solutions or sharp 90-degree transitions that risk exceeding minimum bend radius specifications, this engineered fitting creates a gradual 45-degree angle that keeps fiber cables well within manufacturer bend-radius limits. The 7.85-inch width and 4.65-inch height profile matches the FiberRunner 2x2 channel dimensions, creating a continuous protective pathway with no gaps or exposed cable segments. When paired with the corresponding FIV452X2LBL inside vertical elbow, installers can execute complete plane changes that route fiber down from ceiling-mounted horizontal runs to vertical drops feeding equipment cabinets below.

The polycarbonate/ABS material blend delivers the impact resistance necessary for active data center environments where rack installations, equipment moves, and maintenance activities create ongoing vibration and occasional contact. This material choice also provides the flame-spread characteristics required to meet UL 2024A certification—a critical specification for pathway products installed in plenum and riser spaces where fire codes mandate specific combustion performance. The black color finish serves both functional and aesthetic purposes: it conceals dust accumulation common in data center air handling environments while maintaining a professional appearance that integrates with standard black ladder rack and cabinet installations. The snap-together mounting design allows single-person installation without fasteners, reducing labor time during initial buildout and simplifying future pathway modifications when fiber counts increase or routing changes are required. Each carton contains five elbows, providing cost-effective volume purchasing for multi-rack data center deployments or telecom central office expansions where dozens of vertical transitions may be required across a structured cabling installation.

Compliance with Telcordia GR-63-CORE and NEBS Level 3 requirements ensures this fitting meets the seismic, temperature cycling, and mechanical stress criteria mandated for telecommunications infrastructure supporting carrier-grade services. These certifications matter for installations supporting 911 services, financial transaction networks, and other applications where pathway failures can result in service outages affecting public safety or business continuity. The UL 2024A listing provides authority having jurisdiction (AHJ) acceptance during inspection, eliminating installation delays caused by non-compliant pathway components. For integrators managing fiber deployments in LEED-certified facilities, the RoHS compliance supports green building documentation requirements by confirming the absence of restricted heavy metals in the manufacturing process.
