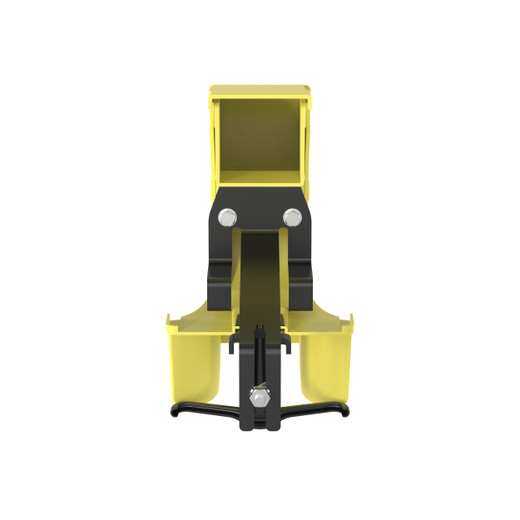

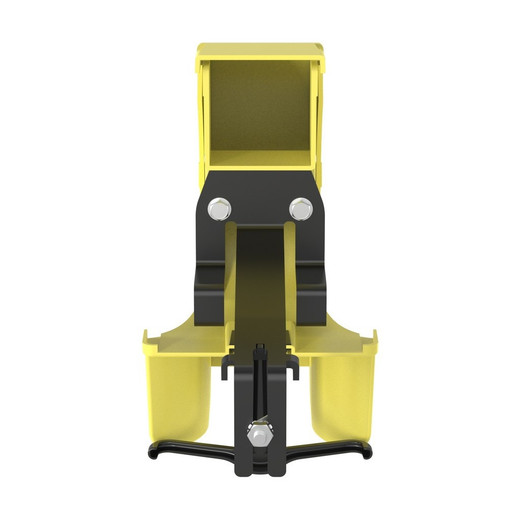

Panduit FRSPJ2X2LYL FiberRunner 2x2 Spill-Over Junction

Panduit FRSPJ2X2LYL FiberRunner® 2x2 Spill-Over Junction

The Panduit FRSPJ2X2LYL is a 2x2 spill-over junction fitting designed for fiber cable routing in data centers and telco central offices. This yellow polycarbonate/ABS fitting enables vertical or horizontal transitions within FiberRunner® pathway systems without requiring channel modification. It mounts directly to existing 4x4, 6x4, 12x4, or 24x4 FiberRunner® channels, allowing installers to add overflow routing capacity or create junction points where cable paths converge. UL 2024 listed and Telcordia GR-63-CORE Level 3 tested.

Key Features

• Direct-mount design — assembles onto 4x4, 6x4, 12x4, or 24x4 FiberRunner® channels without cutting or modifying existing installation
• Polycarbonate/ABS construction — impact-resistant material maintains integrity in high-traffic equipment room environments
• UL 2024 compliant for optical fiber cable routing assemblies and Telcordia GR-63-CORE Level 3 tested for network equipment building systems
• Yellow finish — provides visual coding for pathway identification or matches facility color-coding schemes
• 5.61" height × 8.78" length × 4.9" width footprint — compact junction point for tight overhead or underfloor spaces
• RoHS compliant — meets lead-free and restricted-substance requirements for equipment rooms

This spill-over junction addresses the common datacenter problem of needing to add vertical drops or lateral branches after the primary FiberRunner® channel is installed and populated. The no-alteration mounting means you don't need to de-cable, cut, or splice existing channels — the fitting clamps directly to the channel edge and provides a perpendicular exit point. The polycarbonate/ABS blend resists the flex fatigue that occurs when junction fittings are repeatedly opened during MAC (moves, adds, changes) operations, and the smooth interior contours maintain the 1.5" minimum bend radius required by TIA-568 for most single-mode and multimode fibers. The 2x2 aperture accommodates moderate fiber counts (typically 12-48 fibers in loose-tube or tight-buffered breakout cables) while keeping the junction profile low enough for standard 12" raised-floor plenum depths.

In telco central office deployments, this fitting is frequently used to create spill-over paths from main distribution frame (MDF) or intermediate distribution frame (IDF) FiberRunner® trunks to equipment racks when the primary channel reaches capacity. The yellow color option supports the TIA-606-B administration standard, where yellow typically designates auxiliary or secondary pathways, helping technicians quickly distinguish overflow routes from primary fiber highways during troubleshooting or augmentation work. The UL 2024 listing confirms the fitting meets flame-spread and smoke-generation limits for plenum and riser spaces, and the Telcordia GR-63-CORE Level 3 qualification means it has passed the earthquake simulation, thermal cycling, and office vibration tests required for NEBS (Network Equipment-Building System) compliance — critical for carrier-grade installations where pathway failure can disrupt revenue-generating circuits.

Panduit FiberRunner® junctions ship individually and install using the standard snap-together latching mechanism found across the FiberRunner® family, so no proprietary tools or fasteners are required. Installers working under time constraints (maintenance windows, after-hours cutovers) can add junction capacity in minutes rather than hours, and the toolless assembly reduces the risk of dropping screws or hardware into active equipment below. For projects requiring verified pathway performance, the Telcordia GR-63-CORE Level 3 test report (available through Panduit technical support) documents the specific shake-table frequencies, thermal-shock cycles, and load deflection limits the fitting survived, providing the evidence base that procurement and engineering teams need when vendor qualifications are audited during contract renewals or compliance reviews.
