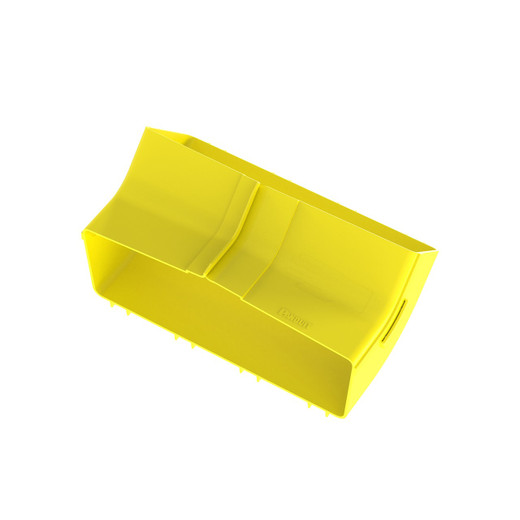

Panduit FRIV4512X4LYL FiberRunner 12x4 Inside Vertical 45-Degree Fitting

Overview

The Panduit FRIV4512X4LYL is an inside vertical 45-degree fitting for the FiberRunner® 12x4 system, engineered specifically to create controlled upward bends in horizontal fiber routing runs. Where a straight horizontal run needs to change planes — rising to a ladder rack, transitioning to a vertical cable manager, or ascending to overhead infrastructure — this fitting provides the inside half of that geometry. It pairs with the outside vertical fitting FROV4512X4LYL to complete the full 45-degree bend assembly, distributing the routing change across both components and maintaining consistent bend radius protection throughout the transition.

Sized at 8.11 inches wide and 7.35 inches tall (206mm × 186.7mm overall), this is a full-channel fitting built to match the 12x4 FiberRunner cross-section. The polycarbonate/ABS construction carries the same mechanical and compliance pedigree as the rest of the Panduit FiberRunner catalog, including UL listing under 2024A for fiber cable routing assemblies and verified compliance with Telcordia GR-63-CORE and NEBS Level 3 requirements. For anyone deploying in carrier-grade or mission-critical environments where NEBS certification is a hard requirement, that compliance is documented — not assumed.

Key Features

• 45-Degree Inside Vertical Geometry: Creates the inner radius of a 45-degree upward plane change in a horizontal fiber routing system run. Using an inside fitting alone without the matching outside fitting FROV4512X4LYL leaves the bend structurally incomplete — order both together for each transition point.
• 12x4 Channel Compatibility: Dimensioned to fit the 12x4 FiberRunner system precisely — 8.11 in. (206mm) wide, 7.35 in. (186.7mm) tall. This is not a universal fitting; it is dimensioned for the 12x4 cross-section only and will not mate correctly with 4x4 or 6x4 channel variants.
• Polycarbonate/ABS Construction: The PC/ABS blend delivers the impact resistance and dimensional stability needed in dense data center environments where cable managers get loaded and unloaded repeatedly. It won't creep or deform under sustained cable weight the way lower-grade PVC fittings can.
• UL Listed (2024A for Fiber Cable Routing): UL 2024A listing confirms the fitting meets the fire propagation and mechanical requirements for fiber cable routing assemblies — a specification requirement on most enterprise and colocation facility builds, not an optional checkbox.
• NEBS Level 3 / Telcordia GR-63-CORE Compliant: Verified against the seismic, thermal, and airborne contaminant requirements in GR-63-CORE at NEBS Level 3. If your deployment is in a carrier central office, edge facility, or any site with a NEBS mandate, this fitting meets that bar without requiring a variance.
• RoHS Compliant: Hazardous substance restrictions met — standard for global enterprise procurement and required for WEEE-regulated disposal in EU deployments.
• Yellow Color Coding: The yellow finish provides instant visual identification of fiber routing pathways in the cable management layer, reducing misrouting risk during adds, moves, and changes in dense data halls where multiple cable types share the same overhead infrastructure.
• Package Quantity of 1: Sold individually. Since each 45-degree vertical transition requires both an inside (FRIV4512X4LYL) and outside (FROV4512X4LYL) fitting, plan your bill of materials to include one of each per transition point — a single unit of this fitting does not complete a full bend on its own.

Integration and Compatibility

The FRIV4512X4LYL is designed exclusively for use within the FiberRunner® 12x4 system. Straight sections, covers, couplings, and other bend fittings in the 12x4 family connect directly without adapters. The system is used in data center and telecommunications central office environments where structured fiber infrastructure requires contained, radius-controlled routing across horizontal-to-vertical transitions.

The inside vertical fitting handles the concave side of the bend; the FROV4512X4LYL outside fitting handles the convex side. Both are required to form a complete, covered 45-degree transition. The overall length of the assembled fitting runs 13.96 inches, which is a relevant dimension for planning pathway clearances in tight ceiling or overhead spaces.

Frequently Asked Questions

Q: Does the FRIV4512X4LYL complete a full 45-degree bend on its own?

A: No. The FRIV4512X4LYL is the inside component of the vertical 45-degree transition. A complete bend requires pairing it with the outside vertical fitting FROV4512X4LYL. Plan for one of each per transition point in your routing design.

Q: Is the FRIV4512X4LYL NEBS compliant?

A: Yes. It meets the requirements for relevant tests in Telcordia GR-63-CORE and is NEBS Level 3 compliant, making it suitable for carrier central offices and other facilities with NEBS mandates.

Q: What channel size is the FRIV4512X4LYL compatible with?

A: It is designed exclusively for the FiberRunner 12x4 system. The fitting dimensions — 8.11 in. wide by 7.35 in. tall — are specific to the 12x4 cross-section and will not properly mate with 4x4 or other FiberRunner channel sizes.

Q: Is the FRIV4512X4LYL RoHS compliant?

A: Yes. The FRIV4512X4LYL is RoHS compliant, meeting EU hazardous substance restrictions for enterprise procurement and regulated disposal requirements.

Q: What is the overall length of the FRIV4512X4LYL fitting?

A: The overall length is 13.96 inches. Factor this into clearance planning when routing through tight overhead or ceiling spaces.

Q: Does the FRIV4512X4LYL carry a UL listing?

A: Yes. It is UL listed under 2024A for fiber cable routing assemblies, meeting the fire propagation and mechanical requirements typically required by enterprise and colocation facility specifications.

James Everett

The FRIV4512X4LYL is the inside-radius half of a 45-degree vertical plane change in a FiberRunner 12x4 run — a detail that catches first-time buyers off guard when they receive one fitting and wonder why the bend looks incomplete. This fitting handles the concave geometry; FROV4512X4LYL handles the convex side. Neither works alone, and every transition point in your design needs one of each. At 13.96 inches of overall length, each assembled bend also consumes more overhead clearance than it looks on paper — worth measuring before you finalize routing plans in tight ceiling plenum spaces.

Technical Highlights:

• NEBS Level 3 (GR-63-CORE): Verified compliance with Telcordia's seismic, thermal, and contaminant test suite at Level 3 — the qualification threshold for carrier and edge deployments where NEBS is a contractual requirement, not a nice-to-have.
• UL 2024A Listing: UL listing for fiber cable routing assemblies covers fire propagation and mechanical performance. Most enterprise and colo facility specs call this out explicitly; having it documented on the fitting means no variance requests during commissioning.
• PC/ABS Construction at 8.11 in. Width: The polycarbonate/ABS blend resists deformation under sustained cable load across the full 206mm channel width — relevant in 12x4 runs that are fully loaded with trunk cables and ribbon fiber bundles.

Deployment Considerations:

• Bill of materials discipline is critical here: each 45-degree vertical transition requires exactly one FRIV4512X4LYL (inside) and one FROV4512X4LYL (outside). Count your transition points and order both SKUs in matching quantities — a shortfall on either delays the close-out of the cable management layer.
• The 13.96-inch assembled length of the bend means the fitting extends nearly 14 inches along the run axis. In overhead installations with structural obstructions or cross-running conduit, verify physical clearance before finalizing the routing path.

This fitting is the right specification for carrier central office builds, edge data center deployments, and enterprise colo cages where NEBS Level 3 compliance and UL 2024A listing are written into the facility standards — environments where substituting an uncertified bend fitting creates a documentation and liability problem that outweighs any cost savings.
