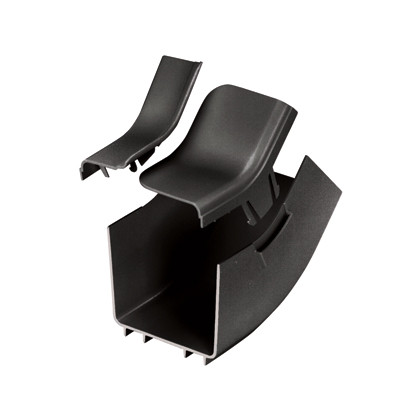

Panduit FRIV454X4LBL FiberRunner 4x4 Inside Vertical 45-Degree Fitting

Overview

The Panduit FRIV454X4LBL is a 45-degree inside vertical angle fitting for the Panduit FiberRunner 4x4 cable routing system. Designed for data centers and telecommunications central offices, this fitting creates a 45-degree upward bend out of a straight horizontal run — letting you change the elevation plane of your fiber pathway without field-fabricating awkward bends or stressing the cable. At 6.93 inches tall and 5.47 inches wide, the fitting is sized specifically for the 4x4 FiberRunner channel; pair it with the matching outside vertical fitting (FROV454X4LBL) when you need a complete plane-change transition.

If you're routing fiber in a structured fiber cable management system and need a clean 45-degree rise out of a horizontal ladder or trough, the FRIV454X4LBL handles the inside corner of that geometry. The companion outside fitting FROV454X4LBL takes the outside radius — both are required for a full vertical direction change in the 4x4 system.

Key Features

• 45-Degree Inside Vertical Geometry: Creates the inside radius of a 45-degree upward elevation change from a horizontal FiberRunner run. Using an inside fitting without the matched outside piece leaves the cable bend unsupported on the outer radius — order the FROV454X4LBL alongside this unit for a complete transition.
• Polycarbonate/ABS Construction: The PC/ABS blend balances rigidity with impact resistance — the fitting holds its shape under the weight of a loaded 4x4 channel while resisting the cracking that pure ABS can develop in environments with thermal cycling, common in active equipment rooms.
• UL Listed (UL 2024A): Listed specifically for fiber cable routing assemblies under UL 2024A, which means the material and geometry have been evaluated for use with optical fiber — not just as generic cable tray. For data center deployments where the AHJ inspects cabling infrastructure, this listing keeps the installation compliant.
• NEBS Level 3 / Telcordia GR-63-CORE Compliance: Meets the relevant test requirements for NEBS Level 3 per Telcordia GR-63-CORE, which covers seismic, thermal, and environmental stressing for network equipment building systems. If you're deploying in a carrier-grade central office or any environment mandating NEBS, this fitting qualifies — a significant differentiator from generic cable tray hardware.
• RoHS Compliant: Meets RoHS requirements, which matters for any enterprise or government deployment with environmental materials restrictions or WEEE obligations.
• Black Finish, 4x4 Channel Match: Ships in black to match the standard FiberRunner 4x4 system aesthetic. Color consistency across a structured network infrastructure run simplifies zone identification in dense cable environments.
• Package Quantity of 1, Carton Quantity of 5: Sold individually, carton-packed in fives. For large builds where you're making multiple elevation transitions, ordering in carton quantities keeps unit cost predictable and avoids delays on a second order when the build scales.

Integration & Compatibility

The FRIV454X4LBL is designed exclusively for the FiberRunner 4x4 system — it will not fit the 2x4, 4x6, or other channel sizes in the FiberRunner line. Confirm your installed channel size before ordering. The inside vertical 45-degree fitting is used in conjunction with the outside vertical 45-degree fitting (FROV454X4LBL) to complete a full 45-degree vertical direction change from a straight horizontal run. Using only the inside fitting without the outside counterpart leaves the cable unsupported through the bend radius.

FiberRunner systems are commonly deployed in data center infrastructure alongside overhead ladder rack, cable trays, and structured fiber panels. The NEBS Level 3 rating means the fitting integrates without exception into carrier-grade OSP and CO environments where that certification is a hard requirement. The RoHS and UL 2024A listings similarly satisfy the compliance gates most enterprise and government data center specs impose on cabling infrastructure components.

What's in the Box

• 1x Panduit FRIV454X4LBL FiberRunner 4x4 Inside Vertical 45-Degree Fitting

Frequently Asked Questions

Q: What channel size does the FRIV454X4LBL fit?

A: The FRIV454X4LBL is sized for the FiberRunner 4x4 system only. It will not fit 2x4, 4x6, or other FiberRunner channel sizes. Verify your installed channel dimensions before ordering.

Q: Do I need any other fittings to complete a 45-degree vertical elevation change?

A: Yes. The FRIV454X4LBL handles the inside radius of the 45-degree bend. You also need the outside vertical 45-degree fitting (FROV454X4LBL) to complete the full transition and properly support the cable through both radii of the direction change.

Q: Is the FRIV454X4LBL NEBS compliant?

A: Yes. The FRIV454X4LBL meets the requirements for relevant tests in Telcordia GR-63-CORE and qualifies for NEBS Level 3, making it suitable for carrier-grade central office and network equipment building deployments where NEBS compliance is a hard requirement.

Q: Is the FRIV454X4LBL UL listed?

A: Yes. It is UL listed under UL 2024A specifically for assemblies used in optical fiber cable routing — not generic cable tray listing. This satisfies AHJ inspection requirements for fiber routing infrastructure in commercial and data center construction.

Q: What material is the FRIV454X4LBL made from?

A: The fitting is constructed from a Polycarbonate/ABS blend. This combination provides the rigidity needed to support a loaded channel run with the impact resistance to handle thermal cycling common in active equipment rooms, without the brittleness of pure ABS.

Q: How many units ship per package?

A: The FRIV454X4LBL ships with a package quantity of 1. Carton quantity is 5, so bulk orders for multi-transition builds can be placed in carton increments.

Jerry Tildsen

The FRIV454X4LBL comes up often in data center structured cabling plans when a horizontal FiberRunner 4x4 run needs to change elevation at 45 degrees rather than a hard 90-degree turn. The 45-degree geometry puts significantly less mechanical stress on the fiber than a right-angle fitting — important in high-density runs where cumulative bend stress across multiple transitions degrades signal margin over time. At 6.93 inches tall and 5.47 inches wide, this fitting is matched precisely to the 4x4 channel profile and is not interchangeable with other FiberRunner sizes.

Technical Highlights:

• NEBS Level 3 (GR-63-CORE): Qualifies for carrier-grade central office deployments where NEBS is a hard infrastructure requirement — this is a compliance gate, not a marketing badge, and most generic cable tray hardware doesn't clear it.
• UL 2024A Listed: Listed specifically for optical fiber cable routing assemblies, not generic cable tray — the distinction matters when the AHJ pulls plans and checks for fiber-specific compliance on the routing infrastructure.
• PC/ABS Construction: The polycarbonate/ABS blend handles thermal cycling in active equipment rooms better than pure ABS, which can embrittle and crack at fitting joints under repeated heat cycling — a failure mode that causes channel misalignment in multi-year deployments.

Deployment Considerations:

• This fitting handles only the inside radius of the 45-degree vertical transition — the outside vertical fitting FROV454X4LBL is required to complete the direction change. Ordering just the FRIV454X4LBL and expecting a full bend is the most common configuration error on first installs.
• The 4x4 channel size is non-negotiable — the fitting will not adapt to 2x4 or 4x6 FiberRunner channels. Measure your installed channel before spec'ing this part into a BOM for a retrofit project.

The FRIV454X4LBL is the right call for structured fiber routing in carrier central offices and enterprise data centers where NEBS Level 3 and UL 2024A compliance are written into the infrastructure spec — environments where substituting a generic cable tray fitting would fail the compliance audit regardless of physical fit.
