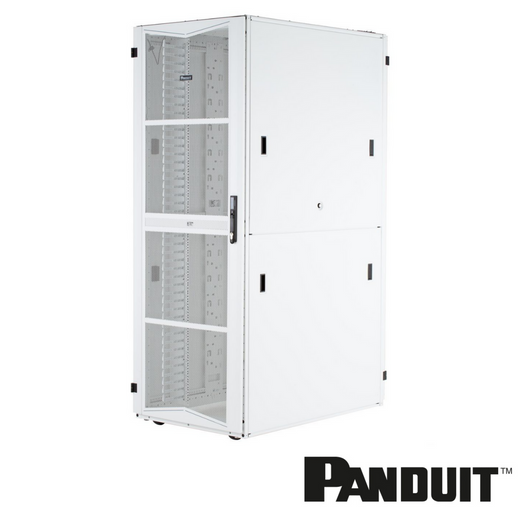

Panduit XG-SPFS522B FlexFusion™ 52RU Network Cabinet

The Panduit XG-SPFS522B is a full-height, single-sided 52RU network cabinet engineered for high-density data center and telecommunications deployments where structural integrity and airflow management are non-negotiable. Built on the FlexFusion™ platform, this cabinet delivers 3,000 lbs static load capacity and 2,250 lbs dynamic load capacity—sufficient for fully populated configurations of blade servers, UPS systems, or dense switch fabrics. EIA-310-E and IEC 60297 rail compliance ensures universal 19-inch equipment compatibility, while UL 2416 certification meets the fire and seismic safety standards required by enterprise data centers and colocation facilities. Black powder-coat finish integrates with standard raised-floor and slab-on-grade environments.

Key Features

• 52RU vertical mounting space accommodates full-height switches, routers, patch panels, and server chassis in a single enclosure
• 3,000 lbs static / 2,250 lbs dynamic load capacity supports heavily populated racks without supplemental floor reinforcement in most commercial installations
• Steel construction with welded frame corners and reinforced mounting rails eliminates flex under load and maintains EIA-310-E hole-pattern alignment across all 52 rack units
• FlexFusion™ modular accessory ecosystem allows field installation of cable managers, PDUs, airflow baffles, and brush pass-throughs without drilling or permanent modification
• Full front and rear vertical cable management channels integrated into frame design keep horizontal cable runs clear of equipment intake and exhaust zones
• Lockable front and rear doors with perforated steel or mesh options (model-dependent) balance physical security with passive airflow when active containment systems are not deployed
• UL 2416 listing confirms compliance with short-circuit, grounding, and seismic anchoring requirements for U.S. commercial occupancies
• Black powder-coat finish resists corrosion in humidity-controlled environments and matches standard data center aesthetics

The XG-SPFS522B frame uses 14-gauge steel uprights and cross-members with welded corner joints, eliminating the rack twist and sway common in bolt-together designs when populated with heavy equipment. The 3,000 lbs static load rating assumes even weight distribution across mounting rails and proper floor anchoring per seismic Zone 4 requirements—critical for California, Pacific Northwest, and similar high-risk regions. Dynamic load capacity of 2,250 lbs accounts for rolling installations on casters or when the cabinet is moved on a pallet jack during staging. Mounting rails conform to EIA-310-E 0.625-inch hole spacing and accept both square-hole cage nuts and 10-32 threaded hardware, so integrators can deploy a mix of Dell, HPE, Cisco, and generic 19-inch equipment without adapter brackets. The cabinet ships with removable side panels secured by captive quarter-turn fasteners, allowing technicians to access side-mounted cable trays or perform cross-cabinet cabling without removing adjacent racks from a row.

Airflow architecture in the XG-SPFS522B prioritizes passive convection paths when active containment is not deployed. The front door accepts perforated steel panels with 64% open area or expanded metal mesh, depending on physical security requirements—perforated doors meet SSAE-16 visibility mandates for colocation cages, while mesh doors maximize airflow in private data halls where intake temperatures approach ASHRAE A3/A4 limits (up to 40°C). Rear door options include similar perforations or solid panels for exhaust containment installations where hot-aisle baffles attach directly to the cabinet frame. Internal vertical cable management channels run the full 52RU height on both sides of the equipment mounting plane, isolating fiber and copper patch cords from the front-to-rear airflow path and preventing cable sag into fan intake zones on 1RU switches or blade enclosures. The FlexFusion accessory rail system spans the top, middle, and bottom of the frame interior, accepting toolless PDU brackets, horizontal cable managers, and airflow blockers without requiring field drilling—critical in leased colocation space where cabinet modification voids facility agreements. Bottom cable entry accommodates raised-floor grommets or slab-penetration conduits up to 6 inches in diameter, and the removable top panel supports overhead ladder-rack integration or plenum return ducts in non-raised-floor builds.

The XG-SPFS522B is the standard-depth variant in Panduit’s FlexFusion line, designed for general-purpose IT and telecom applications where equipment depth does not exceed 30 inches. For staging areas or edge deployments requiring seismic bracing, the frame includes pre-drilled anchor points in the base rail matching the NEBS GR-63-CORE four-point pattern—drill templates and expansion anchors sold separately. UL 2416 certification confirms the cabinet meets the same electrical safety and flammability standards as the equipment it houses, a requirement for insurance underwriting in commercial real estate and for passing NFPA 75 inspections in jurisdictions that enforce the Standard for the Fire Protection of Information Technology Equipment. Integrators deploying this cabinet in rows should verify that aisle width meets the 42-inch minimum for ADA compliance when doors are fully open, and that HVAC capacity accounts for the aggregate heat load of a fully populated 52RU configuration—typically 8-12 kW in dense compute environments or 3-5 kW in passive network aggregation roles.
