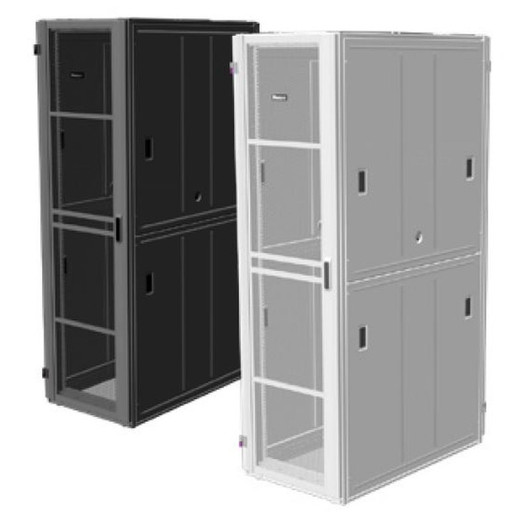

Panduit XG75229BS00Y0 FlexFusion™ 52RU Network Cabinet

The Panduit XG75229BS00Y0 is a 52RU FlexFusion™ network cabinet engineered for high-density data center and telecommunications deployments where equipment load, thermal management, and standards compliance converge. Built on a 700mm-width steel frame with 3,000 lbs static load capacity, this cabinet supports heavy blade servers, high-port-count switches, and stacked UPS systems without supplemental floor reinforcement in most commercial installations. The integrated thermal containment blanking system (TCBS) and left-right PDU mounting rails address two persistent deployment challenges: preventing recirculation airflow that undermines cooling efficiency, and routing power distribution without sacrificing usable rack space.

Key Features

• 52RU vertical mounting space — accommodates full-height server stacks, network aggregation layers, and storage arrays in a single enclosure
• 3,000 lbs static / 2,250 lbs dynamic load capacity — handles enterprise blade chassis, loaded disk shelves, and redundant power infrastructure without floor plate upgrades
• 700mm width frame — provides clearance for deep switches (450mm+), cable management arms, and rear-mounted PDUs in converged infrastructure builds
• EIA-310-E, IEC 60297, and UL 2416 compliance — meets North American, European, and international rack equipment standards for global deployments
• Integrated TCBS (Thermal Containment Blanking System) — eliminates hot aisle / cold aisle mixing by sealing unused RU slots, critical for ASHRAE-compliant cooling in high-density rows
• Left-right PDU mounting rails — supports dual-path power distribution without consuming front rack space or blocking rear equipment access
• Black powder-coated steel construction — resists corrosion in humidity-controlled environments and maintains finish integrity through repeated equipment swaps
• FlexFusion™ modular design — integrates with Panduit’s ecosystem of cable managers, thermal doors, and airflow optimization accessories for scalable builds

Load capacity defines the boundary between a cabinet that holds equipment and one that survives a 10-year refresh cycle. The XG75229BS00Y0’s 3,000 lbs static rating translates to approximately 57 lbs per RU when fully populated — enough headroom for a mix of 2U blade enclosures (80-120 lbs each), 1U ToR switches (15-25 lbs), and 3U battery backup modules (60-90 lbs) without approaching structural limits. The 2,250 lbs dynamic rating covers in-service loading: rolling the cabinet across a raised floor during a hot aisle reconfiguration, or repositioning it on a loading dock during an initial buildout. Steel construction distributes point loads across the frame rather than concentrating stress at mount points, a distinction that matters when mounting 10GbE switches with 48+ copper ports (where cable bundle weight can exceed the switch itself) or when stacking multiple 4U storage shelves loaded with 3.5" drives. The 700mm width accommodates equipment depth up to approximately 600mm when accounting for rear cable management arms and front airflow clearance — critical for newer spine switches and hyperconverged appliances that exceed the 450mm depth of legacy gear.

Standards compliance addresses three deployment contexts. EIA-310-E defines the 19" rack unit spacing and hole pattern that most IT equipment assumes; IEC 60297 extends this to metric measurements and European equipment; UL 2416 certifies the cabinet’s structural and electrical safety for installation in occupied buildings under National Electrical Code jurisdiction. For integrators bidding government contracts or building out multinational facilities, this tri-standard compliance means one cabinet SKU works across US federal sites (requiring UL), European telecom hubs (requiring IEC), and Asia-Pacific data centers (accepting either). The integrated TCBS blanking system matters in facilities where cooling represents 30-40% of operating cost: by sealing the 15-20 unused RU slots that typically exist even in “full” racks (due to equipment height mismatches), the system forces conditioned air through equipment intakes rather than allowing it to bypass into the hot aisle. In a 20-cabinet row, this can reduce cooling load by 8-12% according to ASHRAE TC 9.9 thermal guidelines. The left-right PDU rails support zero-U power distribution — meaning PDUs mount vertically along the cabinet sides rather than consuming front-facing RU slots — and the dual-rail design enables A/B power feeds for redundant circuits without custom mounting brackets.

FlexFusion™ positioning differentiates this cabinet from generic open-frame racks: it’s the anchor component in Panduit’s modular containment architecture, designed to accept snap-in vertical cable managers (for organizing fiber trunk groups without zip ties), hinged thermal doors (that add front-to-back containment without permanent aisle enclosures), and seismic bracing kits (required in California Title 24 and IBC Seismic Design Category D/E zones). For integrators standardizing on Panduit structured cabling — particularly in edge data centers where the same team installs copper plant, fiber backbone, and rack infrastructure — this cabinet closes the loop between pathway and equipment hosting. The black finish avoids the visual mismatch that occurs when mixing manufacturers in customer-facing telecom spaces or corporate data centers with glass-wall sight lines.
