StarTech ST121UTPEP VGA Signal Extender over Cat5/Cat5e/Cat6

Overview

The StarTech ST121UTPEP is a passive VGA extender kit designed to push a VGA display signal up to 80 meters (263 feet) over standard Cat5, Cat5e, or Cat6 structured cabling — eliminating the need to run costly, stiff VGA cable across long distances. If you have an existing structured cabling infrastructure and a legacy VGA source (a desktop workstation, a standalone DVR, an industrial PC with no HDMI output), this unit lets you drive a remote display without signal degradation visible at typical viewing distances.

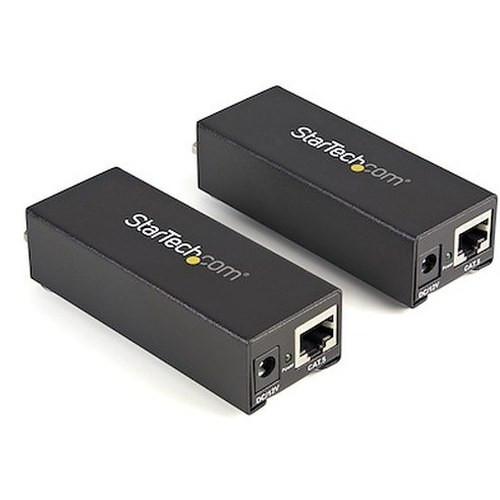

The kit ships as two units: a local transmitter that connects to your VGA source and a remote receiver that connects to the display. Both communicate over a single RJ-45 cable run. At 50 meters (164 feet), the extender supports full 1920x1200 resolution — enough for a widescreen monitor running a dashboard or surveillance display. Push it to the maximum 80-meter run and the supported resolution steps down to 1280x1024, which remains perfectly usable for most secondary display and signage applications.

Key Features

• 80m (263ft) maximum range over Cat5: Covers a standard floor plate or warehouse aisle without pulling new cabling. If your Cat5 runs are already in conduit, this extender makes use of them immediately — no new cable infrastructure required.
• 1920x1200 at 50m (164ft): Delivers widescreen resolution at distances that cover most mid-size facility deployments. A 50-meter run handles most in-building drops from an IDF closet to a wall-mounted display.
• 1280x1024 at 80m (263ft): At the full rated distance, you still get a sharp 1.3MP-equivalent signal — more than adequate for digital signage, operator workstations, or secondary monitoring positions.
• Standard RJ-45 connectors on both units: Terminates to the same patch panels and keystone jacks already in your facility. No proprietary cabling, no special connectors — just standard structured wiring.
• 15-pin HD D-Sub (VGA) on both ends: Connects directly to any VGA-equipped source or display. No adapters needed for VGA-native equipment.
• 7.2W total power consumption: The system draws only 7.2 watts at 12V DC, 0.6A. Low enough to run from a compact power supply without dedicated circuit planning. The power brick won't add meaningful load to a standard outlet strip.
• Compact form factor — 5.4 x 3.9 x 1.0 inches: Both units sit flat on a desk surface, clip behind a monitor mount, or tuck into a small equipment shelf without occupying rack space. At 9.3 oz per unit, there's no structural concern for surface mounting.
• 2-year manufacturer warranty: Provides a reasonable coverage window for a passive signal extension device installed in a fixed location.

Integration and Compatibility

The ST121UTPEP is source-agnostic — any device with a standard 15-pin VGA output (desktop PCs, industrial controllers, DVRs, video processors, older workstations) connects directly. On the display side, any VGA monitor or projector works without configuration. There are no drivers to install and no software components — signal extension is purely hardware-based.

One practical consideration: this extender carries the analog VGA signal, not digital HDMI or DisplayPort. If your source outputs HDMI or DisplayPort natively, you would need a separate active converter before the ST121UTPEP transmitter. Also note that the Cat5 run must be a dedicated point-to-point cable — this is not a network-bridged solution and the RJ-45 connector does not share bandwidth with a LAN switch port.

For deployments where multiple displays need to be driven from a single source, pairing the ST121UTPEP with a VGA distribution amplifier upstream of the transmitter is the correct approach — this unit is a one-to-one extender only.

Frequently Asked Questions

Q: What is the maximum cable distance supported by the ST121UTPEP?

A: The ST121UTPEP supports a maximum cable run of 80 meters (approximately 263 feet) over Cat5, Cat5e, or Cat6 cabling, at a resolution of 1280x1024. For higher resolution (1920x1200), the maximum supported distance is 50 meters (164 feet).

Q: Does the ST121UTPEP require any software drivers or configuration?

A: No. The ST121UTPEP is a hardware-only signal extender with no drivers, firmware, or software configuration required. Connect the local unit to your VGA source, run Cat5/Cat5e/Cat6 to the remote unit, and connect the remote unit to your display.

Q: Can the ST121UTPEP share the Cat5 cable run with an active network connection?

A: No. The Cat5 run between the local and remote units must be a dedicated point-to-point cable. It cannot be shared with a live LAN switch port or any other network device.

Q: What resolution does the ST121UTPEP support at the full 80-meter distance?

A: At 80 meters (263 feet), the ST121UTPEP supports 1280x1024 resolution. At 50 meters (164 feet), it supports the higher 1920x1200 resolution.

Q: What power supply does the ST121UTPEP use?

A: The ST121UTPEP operates at 12V DC, 0.6A, consuming 7.2 watts total. A compatible power adapter is required — verify that the included or sourced power supply meets these ratings.

Q: What is the warranty on the ST121UTPEP?

A: The ST121UTPEP carries a 2-year manufacturer warranty.

Marty Allison

The resolution-distance tradeoff in the ST121UTPEP is the spec that determines whether this unit fits your run or doesn't — 1920x1200 tops out at 50 meters, and if your cable run is 55 meters, you're dropping to 1280x1024 whether you plan for it or not. I've seen integrators spec this unit without measuring the actual cable run first, then wonder why the display looks soft. Measure your run before you commit to the ST121UTPEP at widescreen resolution.

Technical Highlights:

• Dual resolution tiers: 1920x1200 at 50m is a legitimate widescreen signal — suitable for a dashboard monitor or operator display. The step-down to 1280x1024 at 80m is still a 1.3MP signal that reads cleanly on a 19-to-22-inch monitor at normal viewing distances.
• 7.2W at 12V DC: The power draw is low enough that you can run this from a shared UPS outlet without meaningfully affecting runtime calculations. At 0.6A, it won't stress a standard 1A supply.
• Compact physical footprint: At 5.4 x 3.9 x 1.0 inches and 9.3 oz, both the local and remote units mount cleanly behind a display or on a small shelf — no rack space consumed, no cable management headache at the display end.

Deployment Considerations:

• The Cat5 run must be point-to-point and dedicated — do not attempt to pass this signal through a patch panel that also carries live LAN traffic, as signal interference is likely.
• This is a VGA-only extender. If your source is HDMI or DisplayPort, you will need an active digital-to-VGA converter upstream of the local unit — that conversion introduces its own latency and compatibility variables, so verify your source output before purchasing.

The ST121UTPEP fits cleanly in industrial facility and warehouse office environments where legacy VGA workstations or DVR outputs need to feed a remote wall display across a structured Cat5 infrastructure — specifically where runs fall under 50 meters and widescreen resolution matters.
