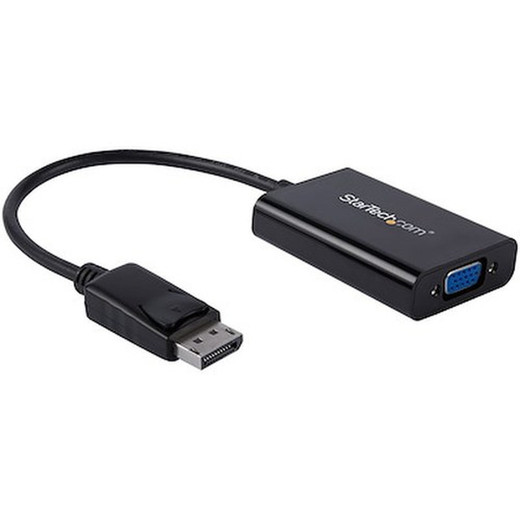

StarTech DP2VGAA DisplayPort to VGA and 3.5mm Audio Active Adapter

Overview

The StarTech DP2VGAA is an active DisplayPort to VGA adapter with a discrete 3.5mm audio output — a practical solution when you need to drive a legacy VGA display from a modern DisplayPort source without sacrificing audio routing. At 11.8 inches overall and with a 7.2-inch cable, it gives you just enough physical flexibility to reach panel-mount connectors on the back of a workstation or KVM switch without forcing an awkward bend at the port. This matters in dense rack environments or wall-mounted operator stations where port spacing is tight.

Unlike passive adapters that rely on the source GPU to output an analog signal natively, the DP2VGAA uses active conversion circuitry — meaning it works with any standard DisplayPort output, including those that do not support dual-mode (DP++) analog passthrough. That covers a wide range of modern workstations, laptops, and thin clients where passive adapters simply fail.

Key Features

• Active conversion circuitry: Passive DP-to-VGA adapters only work when the source card supports DP++ analog output. The DP2VGAA's active design handles the digital-to-analog conversion internally, so it works across a broader range of hosts — including many enterprise laptops and workstations that have dropped DP++ support entirely.
• 1920x1200 / 1080p maximum resolution: Supports full HD and WUXGA, covering the full native resolution of virtually every VGA-input monitor still in active deployment — from 19-inch operator displays to 24-inch widescreen panels. You won't hit a resolution ceiling on legacy hardware.
• Discrete 3.5mm audio output: The audio signal is broken out to a separate mini-jack rather than embedded in the video path. That means you can route audio independently to a headset, desktop speaker, or intercom system without needing a secondary audio adapter or USB sound card — useful at security operator stations running both a display and a headset.
• USB-powered operation: The active conversion chip draws power from a standard USB port rather than requiring an external power supply. No wall adapter, no separate cable management — plug it into any available USB-A port on the host. Relevant in space-constrained operator consoles or laptop docks where adding a power brick is not practical.
• 7.2-inch cable with compact body: The short integrated cable (7.2 in) reduces port stress compared to a rigid plug adapter while keeping the overall footprint small enough to avoid blocking adjacent ports. The 1.7 in × 0.7 in cross-section means it fits in standard cable management channels.
• 0°C to 70°C operating range: Rated for standard indoor environments including server rooms, control rooms, and office deployments. Not rated for outdoor or industrial temperature extremes — deploy inside conditioned spaces accordingly.
• 3-year manufacturer warranty: StarTech backs the DP2VGAA with a 3-year warranty, which is meaningful for adapters that tend to stay installed and forgotten in operator workstations for years at a time. Replacement cycles on legacy display infrastructure are long — having a multi-year warranty on the adapter matches that reality.
• 1.6 oz weight: Light enough that there is no measurable strain on the DisplayPort connector even when the cable hangs free — no support bracket or cable clip required in most installations.

Integration and Compatibility

The DP2VGAA is designed for any host with a standard DisplayPort output — including full-size DP and, with an appropriate upstream adapter, Mini DisplayPort sources. On the display side, it terminates in a standard HD-15 (VGA) female connector, compatible with any VGA monitor, projector, or KVM input. The 3.5mm audio jack carries stereo analog audio from the host's DP audio stream and connects directly to any standard mini-jack input.

In security and operations center contexts, this adapter is commonly used to extend the life of existing VGA operator monitors when migrating workstations to newer GPU architectures that no longer include native VGA outputs. It is also a clean solution for driving analog display inputs on older video surveillance workstations or monitoring consoles where replacing the display is not in the budget cycle. For environments running multiple-display setups, pair with a KVM switch that supports VGA inputs to consolidate operator workstations without replacing display hardware.

Note that VGA is an analog signal standard — maximum image quality is determined by the monitor's analog input circuitry and cable quality. At 1920x1200, a short, high-quality VGA cable is recommended to avoid signal degradation. The DP2VGAA handles the digital-to-analog conversion; cable quality from the adapter to the monitor determines final image sharpness at full resolution.

Frequently Asked Questions

Q: Does the DP2VGAA work with DisplayPort sources that do not support DP++ (dual-mode)?

A: Yes. The DP2VGAA is an active adapter — it performs the digital-to-analog conversion internally rather than relying on the source GPU to output an analog signal. This makes it compatible with DisplayPort outputs that do not support DP++ passthrough, which passive adapters require.

Q: What is the maximum resolution supported by the DP2VGAA?

A: The DP2VGAA supports up to 1920x1200 (WUXGA) and 1920x1080 (1080p) — sufficient for the native resolution of virtually all VGA monitors currently in service.

Q: Does the DP2VGAA require a separate power supply?

A: No. It draws power from a USB port on the host system. A USB-A port must be available on the host; no external power adapter is needed.

Q: What is the warranty on the DP2VGAA?

A: StarTech covers the DP2VGAA with a 3-year manufacturer warranty.

Q: Can the 3.5mm audio output be used independently from the VGA output?

A: The audio and video outputs are physically separate connectors — the 3.5mm jack and VGA connector are discrete terminations on the adapter. You can connect each to a different device, though both signals originate from the same DisplayPort source input.

Q: What are the operating temperature limits for the DP2VGAA?

A: The adapter is rated for operation from 0°C to 70°C (32°F to 158°F), suitable for standard indoor conditioned environments. Storage temperature range is -10°C to 55°C.

Karl Wilson

The spec that matters most when qualifying the DP2VGAA for a deployment is the active conversion — not the resolution cap. I've seen passive adapters fail silently on newer workstation GPUs because the DisplayPort output doesn't assert the DP++ dual-mode pin, and you end up with a black screen and a support call. The DP2VGAA handles that conversion internally, which is why it belongs in any toolkit where you're connecting to legacy VGA displays from current-generation hardware.

Technical Highlights:

• Active conversion: Works on DisplayPort outputs without DP++ support — eliminates the compatibility dead zone that trips up passive adapters on modern GPUs and thin clients.
• 1920x1200 resolution ceiling: Matches or exceeds the native resolution of virtually every VGA monitor still in active operator-station use — no compromise on image sharpness for HD or WUXGA panels.
• Discrete 3.5mm audio output: Breaks audio out independently of the video path — lets you run a headset or desktop speaker without a separate USB audio dongle, keeping the operator console clean.

Deployment Considerations:

• The 7.2-inch integrated cable gives useful physical clearance at the DisplayPort port — important on wall-mounted operator stations or in rack-mount workstations where a rigid plug-style adapter would stress the connector under cable pull.
• VGA signal quality at 1920x1200 is sensitive to cable length and quality between the adapter and the monitor. Keep the VGA run short — ideally under 6 feet — and use a shielded cable to avoid softening at full resolution.

This adapter is the right call for security operations centers or dispatch workstations migrating to new GPU-based workstations while retaining existing VGA monitor infrastructure — where replacing displays isn't justified until the next full refresh cycle.
