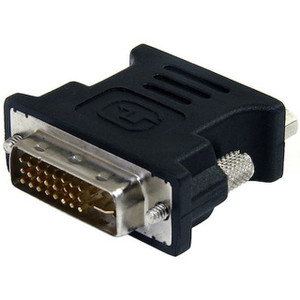

StarTech DVIVGAFM DVI-I to VGA Passive Display Adapter

Overview

The StarTech DVIVGAFM is a compact passive adapter that converts a DVI-I (29-pin) output to a standard VGA (15-pin HD D-Sub) input. It requires no drivers, no external power, and no active circuitry — the analog component of the DVI-I signal is passed directly to the VGA connector. At 2.4 in x 1.6 in x 0.6 in and just 1.2 oz, it disappears behind a monitor or at the back of a video card without adding cable stress or bulk. If you have a video card with a DVI-I port and a VGA-only display — or the reverse — this is the direct solution.

It is important to understand one hard constraint up front: DVI-I carries both digital (DVI-D) and analog (VGA-compatible) signals on the same 29-pin connector. The DVIVGAFM taps the analog portion only. This means it will not work with DVI-D-only sources, which lack the analog pins entirely. Confirm your source card actually outputs DVI-I before ordering.

Key Features

• Passive Analog Conversion: Because the DVIVGAFM is a passive adapter, there is no active chip inside. That means zero signal processing delay, no driver installation, and nothing to fail electronically. Plug it in and it works — relevant in kiosk, signage, and industrial display environments where reliability over years matters more than features.
• DVI-I 29-Pin Connector (Side A): The 29-pin DVI-I female connector accepts the full DVI-I signal from a graphics card or video source. The four analog pins surrounding the flat blade are what make this adapter functional — those pins carry the VGA-equivalent analog signal that feeds the output side.
• VGA 15-Pin HD D-Sub Connector (Side B): The output is a standard VGA male connector compatible with virtually any VGA monitor, projector, KVM switch, or legacy display manufactured in the last 25 years. If your deployment still has VGA endpoints — and many commercial and industrial environments do — this adapter closes the gap without replacing hardware.
• Nickel-Plated Connectors: Nickel plating on both connectors resists corrosion and oxidation over time. In environments where adapters get swapped repeatedly — AV racks, training rooms, conference rooms, equipment carts — plated contacts maintain a clean connection longer than bare copper alternatives.
• Compact Form Factor (2.4 in x 1.6 in x 0.6 in, 1.2 oz): The adapter adds negligible length to any cable run and won't torque a VGA port when used with a standard VGA cable. At 1.2 oz it will not stress the DVI-I connector on the source device.
• Lifetime Warranty: StarTech covers the DVIVGAFM with a lifetime warranty. For passive adapters used in fixed installations — surveillance workstations, digital signage controllers, operator consoles — this means you are not tracking a warranty expiration date on a $10 part.

Integration and Compatibility

The DVIVGAFM fits any scenario where a DVI-I video source must drive a VGA display. Common deployment contexts include: connecting a workstation or server with a DVI-I graphics output to a legacy VGA monitor; driving a VGA projector from a DVI-I laptop docking station; extending compatibility at a KVM switch that has VGA ports on the display side. It is also used in security and surveillance workstation builds where older analog monitors remain in service alongside newer IP-based management software running on a DVI-I-equipped workstation. For more display connectivity options, browse the full cables and connectors category.

This adapter does not perform any signal scaling or resolution conversion — it passes whatever analog signal the source generates. Resolution compatibility is determined entirely by the source graphics card and the connected VGA display, not by the adapter itself. Maximum resolution is constrained by the VGA standard (typically up to 1920x1200 at the high end, depending on cable length and monitor capability).

If your source is DVI-D (digital only, no analog pins), this adapter will not function. DVI-D connectors lack the four surrounding analog pins and will not mate correctly with a DVI-I female in any case. Verify connector type before purchase.

Frequently Asked Questions

Q: Will the DVIVGAFM work with a DVI-D source?

A: No. The DVIVGAFM is a passive adapter that relies on the analog signal pins present in DVI-I. DVI-D connectors carry only digital signals and lack the analog pins required. The connector will not physically mate correctly with a DVI-D plug in most cases.

Q: Does the DVIVGAFM require any drivers or software?

A: No drivers or software are required. The adapter is entirely passive — it makes a direct electrical connection between the analog pins of the DVI-I connector and the VGA output. The operating system sees it as a standard analog display connection.

Q: What is the warranty on the DVIVGAFM?

A: StarTech covers the DVIVGAFM with a lifetime warranty.

Q: What is the maximum resolution supported?

A: Resolution is determined by the source graphics card and the VGA display — not the adapter itself. The VGA standard typically supports up to 1920x1200, but actual output depends on the capabilities of both connected devices and cable quality.

Q: Can this adapter be used in the reverse direction — VGA source to DVI-I display?

A: No. The DVIVGAFM is directional: DVI-I female on the source side, VGA male on the display side. It is designed for use with a DVI-I video output driving a VGA input device.

Q: Is any external power required?

A: No. The DVIVGAFM is fully passive and draws no power. There is no USB power connection, no wall adapter, and no inline power brick required.

Eden Phillips

The DVIVGAFM comes up regularly in surveillance workstation builds where an operator console or DVR workstation has a DVI-I graphics output but the facility's existing monitors are VGA-only. The passive design is the right call here — no active chip means no compatibility surprises with different GPU vendors, and the lifetime warranty means this is a fit-and-forget part that won't generate a service ticket.

Technical Highlights:

• Passive Architecture: No active conversion chip means zero latency introduced and no driver dependencies — the graphics card handles everything, exactly as it would with a direct VGA connection.
• Nickel-Plated Contacts: Corrosion resistance matters in equipment rooms with variable humidity; nickel plating extends connector life compared to bare copper, particularly where the adapter stays installed for years at a time.
• Compact Dimensions (2.4 x 1.6 x 0.6 in, 1.2 oz): Light enough that it won't lever stress onto a DVI-I port, even if the downstream VGA cable has some stiffness to it — an easy installation point to overlook in tight rack environments.

Deployment Considerations:

• Verify your video source outputs DVI-I, not DVI-D. DVI-D sources have no analog pins, and the DVIVGAFM will not function or even physically connect correctly with a DVI-D plug.
• Resolution ceiling is VGA-standard — plan accordingly if the downstream display is being used for high-density VMS grid views; at long cable runs, analog VGA signal degradation can affect image sharpness at higher resolutions.

Best fit for operator workstations, kiosk controllers, and industrial PCs in fixed security or automation installations where VGA monitors remain in service and the source GPU carries DVI-I output — the DVIVGAFM closes that gap with no configuration overhead and no ongoing maintenance.
