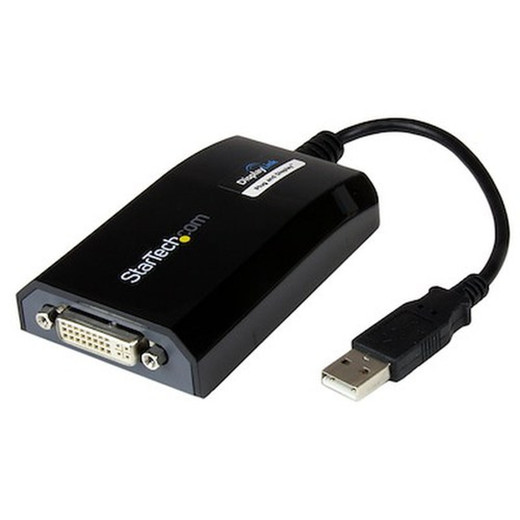

StarTech USB2DVIPRO2 USB 2.0 to DVI External Video Adapter

Overview

The StarTech USB2DVIPRO2 is a compact USB 2.0 to DVI-I external graphics adapter built for workstations and operator consoles that need an additional monitor without opening the machine for a discrete GPU. Powered entirely by the host USB port — no external supply, no cable clutter — it connects in seconds and hands you a fully independent display output via DVI-I at up to 1920x1200. The onboard DisplayLink DL-195 chipset handles all rendering offload, meaning the host GPU stays free for primary displays. If you're running a security operations center, a trading desk, or a multi-panel control room where five independent views matter, USB2DVIPRO2 stacks into that workflow without any slot conflicts or driver wars with your primary graphics card.

Key Features

• 1920x1200 Maximum Digital Resolution: At full WUXGA output, you get more vertical pixels than standard 1080p — useful for displaying a tall VMS layout or a full-page document alongside video feeds without letterboxing. If your monitor tops out at 1080p, the adapter handles that too; resolution scales down cleanly.
• DisplayLink DL-195 Chipset: The DL-195 is a mature, well-supported silicon that offloads rendering through the USB connection, bypassing the host GPU entirely. This means adding a fifth display doesn't degrade your primary GPU's frame rates — the USB bus carries compressed display data, not raw video frames.
• USB 2.0 Interface (Type-A): USB 2.0 bandwidth is sufficient for desktop application display and standard-definition video at this resolution — but this is not a gaming or high-frame-rate video adapter. Plan accordingly: static dashboards, reference windows, and web-based VMS views are squarely in its comfort zone.
• USB-Powered at 5V DC: Draws power directly from the host port at 5V DC. No AC adapter needed, which matters for deployments where outlet count is already maxed. Confirm your USB host controller can spare the required current — systems with many devices on a single root hub may need a powered hub inline.
• DVI-I Output Connector: DVI-I carries both digital and analog signals, so it works with DVI-D monitors directly and adapts to VGA displays with a standard DVI-to-VGA passive adapter. That flexibility matters in mixed-vintage monitor environments common in control rooms doing partial refreshes.
• Supports Up to 5 Displays: The USB2DVIPRO2 is engineered to work as part of a multi-adapter stack — you can chain multiple USB display adapters alongside your native GPU outputs to reach five total displays on a single workstation, within DisplayLink driver limits.
• 16MB Onboard Memory: The embedded 16MB frame buffer on the DL-195 allows the adapter to hold the current frame locally, reducing re-draw latency when USB bus traffic spikes. It's not a substitute for dedicated VRAM on a discrete card, but it smooths desktop rendering for the type of static or slow-refresh content this adapter is designed for.
• Compact Form Factor — 9.0 x 5.5 x 2.0 cm, 70g: Light enough to leave permanently installed on a workstation without stressing the USB port. The 165mm cable gives just enough slack to route to a nearby port without dangling.

Integration and Compatibility

The USB2DVIPRO2 relies on DisplayLink driver software, which supports Windows and macOS platforms — verify the current driver release against your specific OS version before purchasing, particularly on macOS (Apple Silicon restrictions apply to DisplayLink adapters). The adapter is not plug-and-play on Linux without third-party DisplayLink drivers; confirm kernel compatibility if deploying on Linux-based workstations. In Windows environments running VMS software such as Milestone, Genetec, or similar, the adapter works best for static layout panels, map views, or alarm dashboards rather than high-frame-rate live video walls. Operating temperature is rated 10°C to 40°C — standard office and control room range, not suitable for industrial enclosures without climate control.

Frequently Asked Questions

Q: What is the maximum resolution supported by the USB2DVIPRO2?

A: The USB2DVIPRO2 supports a maximum digital resolution of 1920x1200 (WUXGA) over its DVI-I output. Standard 1920x1080 and lower resolutions are also supported.

Q: Does the USB2DVIPRO2 require an external power supply?

A: No. The USB2DVIPRO2 is powered entirely by the host USB port at 5V DC. No separate AC adapter or power cable is required.

Q: How many displays can I run using the USB2DVIPRO2?

A: A single USB2DVIPRO2 adds one DVI display. StarTech specifies that the system supports up to 5 total displays when multiple USB display adapters are combined with native GPU outputs, subject to DisplayLink driver limits.

Q: Is the USB2DVIPRO2 suitable for playing full-motion video on the extended display?

A: The USB 2.0 interface and DisplayLink architecture are optimized for desktop application display, dashboards, and reference content. High-frame-rate video playback may exhibit dropped frames or latency due to USB 2.0 bandwidth constraints. It is best used for static or slow-refresh content such as VMS map views, alarm panels, or document windows.

Q: What is the warranty on the USB2DVIPRO2?

A: The USB2DVIPRO2 carries a 2-year manufacturer warranty.

Q: Does the USB2DVIPRO2 work on macOS or Linux?

A: DisplayLink driver support is available for Windows and macOS, but macOS compatibility depends on your OS version and hardware — Apple Silicon systems have specific DisplayLink restrictions. Linux requires third-party DisplayLink drivers; kernel compatibility should be verified before deployment.

Karl Wilson

The USB2DVIPRO2 comes up regularly in control room and SOC builds where the operator workstation has exhausted its native GPU outputs but still needs one more reference display — and nobody wants to pull the machine to add a card. The DisplayLink DL-195 chipset handles the display offload over USB 2.0, keeping the host GPU free. What I tell integrators is to be honest with end users about the use case: this is a dashboard and static-layout display, not a second primary monitor for live video walls.

Technical Highlights:

• 1920x1200 Output: WUXGA gives you more usable vertical space than 1080p — meaningful for tall VMS alarm list panels or map views that operators need to reference at a glance without scrolling.
• USB-Powered at 5V DC: No outlet required at the workstation. In dense operator console builds where power strips are already loaded, eliminating one more AC brick matters at the rack level.
• 16MB Onboard Frame Buffer: The DL-195's local frame buffer reduces visible re-draw artifacts when the USB bus sees competing traffic from keyboards, mice, and other peripherals on the same root hub.

Deployment Considerations:

• In Windows VMS environments (Milestone, Genetec, etc.), assign the USB2DVIPRO2 output to static panels — alarm dashboards, site maps, or config screens — rather than live camera grids. USB 2.0 bandwidth caps will show as frame drops on motion-heavy video feeds.
• Operating temperature is rated only to 40°C — confirm the workstation environment stays within range. Uncooled equipment closets or industrial floors above that threshold will push the adapter outside spec.

This adapter earns its place in security operations center builds where a fifth display is needed for a persistent alarm or map panel and there is no PCIe slot available — a narrow but real scenario that comes up often in retrofit SOC upgrades.
