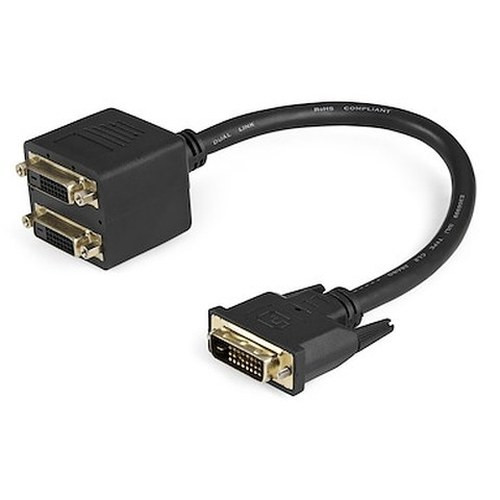

StarTech DVISPL1DD DVI-D Dual-Display Splitter Cable

Overview

The StarTech DVISPL1DD is a passive DVI-D splitter cable that mirrors one digital video source to two displays simultaneously — no drivers, no external power, no additional hardware. At 1.0 ft (0.3 m) in length, it connects directly at the source device, keeping cable runs clean and eliminating the need for a dedicated splitter box in space-constrained installations. If you're running a dual-screen monitoring station from a single DVI-D output — control room consoles, video wall feeds, or dual-monitor operator workstations — this is a simple, no-configuration solution. Bear in mind this is a passive splitter: both outputs receive the same signal. It is not a switch, not a KVM extender, and not a signal amplifier. Both monitors must accept the same resolution and refresh rate.

Key Features

• 2560 x 1600 @ 60Hz Maximum Resolution: Supports full DVI Dual-Link bandwidth, so you're not bottlenecked at 1080p or 1920x1200. This matters if you're driving high-density operator displays — WQXGA resolution at 60Hz means no frame-rate compromise at the source end.
• Gold-Plated Connectors: Gold plating resists oxidation at contact points over time, which matters in control rooms or server rooms where cables are expected to stay in place for years. Corroded connector contacts are a common cause of intermittent signal loss on older DVI installations — gold contacts mitigate that failure mode.
• Aluminum-Mylar Foil with Braid Shielding: The dual-layer shield — foil plus braid — suppresses both high-frequency interference (handled by the foil) and lower-frequency EMI (handled by the braid). In rack environments with dense cable bundles, this matters for maintaining signal integrity on a digital link that carries no error correction.
• 28 AWG Wire Gauge: At 28 AWG, the cable is light and flexible enough to manage easily in a tidy rack or desk install without adding stiffness to a short 1.0 ft run. Heavier gauge isn't needed at this cable length.
• PVC Jacket: The PVC outer jacket is standard for indoor fixed installations — flexible at room temperature, flame-retardant to typical commercial requirements, and durable against routine handling. Not rated for outdoor or plenum runs.
• Compact Form Factor: At 12.0 in x 1.7 in x 1.5 in and just 5.4 oz (153 g), the DVISPL1DD adds negligible weight and bulk at the back of a workstation or in a rack. No mounting, no power brick, no shelf space consumed.
• Lifetime Warranty: StarTech backs this cable with a lifetime warranty — uncommon for passive cable accessories. For a component that's expected to stay installed indefinitely, that coverage removes any long-term replacement cost concern.

Integration and Compatibility

The DVISPL1DD uses standard DVI-D 25-pin connectors on all three ends: one male plug to your source (GPU, NVR output, PC, or video processor), and two female receptacles for your display cables. Any device with a DVI-D output and any monitor with a DVI-D input will physically connect. Because this is a passive mirror splitter — not an active distribution amplifier — the signal is divided, not regenerated. In practice, this means: both connected monitors should ideally be the same make and model (or at minimum, support the same resolution and EDID negotiation), and total cable length from source to each display should be kept within DVI-D passive distance limits (typically under 5 meters per run from the splitter output). If one display requires a different resolution than the other, a passive splitter cannot satisfy both — you would need an active DVI distribution amplifier instead. For video cable and connectivity accessories, verify your source device's DVI-D output supports Dual-Link if you intend to run above 1920x1200. Single-Link DVI-D tops out at 1920x1200 regardless of what the cable supports.

Frequently Asked Questions

Q: Does the DVISPL1DD support audio over DVI?

A: No. DVI-D is a video-only interface. The DVISPL1DD carries no audio signal. For audio, you will need a separate cable run to your displays or audio system.

Q: Will both connected monitors display different content, or the same content?

A: The DVISPL1DD is a passive mirror splitter — both outputs display identical content simultaneously. It cannot extend or span your desktop across two screens. For independent display content, you need a graphics card with multiple outputs or an active video matrix switch.

Q: What is the maximum resolution supported by the DVISPL1DD?

A: The DVISPL1DD supports up to 2560 x 1600 at 60Hz, which requires a Dual-Link DVI-D source. If your source only supports Single-Link DVI-D, the practical maximum is 1920 x 1200 at 60Hz.

Q: What is the warranty on the DVISPL1DD?

A: StarTech provides a lifetime warranty on the DVISPL1DD.

Q: Can the DVISPL1DD be used for outdoor or plenum-rated cable runs?

A: No. The cable uses a PVC jacket, which is not rated for outdoor exposure or plenum air-handling spaces. It is designed for fixed indoor installations only.

Q: Does this splitter require drivers or external power?

A: No. The DVISPL1DD is a fully passive device — no drivers, no software, and no external power supply required. It works immediately upon connection.

Jerry Tildsen

The DVISPL1DD comes up most often in control room builds where a single DVI-D output on a PC or NVR needs to feed both a local operator monitor and a secondary display — maybe a wall-mounted summary screen or a supervisor's desk unit. The 2560x1600 ceiling is what makes it viable for high-density operator workstations: you're not capped at 1080p, and you're not forced to introduce an active splitter or a secondary GPU just to drive a mirror output at full resolution.

Technical Highlights:

• Dual-Layer EMI Shielding: Aluminum-Mylar foil handles high-frequency noise; the braid layer handles lower-frequency EMI. In a rack with dense cable bundles — power, network, and video all running parallel — this matters because DVI-D has no in-band error correction to mask signal degradation.
• Gold-Plated 25-Pin Connectors: Oxidation on connector contacts is a real failure mode in long-term fixed installations. Gold plating on all three DVI-D connectors keeps contact resistance stable over years of use without re-seating or cleaning cycles.
• Lifetime Warranty: For a passive cable component installed inside a rack or behind a workstation, a lifetime warranty effectively removes it from your replacement-parts budget permanently.

Deployment Considerations:

• Both downstream displays need to negotiate the same EDID resolution. If you're mixing display models, test before finalizing your installation — mismatched EDID responses are the most common source of blank-screen issues with passive DVI splitters.
• Total cable run from each splitter output to its display should stay under 5 meters for reliable passive signal delivery. If your secondary display is further away, add an active DVI signal extender on that leg rather than relying on the passive output alone.

This is the right component for a fixed, same-model dual-monitor operator station — particularly in NVR-driven control rooms where a single DVI-D output needs to feed a local desk display and a wall-mounted status monitor at the same resolution without any active hardware in the chain.
