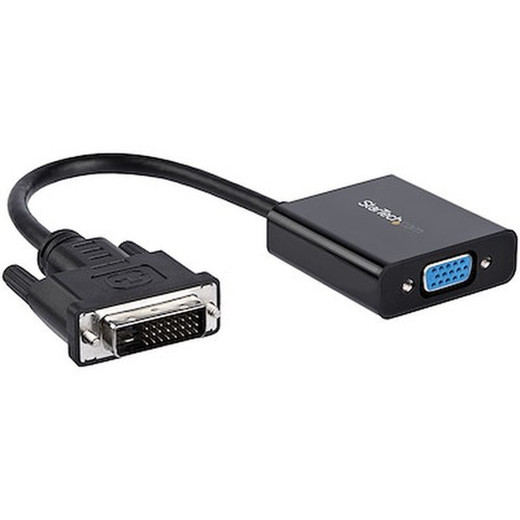

StarTech DVI2VGAE Active DVI-D to VGA Adapter

Overview

The StarTech DVI2VGAE is an active DVI-D to VGA adapter designed for situations where a DVI-D-equipped laptop or desktop needs to drive a VGA display — conference room projectors, legacy monitors, control room screens, or analog displays that simply aren't being replaced yet. Unlike passive adapters, the DVI2VGAE includes active conversion circuitry, which is required when outputting from a pure DVI-D (digital-only) source: DVI-D carries no analog signal, so a passive DVI-to-VGA adapter will not work. This active adapter handles that conversion reliably without requiring a separate power supply or software driver on most systems.

At 7.5 inches of cable length and a total product length of 9.8 inches, the DVI2VGAE is compact enough to use directly at the port without straining the connector — though in tight rack or panel environments you'll want to confirm the clearance behind the DVI port before ordering. It draws only 1.3 watts, pulling that directly from the DVI port, so there's no wall adapter to manage. For a full selection of display connectivity solutions, explore the StarTech catalog or browse the broader range of video adapters and converters.

Key Features

• Active DVI-D to VGA Conversion: The active conversion circuit inside the DVI2VGAE is the reason this adapter works where passive DVI-to-VGA cables fail. DVI-D is purely digital; getting a VGA signal out requires actual signal processing, not just pin remapping. If you've been burned by a cheap passive adapter that produced no image, this is the fix.
• Up to 1920x1200 Maximum Resolution: Supports full 1920x1200 (WUXGA) output, which covers 1080p (1920x1080) and standard widescreen formats. For a legacy VGA monitor or projector, this means you're not downscaling your desktop — you're running it at the display's native resolution, assuming the VGA display supports WUXGA.
• 1080p Supported: Explicitly supports 1080p output, making this a straightforward fit for boardroom projectors and analog monitors that cap at 1920x1080. No resolution guesswork required.
• 1.3W Bus-Powered Operation: The adapter draws 1.3 watts directly from the host DVI port — no separate USB power cable, no wall brick, no extra cable management overhead. That said, verify your DVI port's power output if you're using an older or non-standard DVI implementation.
• 7.5-Inch Cable with 9.8-Inch Total Length: The short cable keeps the adapter close to the source port, which reduces leverage stress on the DVI connector. In a desktop deployment this is generally fine; in a rack-mounted workstation or tight AV panel, confirm physical clearance before ordering.
• 0°C to 60°C Operating Temperature: Rated for standard indoor environments. This is an office and control room device — not rated for outdoor or industrial temperature extremes, which is exactly what you'd expect from a display adapter at this form factor.
• 40%–85% RH Operating Humidity: Covers typical climate-controlled indoor spaces. If your installation site sees humidity swings beyond this range (loading docks with open bay doors, for example), account for that in your deployment planning.
• Compact and Lightweight at 3.0 oz: At 3 ounces and 1.8 inches wide by 0.6 inches tall, the DVI2VGAE won't obstruct adjacent ports or add meaningful weight to a laptop bag setup.
• 3-Year Manufacturer Warranty: StarTech backs the DVI2VGAE with a 3-year warranty, which is notably longer than the 1-year coverage typical of generic display adapters. For a device that may sit in a fixed installation for years, that coverage matters.

Integration and Compatibility

The DVI2VGAE is compatible with any system presenting a DVI-D output — desktop workstations, laptops with DVI-D ports, and certain embedded computing platforms used in control room or digital signage applications. The VGA output side connects to any standard VGA display, monitor, or projector. Since VGA is an analog standard, the active conversion handles the digital-to-analog signal translation internally.

This adapter does not support DVI-I or DVI-A sources — if your source port has the additional analog pins of a DVI-I connector, this adapter will still function on the digital channel, but you'd have other, simpler options available. For DVI-D-only sources (common on discrete graphics cards and many workstations), this is the correct tool. If you're building out a display infrastructure that includes monitors and display hardware, factor in whether your sources are DVI-D digital-only before selecting adapters. For environments where multiple legacy display connections are involved, also consider reviewing KVM switches that may consolidate your connectivity needs. If you need guidance on matching display adapters to your AV or control room setup, a display connectivity guide can help clarify which adapter type fits your source and display combination.

Frequently Asked Questions

Q: Why do I need an active adapter instead of a passive DVI-to-VGA cable?

A: DVI-D is a digital-only signal standard — it carries no analog signal on its pins. A passive DVI-to-VGA cable simply remaps pins and relies on the source providing an analog signal, which DVI-D sources do not. The DVI2VGAE includes active conversion circuitry that translates the digital DVI-D signal into the analog VGA output your display needs. If you've tried a passive adapter and got no image from a DVI-D source, this is why.

Q: What is the maximum resolution the DVI2VGAE supports?

A: The DVI2VGAE supports up to 1920x1200 (WUXGA) and explicitly supports 1080p (1920x1080). The actual output resolution will be determined by what both your source system and your VGA display support — the adapter won't upscale beyond what either end of the connection can handle.

Q: Does the DVI2VGAE require a USB power connection or external power supply?

A: No. The adapter draws 1.3 watts directly from the host DVI port and requires no separate USB cable or power adapter. It is fully bus-powered.

Q: What is the warranty on the DVI2VGAE?

A: StarTech covers the DVI2VGAE with a 3-year manufacturer warranty.

Q: Will the DVI2VGAE work with a DVI-I source port?

A: The DVI2VGAE is designed for DVI-D sources. DVI-I ports include both digital and analog pins, and the adapter's DVI-D connector will physically fit a DVI-I port on the digital pins. However, if your source is DVI-I, you may have additional or simpler adapter options available that use the analog channel directly. The DVI2VGAE will function from the digital channel of a DVI-I port.

Q: What are the environmental operating limits for the DVI2VGAE?

A: The DVI2VGAE is rated for operating temperatures of 0°C to 60°C and relative humidity of 40% to 85% RH. It is designed for standard indoor climate-controlled environments — not for outdoor, industrial, or high-humidity installations.

Eden Phillips

The detail I keep coming back to on the DVI2VGAE is the 1.3-watt bus-powered design — it sounds minor until you're managing a control room refresh where every adapter at every workstation needs to just work without extra power infrastructure. This adapter pulls what it needs from the DVI-D port itself, which keeps the cable count down and eliminates the wall-adapter sprawl you'd otherwise deal with at each station.

Technical Highlights:

• Active Signal Conversion: The on-board active circuitry handles the digital-to-analog translation that DVI-D-to-VGA conversion requires — passive cables simply cannot do this from a DVI-D source, making the active design a non-negotiable specification for this use case.
• 1920x1200 Maximum Resolution: Full WUXGA support means you're not artificially capping the output below what a capable VGA projector or monitor can display — relevant in AV environments where 1920x1200 projectors are still common legacy hardware.
• 3-Year Warranty Coverage: For a fixed-installation adapter that may sit behind a monitor for years, a 3-year warranty provides meaningful coverage compared to the 1-year terms common on commodity adapters.

Deployment Considerations:

• Confirm the DVI port on your source is DVI-D (digital only) before ordering — if it's DVI-I, you have more adapter options and the DVI2VGAE, while functional, may not be the most cost-effective choice.
• The 9.8-inch total length works well at open desktop ports, but measure clearance in rack-mounted or panel-flush workstation configurations before assuming it will fit without a right-angle adapter or extension.

This adapter is a practical fit for control room workstations and corporate AV environments where DVI-D-equipped systems need to drive legacy VGA projectors or monitors — particularly where a no-external-power, set-it-and-forget-it connection is the priority.
