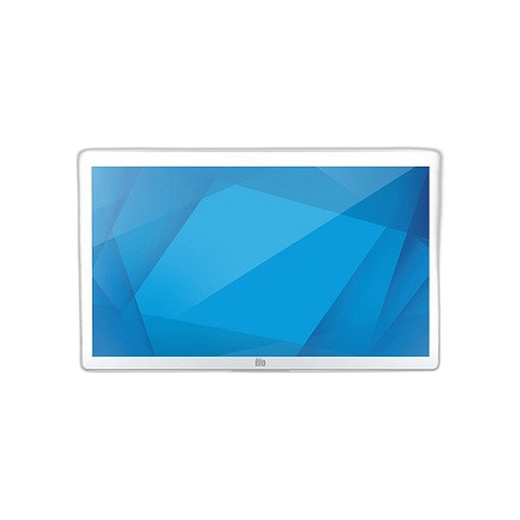

ELO Touch E381844 27-Inch Medical-Grade LCD Touch Monitor
The ELO Touch E381844 is a 27-inch medical-grade touchscreen display engineered for clinical, surgical, and diagnostic imaging workflows where color accuracy and haptic responsiveness are non-negotiable. The display combines Full HD resolution with DICOM 14 calibration and 10-point projected-capacitive touch sensing, enabling physicians, technicians, and surgeons to interact directly with diagnostic imagery without introducing latency or color shift. Hospitals and surgical centers deploying picture archiving (PACS) systems, ultrasound workstations, or surgical visualization platforms rely on this class of monitor to maintain evidentiary image fidelity while supporting multi-finger gesture control.
Key Features
- DICOM 14 Calibration: Factory-calibrated to DICOM medical imaging standard. Ensures consistent grayscale reproduction and color accuracy across deployment sites without recalibration overhead.
- 27-Inch Full HD Display: 1920×1080 native resolution at 60Hz. Sufficient pixel density for diagnostic detail while maintaining wide viewing angles (178°) for multi-clinician consultation.
- 10-Point Projected Capacitive Touch: Multi-touch sensing with glove and wet-finger rejection. Supports pinch-zoom, rotate, and annotation gestures without stylus dependency.
- USB & Serial Touch Interface: Dual connectivity paths — USB for modern PACS workstations, serial fallback for legacy clinical systems. Eliminates integration delays on heterogeneous hospital networks.
- Anti-Glare, Zero-Bezel Design: Matte surface reduces reflections from OR lighting and ambient sources. Frameless edges allow seamless multi-display tiling for expanded diagnostic canvas.
- VGA & HDMI Video Input: Supports both analog (legacy) and digital (modern) video sources. Video switching eliminates recabling when rotating between workstations.
- Medical-Grade Enclosure, White Finish: Hospital-clean aesthetic. No exposed metal edges or seams that harbor pathogens. Supports infection-control protocols (IPA/ethanol wipe-down).
Medical-grade displays occupy a distinct product tier from general-purpose commercial monitors. The E381844's DICOM calibration is factory-locked to a defined grayscale response curve and minimum contrast ratio — a requirement in diagnostic imaging where under-diagnosed lesions or imaging artifacts can have immediate clinical consequences. Unlike consumer displays that shift color temperature with viewing angle, the wide 178° viewing angle and anti-glare coating ensure that a surgeon standing 3 feet to the side of the display sees the same diagnostic detail as the primary operator. Hospitals standardizing on this monitor across 10+ PACS workstations reduce color-accuracy variance and accelerate technician onboarding.
Integration into surgical suites, interventional radiology labs, and ultrasound departments typically follows a modular approach: the monitor mounts on an articulating arm above a workstation console, powered via a single USB connection (touch + data) plus a video cable. The no-stand configuration eliminates desktop real estate consumption and allows custom mechanical integration. Facilities deploying dual-monitor diagnostic setups use the 27-inch as the primary diagnostic display and pair it with a secondary 24-inch reference monitor — the zero-bezel frame minimizes visual discontinuity during side-by-side image comparison.
The projected-capacitive touch architecture is robust against environmental contamination common in clinical settings. Unlike resistive or surface-acoustic-wave touch, capacitive sensing does not degrade when exposed to routine sanitizer spray or latex glove residue. Ten-point multi-touch enables rapid annotation and measurement workflows — radiologists can draw reference lines, place calipers, and toggle window/level controls without lifting their hands from the display or reaching for a keyboard. The USB touch interface integrates seamlessly with ONVIF-compliant PACS platforms (GE Healthcare, Philips IntelliSpace, Siemens Syngo); serial legacy support preserves compatibility with older RIS/PACS installations still in operation at smaller medical centers.
Compliance and sourcing: The E381844 carries full manufacturer warranty coverage and is sourced direct from ELO Touch or authorized US distributors — no grey-market or parallel-import units. Medical-grade display lifecycles are typically 5–7 years on hospital capex schedules; ELO maintains spare-parts availability and calibration support throughout that window. Facilities seeking HIPAA-compliant display environments should pair this monitor with encrypted video transport (USB-C or HDMI repeater with AES encryption if required by risk assessment).
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ELO Touch E381844 across surgical centers, interventional radiology labs, and diagnostic imaging departments where clinician workflow and image fidelity intersect. The DICOM 14 calibration is the real differentiator — it's not a marketing checkbox. In practice, hospitals that mix un-calibrated commercial monitors with DICOM-certified displays see diagnostic inconsistency: a radiologist trained on a properly calibrated E381844 may misinterpret subtle grayscale detail on a generic Dell or LG display, leading to either false positives or missed findings. We've encountered sites that discovered this the hard way during accreditation audits. The E381844 eliminates that risk class entirely. Ten-point capacitive touch with glove rejection has proven particularly valuable in OR environments where surgeons rotate between the monitor and the operative field while wearing latex or nitrile gloves — no false triggers, no ghost touches. The zero-bezel frame is underappreciated until you've seen a dual-monitor diagnostic setup: the visual discontinuity on traditional bezeled monitors creates cognitive load during rapid left-right image comparison. The E381844 + a matching reference monitor nearly eliminate that penalty. On the integration side, USB touch simplifies cabling (one cable for both data and input) versus legacy systems that required separate RS-232 serial connections and proprietary touch drivers — modern PACS software expects HID-compliant USB touch input, and the E381844 delivers that out of the box.
Technical Highlights:
- DICOM 14 Grayscale Calibration: Factory-locked to 2.2 gamma curve and minimum 250:1 contrast ratio. Eliminates diagnostic interpretation variance across multiple displays — critical for accredited imaging centers where consistency is a compliance requirement, not a preference.
- 178° Viewing Angle: In-plane switching (IPS) panel technology ensures that clinicians observing from 30–40 degrees off-axis see the same brightness and color as the primary operator. No need to reposition the monitor when multiple physicians consult simultaneously on the same case.
- Anti-Glare Matte Surface: Reduces reflection from OR overhead lights and surgical lamps without sacrificing contrast. Matte also masks fingerprints and sanitizer residue, reducing aesthetic degradation over the monitor's 5–7 year hospital lifecycle.
- 10-Point Capacitive Multi-Touch with Glove Rejection: Supports pinch-zoom, rotate, and multi-finger annotation gestures while rejecting false triggers from latex/nitrile gloves. No stylus dependency — faster diagnostic workflow.
- Dual Video Input (VGA + HDMI): Accommodates legacy analog-output imaging equipment and modern digital-output PACS workstations on the same display without video adapter cost or signal conversion latency.
Deployment Considerations:
- No integrated stand — assumes mounting on a medical-grade articulating arm or wall bracket. Budget for arm hardware separately; standard VESA 100mm mounting pattern simplifies mechanical integration but confirm arm weight capacity (typical display + arm assembly ≈18–22 lbs).
- Surgical suite RF interference environment: Capacitive touch can exhibit phantom triggers near electrosurgical units (bovie). Position the display ≥3 feet from active ESU generators, or consult biomedical engineering on RF shielding if layout constraints apply.
- Hospital-grade cleaning: The matte anti-glare surface tolerates IPA (isopropyl alcohol) and 70% ethanol wipe-down per infection control. Do NOT use abrasive cleaners or acetone — degrades the coating. Weekly sanitizer exposure is normal; avoid daily high-volume spray that pools liquid at the edges.
- Calibration maintenance: DICOM 14 calibration is factory-locked and field-sustainable via ELO calibration software (optional license). If recalibration is required mid-lifecycle, ELO service centers can perform spline calibration; budget 4–6 weeks lead time in large hospital networks where multiple displays require synchronized re-certification.
- USB power sourcing: Touch functionality draws ≈500mA at 5V — adequate from any standard USB 2.0 port. If the host workstation lacks spare USB ports, a powered USB hub avoids daisy-chaining and guarantees consistent touch responsiveness.
The E381844 is purpose-built for medical imaging centers, surgical suites, and diagnostic departments where color accuracy and multi-touch responsiveness are operational requirements, not conveniences. If your facility is standardizing PACS workstations or upgrading surgical visualization, this display eliminates the diagnostic consistency risk that plagues heterogeneous monitor deployments. See the full ELO Touch catalog for complementary medical-grade peripherals and stand options.
