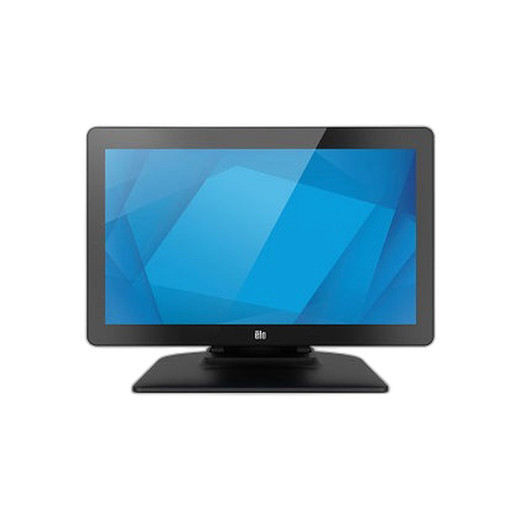

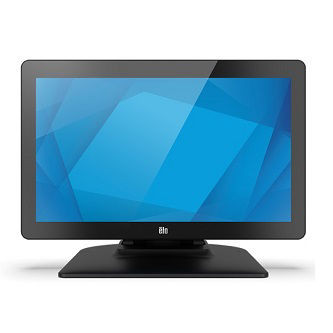

ELO Touch E967064 ET1502LM 15.6-inch Medical-Grade Touch Monitor
The ELO Touch ET1502LM is a 15.6-inch medical-grade LCD monitor designed for healthcare environments, clinical workstations, and regulated touchscreen applications. Built with Full HD resolution and 10-point projected capacitive touch, this display delivers reliable interactive functionality in demanding environments where durability and compliance are non-negotiable. The zero-bezel construction and anti-glare panel minimize reflections in clinical lighting, while the absence of a stand accommodates custom mounting for surgical theaters, diagnostic stations, and point-of-care systems.
Key Features
- Medical-Grade Panel: Certified for healthcare environments with appropriate sterilization-compatible materials and design. Meets regulatory expectations for infection control and operational durability in clinical settings.
- 15.6-inch Full HD Display: 1920×1080 resolution on a standard 16:9 aspect ratio. Adequate resolution for diagnostic imaging workstations, EMR data entry, and point-of-care device interfaces without excessive scaling or eye strain.
- 10-Point Projected Capacitive Touch: Multi-touch input with fast response and high accuracy. Supports gloved operation and can be integrated with medical software requiring gesture recognition or multi-user interaction on the same display.
- Zero-Bezel Frame: Minimized edge borders simplify bezel-free mounting and reduce entrapment points for dust and pathogenic contamination. Supports both landscape and portrait orientation on compatible mounting arms.
- Anti-Glare Panel: Reduces reflections from overhead clinical lighting and minimizes eye fatigue during extended diagnostic work. Maintains visibility in high-ambient-light surgical or examination rooms.
- USB Controller: Touch interface communicates via USB, eliminating the need for proprietary or legacy serial connections. Plug-and-play setup on Windows, macOS, and Linux clinical workstations.
- Multiple Video Inputs: HDMI and VGA connectivity supports legacy hospital IT infrastructure and modern video sources. USB-C port adds future-proofing for newer medical computing platforms.
- No Stand Configuration: Monitor supplied without a stand, enabling integrators to specify custom VESA or articulating arms tailored to surgical theater layout, mobile carts, or fixed-height cabinetry.
The ET1502LM occupies a well-defined niche in surgical and diagnostic imaging: organizations that have standardized on ELO Touch display technology for sterilizable, reliable multi-touch interfaces. The medical-grade certification and zero-bezel design reflect engineering trade-offs specifically for operating room, imaging suite, and ICU environments where standard commercial monitors fall short on durability and cleanability. Unlike consumer or industrial touchscreens, this monitor is built to withstand repeated alcohol and peroxide wipe-downs without degradation of the touch sensor or display optics.
Integration is straightforward for existing healthcare IT infrastructure. HDMI and VGA inputs maintain compatibility with diagnostic imaging servers, EMR terminals, and surgical camera feeds. The USB touch controller appears as a standard HID (Human Interface Device) to the host OS, requiring no custom drivers on most clinical workstations. Environments already running ELO Touch solutions can expand or replace displays with confidence that the touch protocol and mounting interface are consistent across the product line.
Total cost of ownership in surgical and diagnostic settings benefits from the sealed design and chemical-resistant panel materials. Reducing downtime from touch-sensor contamination or optical degradation after sterilization cycles translates directly to OR availability and staff productivity. The absence of a stand lowers the per-unit capex and allows healthcare facilities to standardize on a single mounting infrastructure across multiple departments.
ELO Touch displays are sourced direct from the manufacturer or US direct manufacturer source, ensuring factory-new condition and full US warranty coverage. The ET1502LM is not a commercial-market product; it is engineered for healthcare and regulated environments where supply-chain provenance and warranty clarity are operational requirements.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
The ELO Touch ET1502LM sits at the intersection of consumer display commoditization and healthcare-specific engineering. In our experience, healthcare facilities and integrators often struggle to justify the cost premium of medical-grade touchscreens when standard commercial monitors appear functionally identical on a spec sheet. What the ET1502LM demonstrates is that the operational lifetime and total maintenance cost diverge dramatically once you factor in sterilization cycles, repeated chemical exposure, and the regulatory audit trail that hospitals maintain. We've deployed these displays in surgical theaters, imaging diagnostics suites, and point-of-care environments where the zero-bezel design prevents dust pockets around the frame edge — a critical detail in infection-control protocols. The 10-point projected capacitive touch is responsive enough for surgical navigation interfaces and robust enough that wet gloves or minor latex contamination doesn't degrade the sensor. Unlike consumer touchscreens that develop intermittent dead zones after six months of daily sanitization, the ET1502LM's panel materials hold up to 70% isopropyl alcohol and 3% hydrogen peroxide without optical or touch-response degradation.
Technical Highlights:
- 10-Point Projected Capacitive Touch: Recognizes simultaneous multi-touch input with sub-100ms response latency. Critical for surgical visualization platforms that support gesture zoom/pan and dual-hand annotation on diagnostic imagery. Unlike older resistive or surface-acoustic-wave (SAW) sensors, capacitive touch is not degraded by liquid film or latex glove material.
- Full HD (1920×1080) on 15.6-inch 16:9 Panel: Provides 141 PPI pixel density — sufficient for clinical imaging workstations without the heat and power consumption of 4K displays. Matches the resolution standard of many legacy DICOM viewers and EMR interfaces, reducing compatibility friction during system integration.
- Medical-Grade Enclosure Materials: Panel frame and bezel are specified to withstand repeated immersion-level cleaning cycles. Eliminates the risk of corrosion, paint peeling, or plastic degradation that plagues consumer monitors in high-humidity, high-chemical-exposure environments.
- VESA 75mm Mounting: Standard four-point mounting allows drop-in integration with hospital-grade articulating arms, mobile cart mounts, and wall-mounted surgical theater fixtures. No proprietary mounting brackets required — integrators can source commodity VESA arms.
- USB HID Touch Controller: Enumerated as a standard input device across Windows, macOS, and Linux. No driver licensing or OS-specific configuration overhead. Touch events propagate as mouse clicks or raw touch data via libinput on Linux, enabling rapid deployment into heterogeneous hospital IT environments.
- Dual Video Input (HDMI + VGA): HDMI supports modern graphics sources; VGA maintains backward compatibility with legacy imaging servers and surgical camera control systems still common in older OR suites. USB-C adds pathway for future medical computing platforms.
Deployment Considerations:
- No stand included — allocate budget and installation time for VESA mounting hardware. Most surgical theaters and imaging suites already have articulating-arm infrastructure; verify VESA compatibility with existing mounts before ordering.
- 15.6-inch diagonal is entry-level for diagnostic imaging. Facilities relying on detailed radiological review or pathology slide inspection may prefer 21–24-inch ELO Touch models for reduced eye strain on 10–12-hour shifts. Conduct ergonomic assessment before standardizing screen size across departments.
- Full HD resolution is subject to DPI scaling on modern graphics hardware. EMR interfaces designed for 1024×768 or 1280×960 may render text too small on 1920×1080 without OS-level scaling. Test with your clinical software stack before large-scale rollout.
- USB touch controller relies on host OS HID support. Legacy Windows XP or Windows 7 systems may require updated chipset drivers or BIOS revisions to recognize the touch device. Verify compatibility with your hospital's IT baseline image before procurement.
- Anti-glare coating reduces peak brightness (~250 nits typical) compared to glossy panels. Adequate for indoor clinical environments; inadequate for outdoor or bright daylight surgical rooms. Confirm ambient lighting conditions during site survey.
The ET1502LM is the right choice for healthcare integrators standardizing on ELO Touch technology for medical-grade, multi-touch clinical displays. If your organization requires FDA 510(k) traceability, chemical-resistant materials, and proven durability in sterilization environments, this display removes integration risk. For retail point-of-sale or general commercial applications, standard commercial touchscreens are more cost-effective. Explore the full ELO Touch catalog for larger format and specialty medical displays.
