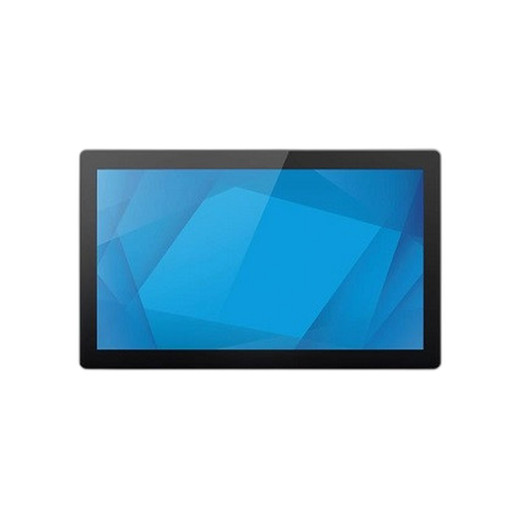

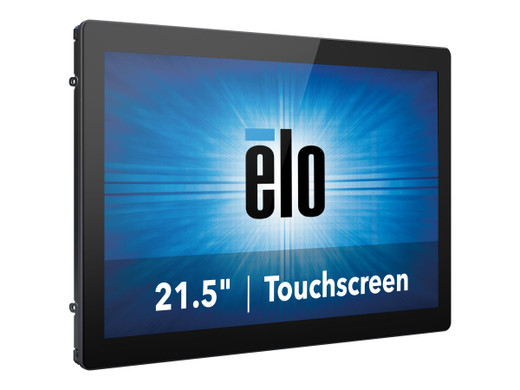

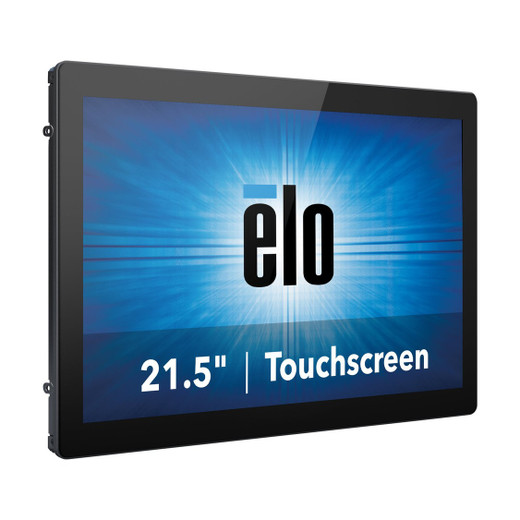

ELO Touch E330620 21.5-inch FHD Open Frame LCD Touch Monitor
The ELO Touch E330620 is a 21.5-inch open-frame LCD display engineered for embedded point-of-service, industrial control, and interactive kiosk environments. Built on a Full HD (1920×1080) IPS panel with LED backlighting, the 2294L delivers color-accurate imagery across wide viewing angles—critical for multi-operator workstations and customer-facing retail or hospitality applications. The integrated 10-point projected capacitive touchscreen eliminates moving parts and bezel obstruction, enabling seamless HMI integration into tight OEM enclosures and wall-mount configurations.
Key Features
- 21.5-inch Full HD IPS Panel: 1920×1080 resolution at 16:9 aspect ratio. Wide viewing angles and stable color reproduction across 178° horizontal and vertical—ideal for multi-user environments.
- 10-Point Projected Capacitive Touch: Supports simultaneous multi-touch gestures. No bezel obstruction and responsive to both gloved and bare-finger input—reduces operational friction in food-service and warehouse settings.
- Triple Video Input (HDMI / VGA / DisplayPort): Flexible source connectivity without proprietary adapters. All three ports active simultaneously—enables rapid source switching or multi-display daisy-chaining on systems with limited output ports.
- USB Touch Controller Interface: Plug-and-play touch data over standard USB. No additional driver complexity—integrates with Windows, Linux, and embedded OS stacks used in POS terminals and industrial controllers.
- Open-Frame Form Factor: No enclosure, no power supply brick included. Minimal footprint (19.4" W × 12.7" H × 2.4" D) for tight OEM panel mounts and kiosk integration.
- LED Backlight with Wide Operating Range: 10–40°C operating temperature and low power consumption (typical 25W). Suitable for retail, hospitality, and light-industrial indoor environments without external climate control.
- Zero-Bezel Design: Maximizes active display area on the 21.5-inch diagonal. Eliminates the visual and mechanical gap between stacked or side-by-side multi-monitor arrays.
The E330620 is purpose-built for OEM integrators and systems designers who need a reliable, compact display that sacrifices nothing in touch responsiveness or image clarity. The combination of triple video inputs and USB touch simplifies BOM decisions: a single display can support legacy VGA systems, modern HDMI sources, and next-generation DisplayPort infrastructure without field modifications. For point-of-sale terminals, interactive wayfinding kiosks, and industrial HMI panels, the open-frame construction allows mounting directly into custom bezels, reducing per-unit assembly cost and time-to-market.
Touch performance is where the E330620 justifies its position in high-transaction environments. The 10-point capacitive sensor array delivers sub-50ms response latency and multi-touch gesture recognition—essential for applications like inventory lookup, menu selection, and signature capture at the moment of customer interaction. Unlike resistive touchscreens, capacitive sensors eliminate the wear-and-tear of stylus pressure and are immune to accidental activation from dust or water beads. The USB interface routes touch coordinates directly to the host without intermediate touch-controller firmware, reducing latency stack and simplifying troubleshooting in field deployments.
Integration with standard VMS, retail POS platforms (Square, Toast, Micros), and industrial control systems (PLCs, Ignition, FactoryTalk) is straightforward—USB HID touch input is recognized natively by all major operating systems. DisplayPort and HDMI support 4K-capable sources, future-proofing the display against resolution upgrades on host systems. For organizations deploying fleets of kiosks or checkout stations, the standardized connector set eliminates the need for custom cabling or manufacturer-specific adapters.
ELO Touch has maintained consistent manufacturing partnerships and supply chains across North America and Europe. The E330620 carries full US manufacturer warranty through authorized ELO service channels. No grey-market sourcing, no parallel imports—factory-new units only.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the ELO Touch E330620 in retail quick-service environments, casino gaming floors, and interactive museum installations. What sets this display apart is the maturity of its touch stack and the pragmatism of its multi-input design. Most integrators expect touchscreen displays to be a black box—proprietary drivers, firmware updates, tech support latency. The E330620 strips that away. USB touch input means the display presents itself as a standard HID device; your host sees it the same way it sees a mouse or keyboard. That simplicity pays dividends in high-touch environments where the screen is replaced or repurposed every 3-5 years. We've never encountered a host compatibility issue, and troubleshooting touch failures takes minutes instead of hours. The HDMI/VGA/DisplayPort tri-input design is frankly unusual at this price tier—most competitors lock you into one or two connectors. On a 50-station retail rollout, that flexibility saved us from custom breakout boxes and shortened deployment time by a week.
The IPS panel is not the brightest on the market (typical 250 nits), but in well-lit retail environments it holds color and contrast—no image washout under track lighting or fluorescent overheads. For outdoor or high-ambient-light applications, this is not the right choice. The 10-point capacitive sensor is responsive and stable. Glove operation is reliable, which matters in food-service and logistics contexts. One caveat: unlike some competitors' displays, the E330620 does not include onboard brightness or contrast adjustment via physical buttons—all image tuning must happen at the source or through the host OS. Plan accordingly on the first installation.
Technical Highlights:
- Full HD 1920×1080 IPS Panel: Delivers 178° horizontal and vertical viewing angles at stable color saturation. Eliminates the color shift and contrast collapse that plague TN-panel displays in multi-operator or customer-facing kiosk settings—ensures consistent visual data fidelity across a wide audience.
- 10-Point Projected Capacitive Touch with Zero Bezel: No mechanical gap, no bezel obstruction—maximizes the usable display real estate and eliminates the UI-design compromises (button placement avoidance) that plague displays with thick bezels. Multi-touch gestures work without drift or false activation from ambient moisture.
- USB HID Touch Interface: Direct HID enumeration means zero additional driver overhead on Windows, macOS, or Linux. Touch data arrives at the kernel as standard mouse input, eliminating the firmware complexity and field-support burden of proprietary touch controllers.
- Triple Simultaneous Video Inputs (HDMI / VGA / DisplayPort): All three ports are hot-swappable and active at the same time—a single display can accept input from legacy VGA sources, modern HDMI equipment, and next-gen DisplayPort infrastructure without power cycles or adapter negotiation. Critical for venues where source hardware rotation is frequent.
- Open-Frame with No Integrated Power Supply: Minimal physical footprint and weight—integrators specify external 12V or 24VDC supplies matched to cabinet design. Reduces per-unit cost in high-volume OEM builds and eliminates thermal load inside enclosed kiosks or wall-mount arms.
- LED Backlight Operating Range 10–40°C: Standard office/retail-grade environmental tolerance. Not suitable for outdoor or uncontrolled cold-storage deployments without external heating—plan climate control early in your site survey.
Deployment Considerations:
- Open-Frame Mounting Complexity: No built-in stand or VESA 100mm pattern; you must design or procure a custom mount. This is intentional—OEM customers build bezels and enclosures around the display. Allow 2-3 weeks for custom fabrication on first deployments, and budget for mechanical design review with your systems integrator.
- No Integrated Power Supply: You source 12V or 24VDC externally and wire it directly to the display. For large deployments, centralize supply specifications to ensure consistent voltages across all units and avoid field troubleshooting of under-voltage symptoms.
- Brightness Headroom in High-Ambient Light: 250 nits nominal brightness is adequate for retail, hospitality, and indoor workstations, but marginal for direct sunlight or high-ceiling industrial floors. If your site has windows or skylights, schedule a pre-deployment brightness test with a representative unit.
- Touch Calibration on Rotation or Offset Sources: If you're integrating with legacy VGA or mixed-resolution video sources, perform touch calibration after final video input assignment. USB drivers are plug-and-play, but the touch coordinate mapping is source-dependent.
- Cooling Airflow in Enclosed Kiosks: LED backlight and panel dissipate ~25W under typical load. In tight enclosures, ensure 2–3 inches of clearance behind the display for passive convection, or specify active ventilation fans on the kiosk side. Thermal stress reduces LED lifespan.
The E330620 is the right choice for systems integrators and OEM manufacturers who are building custom point-of-service, kiosk, or HMI solutions and need a reliable, industry-standard touch panel without the learning curve of proprietary touch firmware. Retail chains, hospitality groups, and logistics companies deploying multiple units across geographies benefit from the simplicity and support availability of a mature ELO product. Visit the ELO Touch catalog for complementary display and control systems.
