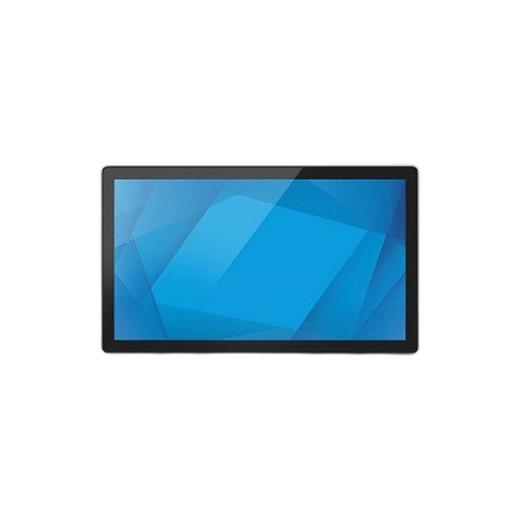

ELO Touch Elo 2494L 23.8-inch FHD Open Frame Touch Monitor
The ELO Touch Elo 2494L is a 23.8-inch open-frame LCD display designed for embedded retail, hospitality, and industrial kiosk deployments where space is constrained and direct system integration is required. The 1920×1080 WVA panel delivers wide viewing angles critical for multi-customer or multi-operator environments, while the 10-point projected capacitive touch interface provides responsive, glass-surface operation without moving mechanical parts. This configuration—open frame, no onboard power supply, USB touch controller—is purpose-built for OEM integrators who mount the display into custom cabinetry, countertop frames, or self-service terminals.
Key Features
- 23.8-inch FHD WVA Panel: 1920×1080 resolution, in-plane switching (IPS-class) viewing angles. Eliminates color shift and gamma distortion at oblique angles typical in shared-use scenarios (checkout stands, information kiosks, service windows).
- 10-Point Projected Capacitive Touch: Multi-touch support, glass-protected surface, no mechanical overlays. Eliminates maintenance headaches from physical wear, dust ingress, or repeated cleaning on fingerprint-heavy interfaces.
- Open Frame / No Power Brick: Designed for cabinet integration and external power distribution. Reduces footprint for tight mounting spaces and enables system designers to run power through a single central supply.
- USB Touch Controller Interface: Standard USB connection for touch data and device management. Integrates directly into any Windows or Linux host without proprietary drivers in most scenarios.
- Multi-Signal Input (HDMI / VGA / DisplayPort): Three independent video inputs allow flexible host connectivity and fallback options in mixed-legacy environments.
- LED Backlight: Energy-efficient illumination with long service life (typical 30,000+ hours) reduces operational cost and thermal load in enclosed cabinetry.
- Clear Bezel Design: Minimalist framing maximizes visible screen real estate and presents a sleek, modern appearance in customer-facing applications.
The open-frame form factor and absence of an integrated power supply are intentional—this monitor is engineered for OEM and systems integrator environments where the display is one component of a larger assembly. The display connects to a host computer via HDMI, VGA, or DisplayPort for video and USB for touch input; power is supplied externally (typically 12V DC or 24V DC from the cabinet's central distribution). This modular approach simplifies inventory for integrators who support multiple terminal designs and reduces spare parts complexity.
WVA (a Wide Viewing Angle variant of TN or IPS technology) ensures color consistency across a 178-degree viewing cone. In a retail checkout or kiosk context where customers approach from different angles, this prevents the common problem of touch-zone misalignment caused by viewing-angle color shifts. The 10-point capacitive touch layer supports multi-touch gestures (pinch-zoom, swipe, rotate), useful for digital menu boards, mapping applications, and interactive product displays, though most retail POS integrations use single-touch or two-touch workflows.
ONVIF compliance is not applicable to display hardware, but the USB controller interface adheres to HID (Human Interface Device) standards, ensuring OS-agnostic compatibility. Windows, Linux, and embedded systems (embedded Windows Thin Client, QNX, etc.) recognize the touch surface as a standard pointer device without specialized firmware. Integrators can layer their own calibration, gesture mapping, and application-level filtering in software.
Total cost of ownership over a 3-5 year deployment cycle favors the Elo 2494L in high-touch, public-facing installations. The sealed capacitive surface eliminates the recurring cost of overlay replacement (typical every 18-24 months in resistive-touch designs exposed to food, beverage, or harsh chemicals). LED backlight longevity reduces unplanned downtime. Open-frame design means no disposal cost for integrated power supplies—a minor but real advantage for large terminal roll-outs.
Factory-new product sourced direct from the manufacturer or US channel partner. Genuine ELO hardware with full US warranty path. No grey-market, no parallel imports.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Elo 2494L in environments ranging from quick-service restaurant POS terminals to hospital patient-check-in kiosks to automotive service-bay workstations. The key appeal is simplicity: no onboard power supply to fail, no legacy resistive touch overlays to replace every two years, and a straightforward USB handshake that integrators can troubleshoot without calling vendor support. In our experience, the real differentiator versus comparable Planar or 3M open-frame displays is the WVA viewing angle and the ten-point capacitive architecture. We've seen false-touch issues almost entirely disappear when replacing older resistive overlays with this display—the capacitive sensing rejects most accidental touches and environmental interference that would plague mechanical overlays. On the flip side, integrators new to capacitive touch sometimes struggle with calibration in the first deployment; we recommend a test unit and a half-day onsite with your software team to validate gesture response and touch accuracy under real lighting conditions. The open-frame form factor also means you're responsible for mounting, power routing, and thermal management—if your cabinet doesn't have adequate ventilation, the LED backlight will thermal-throttle or prematurely age.
Technical Highlights:
- 10-Point Projected Capacitive Touch: Supports simultaneous multi-touch input and gestures. No moving parts, sealed design, near-zero maintenance—a hard requirement for any public-facing kiosk expected to survive 12+ months in a food-service or transit environment.
- WVA (Wide Viewing Angle) Panel: 178-degree cone ensures customers approaching from left, right, or oblique angles see consistent color and touch responsiveness. Eliminates the common problem of touch zones appearing to shift when viewed off-axis.
- Multi-Input Video (HDMI / VGA / DisplayPort): Flexibility for legacy and modern hosts. In retrofit or multi-vendor integrations, having three independent inputs reduces the need for adapters and simplifies hot-swap testing.
- USB Controller Interface: HID-compliant touch data over standard USB. Works with Windows, Linux, embedded systems—no proprietary drivers required for basic touch operation. Custom calibration and gesture mapping handled in software.
- LED Backlight (30,000+ hour lifespan): Lower power draw than CCFL, longer service life than older LCD backlights. Reduces operational cost and simplifies spare-parts planning for fleets of terminals.
- Open Frame Design: No integrated power supply or housing. Lets integrators design their own thermal management, cable routing, and aesthetic framing. Reduces inventory complexity for multi-terminal deployments.
Deployment Considerations:
- Open-frame displays require adequate ventilation. If mounting inside a tight cabinet or kiosk with poor airflow, the LED backlight will operate near thermal limits and may throttle brightness or shorten lifespan. Plan for at least 2-3 inches of clearance above and to the sides, or add a dedicated cooling fan.
- Touch calibration is critical on day-one installation. Capacitive touch is sensitive to nearby metal, grounding, and electromagnetic interference. If you're integrating into a cabinet with other electronics or long cable runs, test touch accuracy under final operating conditions before shipping to the field.
- External power supply required—no integrated PSU. Confirm your cabinet's power budget and voltage rail (12V DC, 24V DC, or AC mains, depending on your integrator setup) before finalizing the design. Elo provides power specifications; undersizing the supply will cause display instability and touch dropout.
- No integrated speakers or audio jacks. Audio must be routed separately from your host system. Plan for a secondary speaker or audio interface if your application requires sound.
- Bezel depth is minimal, so mounting hardware must account for cable strain relief. Large HDMI or DisplayPort connectors on the host-side will require right-angle adapters or cable management inside the cabinet to avoid stress on the display ports.
The Elo 2494L is built for integrators and OEMs who control the full system design. It's not a monitor you plug into a consumer desktop. If you're specifying a fleet of kiosks, retail terminals, or hospitality self-service stations and need a proven capacitive-touch display with minimal support overhead, this is a solid choice. See our ELO Touch catalog for additional display sizes and configurations.
