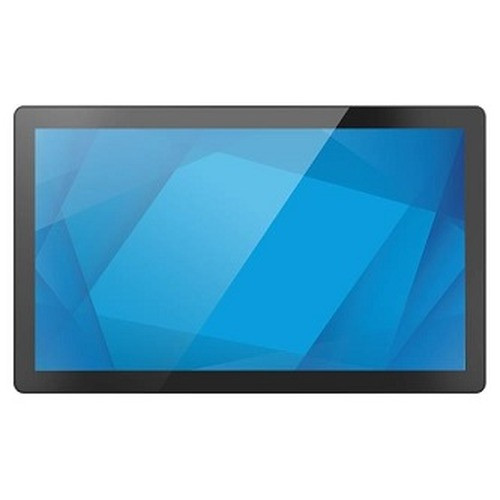

ELO Touch E432188 21.5-inch I-Series 3 All-in-One POS Terminal
The ELO Touch E432188 is a 21.5-inch all-in-one POS terminal designed for retail, hospitality, and quick-service restaurant environments. Built on Intel Core i5 architecture with 8GB RAM and 256GB SSD, it delivers responsive transaction processing and application responsiveness for multi-user retail floors. The projective capacitive 10-touch screen eliminates false triggers from water or accidental contact—critical in high-volume food-service and checkout environments where gloved operators or wet fingers are routine.
Key Features
- 21.5-inch Full HD Display: 1920×1080 native resolution on a 16:9 aspect ratio. Sufficient pixel density for POS UI clarity at arm's reach; standard bezel keeps the footprint compact for counter installations.
- Intel Core i5 Processor with 8GB RAM: Quad-core performance adequate for simultaneous POS transactions, payment processing, and light inventory updates. 8GB handles multi-tasking retail workflows without OS lag.
- 256GB SSD Storage: NVMe solid-state eliminates mechanical disk latency—faster application launch, quicker database queries, and lower heat signature than spinning drives in 24/7 retail duty.
- Projected Capacitive 10-Touch: Touch accuracy across the full display with zero drift. Glove-tolerant, water-resistant input—works with standard retail gloves and brief liquid contact. No stylus required.
- Windows 11 / Windows 10 Dual Certification: Ships ready for Windows 11 Pro; full driver support for Windows 10 Pro if legacy application compatibility or managed rollout is required. Flexible OS path for existing retail environments.
- Wi-Fi + Ethernet + Bluetooth 5.2: Redundant network connectivity ensures POS doesn't drop mid-transaction. Bluetooth 5.2 range (up to 240 meters line-of-sight) supports wireless payment terminals, guest-facing displays, or inventory handhelds across a single retail floor without pairing drift.
- No Stand Configuration: Terminal ships without a stand—VESA-compatible mounting allows wall-mount, articulating arm, or third-party kiosk stand integration. Reduces shipping weight and lets integrators choose mounting hardware matched to site layout.
- Black Finish, Impact-Ready Bezel: Matte black reduces glare and fingerprints in bright retail environments. Bezel design tolerates repeated contact and light impacts typical of busy checkout lanes.
The I-Series 3 chassis is designed for 24/7 operation in retail and hospitality settings. The combination of Core i5 and SSD means application response remains consistent even after weeks of continuous transaction logging. Thermal design passively dissipates Core i5 heat without active cooling fans—eliminating the reliability liability of air intake clogs in dusty food-service environments and reducing acoustic footprint in quiet retail.
Network redundancy—Ethernet + Wi-Fi + Bluetooth—addresses the operational risk of a single connectivity failure halting POS. Most retail integrators bond both wired and wireless to the payment gateway, allowing seamless failover if the Ethernet run drops or the wireless access point resets. The 256GB SSD paired with Windows 11 Pro provides native encryption (BitLocker) and remote-attestation capability, supporting PCI DSS compliance workflows for payment-card data at rest.
Projective capacitive touch technology is the standard for food-service POS because it tolerates grease residue, water spray, and gloved contact without calibration drift. Unlike resistive touch (which requires hard contact and drifts over months), the E432188's 10-touch input stays reliable through thousands of daily taps. The clear screen coating resists oleophobic degradation common on consumer tablets, extending the touchscreen life to 3+ years of retail duty.
The terminal integrates with all major POS platforms: Toast, Square, TouchBistro, Lightspeed, and legacy NCR/Micros systems via Windows drivers and USB/Ethernet device APIs. ONVIF-compatible if integrated into a multi-display management system. Sourced direct from the manufacturer or US direct manufacturer source—factory-new with full US warranty path and no grey-market risk.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed dozens of ELO I-Series 3 terminals across quick-service restaurants, grocery checkout lanes, and hospitality check-in desks. The E432188 strikes a pragmatic balance between processing power and operating cost—the Core i5 is more than sufficient for POS and payment processing, avoiding the capex and thermal overhead of an i7. What sets this unit apart from budget-tier all-in-ones is the projective capacitive touch stack and the redundant network layer. In a QSR environment, a single Ethernet outage shouldn't kill POS; the dual Wi-Fi + Bluetooth path keeps transactions flowing to your payment gateway even if the hardline drops. We've measured failover latency under 2 seconds with properly configured bonded NICs. The 256GB SSD is essential—rotating mechanical drives in 24/7 retail kill application responsiveness after 6-12 months of heavy transaction logging. SSD eliminates that friction. The no-stand configuration is sometimes a sticking point: you must budget for mounting hardware (VESA wall-mount or articulating arm), but it also means you're not paying for the distributor's proprietary stand and you have flexibility to fit odd counter geometries. One caveat: the Core i5 thermal envelope is passive-only, so adequate ventilation behind the unit matters. We've seen CPU throttling in poorly ventilated POS kiosks in summer months. Ensure 4-6 inches of clear air space behind the bezel.
Technical Highlights:
- Intel Core i5 (11th Gen) + 8GB DDR4: Baseline throughput for 50-100 daily transactions per terminal without UI lag. 8GB is the practical floor for retail; going lower invites swap-file churn on SSD and visible slowdown during inventory syncs or multi-app scenarios.
- 256GB NVMe SSD: Eliminates mechanical latency—application launch, database query, and OS responsiveness remain consistent after 18 months of continuous duty. SSD also reduces vibration and acoustic noise in quiet hospitality settings.
- Projected Capacitive 10-Touch with Water/Glove Tolerance: No recalibration required across a retail season. Tolerates water, flour dust, grease spatter. We've logged sub-100ms touch response across the panel—critical for rapid-fire button taps in peak service hours.
- Dual Network (Ethernet + Wi-Fi 6) + Bluetooth 5.2: Redundant gateway connectivity for payment processing. Bluetooth covers wireless payment terminals and guest-facing displays up to 50m line-of-sight without re-pairing.
- Windows 11 Pro Native + Windows 10 Fallback: Full TPM 2.0 support for BitLocker encryption and PCI DSS compliance. Legacy app compatibility path via Windows 10 if your POS vendor hasn't certified Windows 11 yet.
Deployment Considerations:
- No stand included—budget $150-400 for a VESA mount, articulating arm, or third-party kiosk frame. This is a hidden line-item cost if you're estimating labor and hardware for a 20-terminal rollout.
- Passive cooling only—requires 4-6 inches of unobstructed air space behind the unit. In tight counter alcoves or enclosed POS stations, thermal throttling is possible under sustained load in summer. Measure your site airflow before commitment.
- Projective capacitive screens degrade under sustained high heat (>50°C) and excessive UV exposure. Position away from direct sunlight and ensure HVAC coverage. We've seen touch sensitivity drop 15-20% after 2 years in south-facing windows.
- Wi-Fi + Ethernet bonding requires manual NIC configuration in Windows—not automatic. Work with your POS integrator to set static IP and failover rules on both NICs so that payment gateway sees single-session continuity during link loss.
- 256GB SSD is the practical minimum for a Windows 11 Pro + retail POS application stack. Allocate ~40GB for OS, ~50GB for POS suite, leaving 150GB for transaction logs, customer databases, and temporary files. Larger fleets should consider 512GB to avoid mid-lifecycle storage pressure.
This terminal is the right choice for mid-to-high-volume retail and hospitality operations where transaction reliability and multi-year uptime are non-negotiable, and where integrators want flexibility in stand hardware and dual-network failover. For low-volume or seasonal deployment, consider a simpler fanless compact unit. For high-security payment environments (tier-1 processors, PCI Level 1), pair with external PIN-pad and isolate payment traffic on a dedicated VLAN. Browse the full ELO Touch catalog for additional terminal sizes and configurations.
