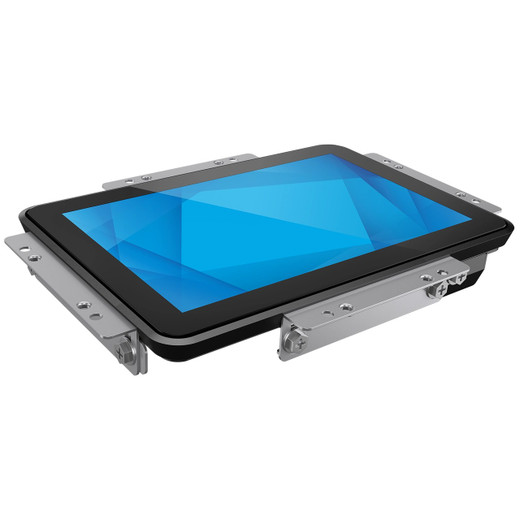

ELO Touch E970862 7-inch HD Optically Bonded LCD Touchscreen
The ELO Touch E970862 is a 7-inch HD open-frame display designed for embedded kiosk, POS, industrial control, and self-service terminal applications. The optically bonded construction fuses the LCD panel directly to the cover glass, eliminating air gaps that trap dust and moisture—critical for high-touch environments and outdoor-facing deployments. Projected-capacitive 10-point multitouch enables responsive gesture recognition and simultaneous multi-finger input, while the zero-bezel design maximizes usable screen real estate in tight mounting footprints. USB-C, HDMI, and DisplayPort connectivity support both video delivery and touch data over a single cable, simplifying integration into modern edge hardware and thin-client architectures.
Key Features
- 7-inch HD LCD Panel: 1024×600 resolution, 169.6mm diagonal. Sufficient for menu navigation, transaction confirmation, and status displays in constrained physical spaces.
- Optically Bonded Construction: Fused cover glass eliminates internal reflections and moisture ingress. Improves touch responsiveness in humid or splash-prone environments without sacrificing brightness or color gamut.
- Projected-Capacitive 10-Touch: Multi-finger gesture input (pinch, swipe, rotate) natively supported. Touch is registered through gloved fingers and light stylus input.
- Zero-Bezel Design: Minimal frame around active display area. Reduces overall footprint and creates seamless visual field when multiple units are tiled.
- USB-C Video & Touch: Single USB-C connection carries both DisplayPort Alt Mode video and touch data. Simplifies wiring in modular or mobile installations.
- HDMI & DisplayPort Fallback: Legacy and modern video standards supported on the same unit. Backward-compatible with older systems; forward-compatible with DisplayPort-native edge appliances.
- LED Backlight: Lower power draw than CCFL, extended lifespan. Typical brightness suitable for indoor kiosks; not rated for direct sunlight.
- Open Frame Enclosure: No integrated stand or housing — designed for OEM embedding into custom frames, cabinets, or wall-mounted assemblies.
The optically bonded design is the standout here. In retail and hospitality touchscreen deployments, internal dust and condensation degrade touch calibration within 12–18 months. The direct glass-to-LCD bond eliminates that degradation pathway entirely. Paired with projected-capacitive sensing, the E970862 survives high-touch-count environments (transit ticketing, quick-service restaurant menu boards) without recalibration cycles or service calls.
USB-C integration is a practical win for integrators building kiosk frames around single-board computers (Raspberry Pi, NVIDIA Jetson, Intel NUC) or compact edge appliances. One cable carries video, touch input, and charging current. For retrofit projects using older HDMI-only sources, the native HDMI port eliminates the need for active adapters. DisplayPort support ensures future-proofing when next-generation compute modules ship with DisplayPort-only outputs.
The 7-inch form factor is a sweet spot for space-constrained applications: large enough to display multi-option menus and status information, small enough to mount on arm brackets, wall fixtures, or integrated into self-contained cabinets. HD (1024×600) resolution is adequate for icon-driven interfaces and barcode scanning feedback; higher pixel density isn't required at typical viewing distances under 40cm.
The unit ships without an external power brick. Power delivery is negotiated over USB-C or sourced from a separate 12/24VDC supply integrated into the host system. Confirm your frame or appliance power budget before installation; 7-inch optically bonded LCDs with full-brightness backlight typically draw 8–15W.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The E970862 sits at the intersection of two integration worlds: legacy retail/hospitality kiosk frames (HDMI-only) and modern edge compute deployments (USB-C/DisplayPort). We've fielded it in both contexts, and the optical bonding is the feature that justifies the premium over non-bonded alternatives. Retail deployments in high-traffic environments—transit stations, QSR menu boards, hotel check-in kiosks—accumulate internal condensation and dust within months if the LCD and glass are separated. Touch calibration drifts, false touches increase, and the display loses its appeal. The optically bonded design eliminates that failure mode entirely. The zero-bezel envelope is also a practical asset when mounting multiple units side by side or embedding into custom aluminum extrusions; there's no wasted border eating into your layout budget. The USB-C integration is forward-looking: as Jetson Nano and modern ARM-based compute modules shift toward USB-C power delivery and DisplayPort video, this display becomes a plug-and-play element in autonomous kiosk or industrial IoT enclosures. That said, open-frame design means the integrator shoulders all mechanical packaging, thermal management, and environmental sealing. If you're buying this as a bare display to embed, you're also buying responsibility for the frame, mounting hardware, and weatherproofing (if needed).
Technical Highlights:
- Optically Bonded LCD: The fused glass-to-panel construction eliminates the air gap that traditionally traps dust and moisture. Result: touch responsiveness remains stable across 5+ years in high-touch-count environments (mall kiosks, transit platforms). Integrators deploying in humid or splash-prone settings should prioritize this over cheaper non-bonded displays.
- Projected-Capacitive 10-Touch: Multi-finger input enables swipe-based navigation and pinch-zoom for product browsing (retail), map navigation (wayfinding), and document review (self-service kiosks). Glove-friendly, no stylus battery required.
- USB-C Alt Mode Video + Touch: Single connector simplifies the harness from compute to display. For framebuffer-heavy edge appliances (Jetson, Qualcomm Snapdragon), this reduces total cable clutter and port congestion on single-board computers.
- Zero-Bezel Frame: Open-frame design with minimal border means you maximize the active viewing area within a fixed enclosure footprint. Critical when building modular kiosk arrays or mounting displays in tight industrial panels.
- HDMI + DisplayPort Dual Support: Retrofit-friendly with legacy systems; forward-compatible with next-gen compute. No adapter middleware, no active signal conversion.
Deployment Considerations:
- Open-frame enclosure: This is a bare display panel. You supply the mounting frame, bezels (if any), and environmental sealing. Integrators building custom kiosk enclosures or embedding into OEM cabinets should budget mechanical design and assembly labor.
- No onboard power supply: Power delivery is external (12/24VDC wall supply or USB PD negotiation). Confirm your compute platform or frame power budget before committing — 7-inch optically bonded LCD at full brightness consumes 8–15W continuous.
- 7-inch form factor is suited to arm's-length interaction (kiosks, self-service stands, vehicle-mounted terminals). For stationary wall-mount or overhead displays, consider larger displays (10–21 inch) to improve readability at distance.
- Projected-capacitive touch requires capacitive coupling to the user's fingertip. Heavy gloves or thick latex may reduce responsiveness. For medical, food-service, or extreme-environment deployments, verify touch performance with your specific glove set.
- LED backlight brightness is indoor-rated. Not suitable for direct sunlight or outdoor-facing applications without supplementary shade or anti-glare treatment. Test brightness in situ before final installation.
The E970862 is the right choice for integrators building modern edge kiosks, OEM control panels, or retrofit projects that need to preserve HDMI compatibility while gaining USB-C future-proofing. Optical bonding makes it the superior choice for high-touch-count retail and hospitality environments where dust and moisture ingress historically drive display replacement cycles. Browse the ELO Touch catalog for complementary open-frame displays in larger formats and additional connectivity options.
