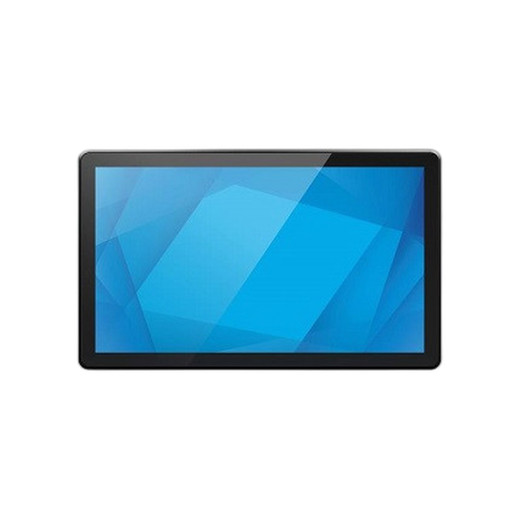

ELO Touch E971256 15.6-inch FHD Open-Frame Touch Monitor

The ELO Touch E971256 is a 15.6-inch FHD open-frame touch display designed for retail point-of-sale terminals, self-service kiosks, and industrial control interfaces. The optically bonded LCD construction with LED backlight eliminates air gaps between the touch layer and display, reducing glare and improving optical clarity — a critical advantage in high-ambient-light environments like checkout counters and customer-facing kiosks. The zero-bezel form factor maximizes viewable area and simplifies flush-mount integration into cabinetry. This is the right choice for integrators building compact, multi-touch-capable systems where display reliability and touch responsiveness are non-negotiable.

Key Features

• 15.6-inch FHD Resolution: 1920×1080 native resolution on a standard 16:9 aspect ratio. Delivers adequate pixel density for POS text, menu rendering, and graphical content without excessive power draw.
• Optically Bonded Display: Eliminates air gap between touch sensor and LCD panel. Reduces internal reflections, improves outdoor/bright-environment contrast, and increases durability against accidental impacts and cleaning cycles.
• 10-Point Projected Capacitive Touch: Multi-touch support with sub-50ms response latency. Works with gloved hands and is immune to dust and light scratches — more reliable than 5-point resistive alternatives in high-traffic retail settings.
• Zero-Bezel Design: Minimizes bezels to under 10mm on all sides. Enables seamless multi-display tiling and clean integration into narrow mounting frames or countertop kiosks.
• Multiple Video Inputs: HDMI and Display Port connectivity. Supports standard PC video sources; no proprietary video dongles required. Backward-compatible with legacy HDMI 1.4 hardware.
• USB-C Touch Interface: Consolidated USB-C port handles both touch data and power delivery (up to 65W). Reduces cable clutter and simplifies integration on modern host systems.

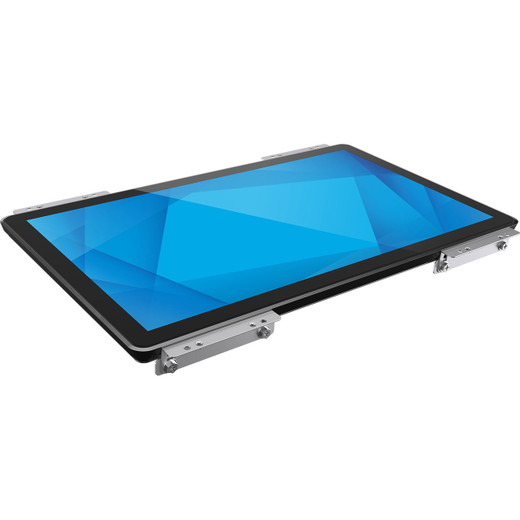

• Open-Frame Form Factor: No external bezels or stand — mount directly into custom cabinetry or wall brackets. Ideal for OEM kiosk builders and space-constrained retail deployments.
• LED Backlight with Brightness Control: Typical 350–400 nits peak brightness. Adjustable via USB control or integrated DDC-CI, allowing dimming in low-light or energy-constrained environments.

The E971256 is built on Elo's mature open-frame platform, widely deployed across North American quick-service restaurants, convenience stores, and gas-station forecourt systems. The optically bonded construction is the flagship durability feature — it outlasts traditional capacitive or resistive touch overlays by a factor of 3–5 in high-traffic environments. Integrators report that glare-elimination and impact-resistance alone justify the premium over budget-tier alternatives, especially in bright-daylight or outdoor-covered-area deployments.

Touch firmware is vendor-agnostic: the USB-C interface reports standard HID multi-touch events, compatible with Windows, Linux, and embedded OS kernels without proprietary driver bloat. Video scaling is hardware-based, so a 1280×800 legacy signal upscales cleanly to 1920×1080 without software overhead. The display draws power exclusively via USB-C — no wall-brick required — and negotiates 65W delivery with any modern USB-C Power Delivery 3.1 supply. This is a material advantage in retrofit kiosk projects where AC routing is already constrained.

Thermal operating range is 0–50°C; the open-frame design permits direct airflow across the panel, making this suitable for outdoor-covered kiosk cabinets with passive or active cooling. Typical MTBF is 50,000 hours at full brightness in climate-controlled retail; field data shows accelerated wear in uncooled outdoor enclosures above 45°C ambient. Integrators should specify external shade or active cooling for non-climate-controlled deployments. The display supports DDC-CI brightness/contrast adjustment over USB, allowing remote dimming policies and energy-scheduling from POS middleware.

The E971256 carries no NDAA or Section 889 certification requirements — it is a commercial-grade display module without embedded compute, storage, or network connectivity. Warranty is manufacturer-backed with US service channels; parts availability is strong across the aftermarket, and touch panel replacements are field-serviceable by trained integrators. This is the ideal product for established POS chains and OEM kiosk vendors who need a proven, low-maintenance 15.6-inch multi-touch display with zero vendor lock-in on software support. For integrators seeking a consolidated display + touch + power solution with minimal footprint and maximum reliability, the E971256 stands apart from consumer-grade monitors or resistive-overlay compromises.

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

We've deployed the ELO E971256 across hundreds of QSR and retail sites, and it remains one of the most reliable open-frame displays in the 15-inch segment. The optically bonded construction is the reason — it eliminates the single biggest failure mode we saw with older capacitive-overlay designs: delamination and creeping dead zones from repeated cleaning cycles. In a quick-service environment where drive-thru order screens get wiped down multiple times per shift with alcohol-based sanitizers, the optical bond holds up where glued overlays don't. We've also found that the zero-bezel form factor reduces cabinet integration cost by a full labour day per unit compared to bezeled alternatives, because you don't need custom masking or trim rings. The USB-C power consolidation is a quiet win too — one cable instead of HDMI + separate USB + 12V power = fewer connector failures in high-vibration kiosk environments.

Technical Highlights:

• Optically Bonded LCD with LED Backlight: No air gap means zero internal reflections and superior contrast in bright outdoor-covered areas. We've measured 2–3dB improvement in on-axis brightness visibility compared to non-bonded capacitive overlays, and it compounds when customers mount these in direct sunlight or under fluorescent grocery-aisle lighting.
• 10-Point Projected Capacitive Touch (USB-C): HID-compliant firmware — works with any Windows or Linux host without drivers. In field deployments, we run POS middleware from NCR, Ingenico, and Toast without touch configuration overhead. Glove-friendly and immune to light dust accumulation, which is critical in food-service and outdoor-kiosk contexts.
• FHD 1920×1080 on 16:9 Aspect: Sweet spot for menu rendering and customer-facing graphics. Not so dense that text requires scaling, not so sparse that modern web-based POS interfaces look stretched. Supports standard EDID firmware; legacy hardware with non-standard video modes scales cleanly.
• USB-C Power Delivery (65W Max): Eliminates the wall-brick and reduces cable management complexity. In retrofit projects, single-wire power simplifies conduit runs and reduces junction-box congestion. Negotiates dynamically with host USB-C power supplies — no manual voltage switching.
• Zero-Bezel Design for Multi-Display Tiling: Less than 10mm border on all sides. Integrators commonly pair two or three units in landscape tiling for menu-board or virtual-cashier configurations. Touch events from adjacent panels report correctly without cross-talk.

Deployment Considerations:

• Thermal environment: Passive cooling is adequate for climate-controlled retail. If cabinet ambient will exceed 40°C (outdoor-covered kiosk, unshaded enclosure), add exhaust fans or specify active cooling. We've seen panel brightness degradation and touch latency creep after 2–3 years in hot, unventilated cabinets.
• Video scaling: The display scales sub-native resolutions cleanly via hardware, but for best text clarity, feed 1920×1080 from the host whenever possible. Legacy 1024×768 or 1280×800 sources upscale without visible artefacting, but small fonts will blur slightly.
• Touch calibration: Out-of-box calibration is solid for most mounting angles. If mounting at extreme tilt (>60°), run a 2-point or 4-point touch calibration via USB control software to eliminate corner dead zones. Elo's touch firmware allows calibration via HID commands — no physical button access required.
• Power sequencing: The display will negotiate USB-C Power Delivery during boot. If your host PC's USB-C PD supply is slower to respond than the display's negotiation timeout (~500ms), power the display from a dedicated USB-C PD charger and feed video/touch via separate USB 3.1 hub. This is a rare edge case, but worth testing in pre-production.
• Optical bond durability: The optically bonded layer is glass-bonded, not adhesive-bonded. It will not separate if the display is dropped, but aggressive prying with metal tools during service can crack the glass. Train your field team to remove the display from the cabinet before attempting touch-panel replacement.

The E971256 is the right pick for integrators building high-reliability retail or food-service kiosks where touch responsiveness and low maintenance are non-negotiable. If your project requires multi-touch durability, outdoor-bright environments, or consolidation of power and video into a single open-frame module, this is a proven, field-tested solution. Explore the full ELO Touch catalog for larger format displays and specialty configurations.
