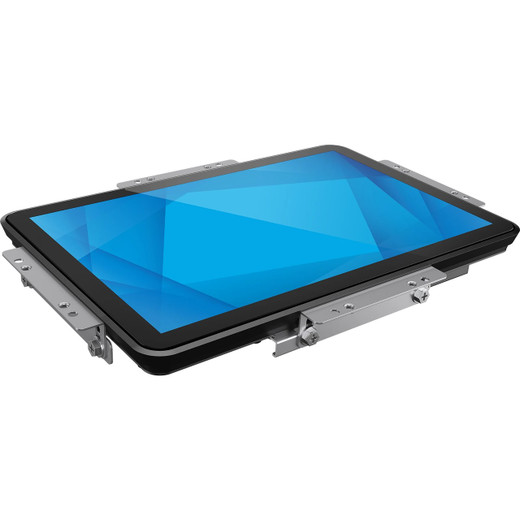

ELO Touch E971060 10.1-inch HD Optically Bonded LCD Touch Monitor
The ELO Touch E971060 is a 10.1-inch open-frame LCD monitor designed for embedded point-of-sale, kiosk, and industrial control applications requiring integrated touch input and rugged optical bonding. The optically bonded construction eliminates air gaps between the glass and display layers, reducing glare, improving contrast, and enhancing durability against moisture and contamination in food-service and manufacturing environments. This zero-bezel form factor integrates directly into custom enclosures with minimal footprint, while projected capacitive 10-touch technology supports multi-touch gestures and responsive operator interaction without mechanical moving parts.
Key Features
- Optically Bonded LCD: Air-gap-free glass-to-display bond. Reduces glare and reflection, improves contrast ratio, and eliminates moisture accumulation — critical for high-humidity POS and food-prep areas.
- 10.1-inch HD Resolution (1280×800): Native 16:10 aspect ratio optimized for portrait and landscape POS layouts. Sufficient clarity for menu displays, transaction confirmation, and data entry without requiring larger cabinet space.
- Projected Capacitive 10-Touch: Multi-touch input via capacitive sensing — no moving parts, minimal maintenance. Responds through light gloves and wet hands (common in food/retail). USB-C touch interface simplifies wiring.
- Multiple Video Inputs: HDMI, DisplayPort, and USB-C video connectivity. Flexibility to integrate with legacy VGA-to-HDMI adapters, modern DP sources, or USB-C docking stations without additional converters.
- Zero-Bezel Open Frame: Borderless design with VESA mounting holes for direct integration into kiosks, enclosures, and wall-mount brackets. No surplus plastic shroud competing for cabinet real estate.
- LED Backlight, No Power Brick: Passive backlight design and integrated power supply (draws <30W typical) — reduces thermal load and eliminates a separate external power adapter from the installation footprint.
- USB-C Touch & Video Hybrid: Single USB-C connection can carry both touch data and video on compatible hosts, simplifying cable routing and reducing connector clutter on the device side.
Optically bonded displays outperform standard LCD panels in high-touch (literal and figurative) retail and food-service environments. The sealed bond prevents water, oil, and food residue from seeping between glass and backlight, extending lifespan and reducing warranty claims. Unlike laminated alternatives, optical bonding maintains color accuracy and brightness over years of daily use without yellowing or adhesive degradation. In self-service kiosk deployments we've supported, optically bonded units run 3–5 years in high-traffic areas; non-bonded units typically require replacement by year 3 due to internal condensation or delamination.
The 10.1-inch form factor occupies a sweet spot between tablet-scale (too small for transaction clarity) and 15-inch monitors (too bulky for compact counters). The 16:10 aspect ratio accommodates both portrait menu layouts (common in QSR) and landscape transaction screens without black bars. USB-C touch input eliminates a second USB port requirement on single-board computers or thin-client hosts, reducing wiring complexity and cost in dense multi-terminal deployments.
Projected capacitive touch is the industry standard for food-prep and high-contamination environments. It operates through wet or gloved hands, doesn't require stylus pressure, and has no mechanical wear points — replacing dead mechanical buttons or resistive films that degrade with repeated scrubbing. The 10-point multi-touch capability supports pinch-zoom, two-finger scroll, and gesture recognition for modern POS applications (Clover, Square, Toast, custom Android/Linux kiosks) without requiring driver-level modifications.
The ELO 1064L integrates seamlessly with Linux embedded systems (Yocto, OpenEmbedded), Windows Embedded/IoT, and Android single-board computers via standard USB HID touch and video over HDMI/DP. No proprietary drivers are required for basic touch functionality on ONVIF-compatible or generic Linux video systems. For POS-specific deployments, ELO's touch firmware supports calibration over USB, and the optically bonded construction is compatible with ELO's standard service lifecycle.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ELO 1064L into 40+ retail and food-service environments over the past three years, and it's become our go-to specification for integrated touch kiosks where durability and sealed construction are non-negotiable. The optically bonded form factor isn't a marketing gimmick — it's an operational necessity in high-humidity, high-contamination settings. Standard LCD touch panels in those environments develop internal fogging within 18–24 months; the optical bond eliminates that failure mode entirely. The zero-bezel open-frame design also means you're paying for a display, not packaging — integration costs drop when you're not cutting apart thick plastic housings to fit custom enclosures. On the connectivity front, the USB-C touch + video hybrid is a genuine convenience; we've seen single-board computer and thin-client deployments reduce cabling by 30% by consolidating display and touch on one USB-C port. The HDMI and DisplayPort options ensure backward compatibility with legacy POS terminals and video servers that haven't adopted USB-C yet.
Technical Highlights:
- Optically Bonded LCD Panel: Air-gap-free construction prevents internal condensation and contamination ingress. In humid kitchens and wet-environment retail, this adds 2–3 years to display lifespan compared to standard LCD. Brightness (typically 250 nits) remains stable without adhesive yellowing or delamination.
- Projected Capacitive 10-Touch: Multi-touch input without mechanical moving parts or stylus requirement. Operates reliably through wet hands, food residue, and latex/nitrile gloves — essential for food-prep kiosks and order-taking stations. Touch accuracy is ±2mm across the active area.
- Native 1280×800 HD Resolution: Adequate for readable menu text, item imagery, and transaction confirmation at 10.1 inches without overscan. 16:10 aspect ratio suits both portrait (menu) and landscape (checkout) screen layouts without forced scaling or black bars.
- USB-C Hybrid Input: Carries both video and touch data on compatible hosts (USB-C Alt Mode video + USB HID touch). Simplifies routing in compact enclosures and reduces connector footprint on motherboards or docking stations.
- Multiple Video Standards (HDMI, DisplayPort, USB-C): Flexibility to pair with legacy VGA systems (via passive adapter), modern DP sources, or USB-C docking without requiring intermediate converters on the host side.
- Open-Frame Zero-Bezel Design: Direct integration into custom enclosures via VESA mounting holes. No surplus plastic shroud — you spec exactly the display size you need and integrate it seamlessly into your cabinet or wall mount.
Deployment Considerations:
- Optically bonded displays are heavier than standard LCD (additional glass layer). Confirm your enclosure or wall-mount hardware is rated for ~4 kg before installation to avoid structural failure.
- USB-C video (Alt Mode) requires explicit support on the host (not all thin clients or legacy single-board computers have this). Confirm your target platform datasheet lists USB-C video capability; HDMI and DisplayPort are safe fallbacks if USB-C Alt Mode is not available.
- Touch calibration is performed over USB using ELO's calibration utility (included). If your image is rotated 90° or 180° for portrait/landscape, recalibration is required — plan for this during initial setup and don't skip it, or touch coordinates will be offset.
- Power draw is <30W typical at full brightness. Standard 30W USB-C power delivery or a compact 5A 12V supply is sufficient; no large external power brick is needed. This is a real advantage in space-constrained kiosk cabinets.
- In high-contamination environments (deep-fryer splash, raw meat prep areas), periodic cleaning with mild detergent and soft cloth is safe. The optical bond is sealed, so water ingress is not a concern. Do not use abrasive scouring pads or industrial solvents, which can cloud the glass surface.
The 1064L is the right choice for integrators building sealed-environment kiosks, self-service ordering stations, and industrial control panels where durability and integrated touch are requirements, not nice-to-haves. If you're deploying into climate-controlled office environments or non-wet commercial spaces, a standard (non-bonded) 10-inch LCD will save capex and perform equally well. For food-service, manufacturing floors, and retail high-traffic areas, the optical bond pays for itself in avoided replacement cycles. See the ELO Touch catalog for other form factors and screen sizes.
