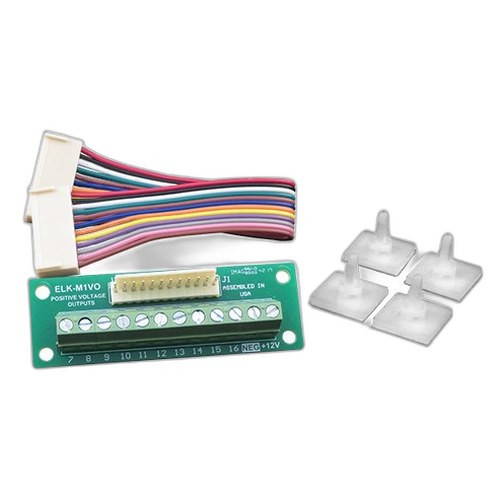

ELK Products ELK-M1VO Voltage Output Conversion Board

Overview

The ELK Products ELK-M1VO is a dedicated voltage output conversion board engineered for M1 control system environments where analog signal conversion is required. This module serves integrators deploying access control, HVAC integration, lighting control, and automation systems that demand precise voltage output management across multiple zones or devices. The ELK-M1VO expands the M1 system's capability to interface with third-party devices requiring 0–10V DC analog control signals, enabling seamless integration into mixed-protocol security and building automation architectures.

Key Features

• Analog Voltage Output Conversion: Converts M1 digital control signals into 0–10V DC analog outputs for compatibility with standard HVAC thermostats, dimmer modules, and proportional control devices
• M1 System Integration: Mounts directly within M1 system architecture; no external power or gateway required for baseline operation
• Multi-Zone Capability: Supports multiple independent output channels, allowing simultaneous control of multiple devices from a single board
• Reliable Signal Processing: Delivers stable, noise-resistant analog signals suitable for long-distance wired runs and commercial HVAC equipment
• Modular Installation: Compact form factor designed for panel-mount or DIN-rail deployment in control enclosures and integration cabinets
• Industrial-Grade Construction: Built to operate in standard commercial security and building automation environments with consistent performance across temperature ranges

Integration & Compatibility

The ELK-M1VO operates within the ELK M1 family of control modules. Integrators working with M1-based systems requiring analog control of HVAC zones, lighting ballasts, damper motors, or other proportional devices will deploy the ELK-M1VO as a signal conversion interface. The board accepts M1 control logic and outputs standard 0–10V DC signals recognized by commercial HVAC controllers, variable frequency drives, and dimmer modules. This configuration eliminates the need for external analog converters or third-party gateway hardware in many single-site or branch-office deployments.

Configuration of output channels and signal mapping is performed through the M1 control panel programming interface, allowing security integrators to assign conversion logic to specific automation events, occupancy sensors, or user commands without additional software licensing or external configuration tools.

Installation & Deployment

Installation of the ELK-M1VO requires integration into the M1 system architecture during initial panel programming or as a retrofit addition to existing installations. The board connects to the M1 control module via defined internal communication, with analog outputs terminated at the target HVAC equipment or proportional control devices. Wiring practices should follow standard industrial low-voltage guidelines, with proper shielding for analog signal runs exceeding 100 feet in electrically noisy environments. Integrators should confirm voltage output channel capacity and load impedance requirements of target equipment prior to deployment to ensure proper signal fidelity.

Eden Phillips

The ELK-M1VO addresses a specific but recurring integration requirement: bridging M1 control systems to analog-input HVAC and building automation equipment. In mixed deployments where analog proportional control is mandated by legacy HVAC specifications or facility standards, this conversion board eliminates the need for standalone external converters, simplifying the bill of materials and reducing potential single points of failure.

Technical Highlights:

• 0–10V DC Output Standard: Directly compatible with standard commercial HVAC thermostats, VAV controllers, and dimmer modules without requiring field voltage scaling
• M1 Native Integration: No external power supply, ethernet bridge, or secondary control interface required; operates as a native M1 module
• Multi-Channel Architecture: Supports simultaneous independent output channels for zone-based or multi-device control scenarios

Deployment Considerations:

• Confirm target device voltage input specifications and load impedance before deployment to prevent signal degradation over extended runs
• Integrate analog output configuration into M1 programming during control panel setup; this avoids rework during commissioning
• Plan wiring infrastructure with shielded cable for analog runs in electrically noisy environments (proximity to motor drives, lighting ballasts) to maintain signal integrity

The ELK-M1VO is a straightforward, reliable solution for integrators who require proportional control output from M1-based systems. It is particularly valuable in facilities with existing analog HVAC infrastructure or where building automation standards mandate 0–10V control. Deploy it early in the system architecture, and coordinate output channel assignments with the overall facility automation strategy.
