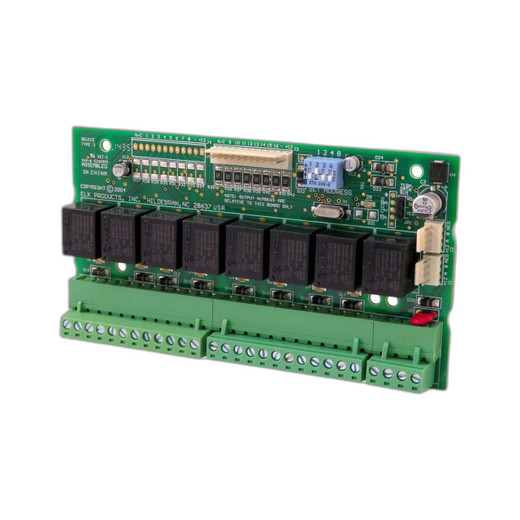

ELK Products ELK-M1XOVR 16 Output Expander Module
Overview
The ELK-M1XOVR is a 16-output expansion module purpose-built to extend the control reach of ELK Products M1 security and automation systems. It provides eight voltage outputs and eight relay outputs in a single module, enabling distributed switching of lighting, access control devices, door locks, sirens, and auxiliary equipment across multi-zone installations without requiring a larger control panel.
Key Features
- 8 Relay Outputs: Each relay can switch higher-capacity loads — motors, solenoids, heavy-duty lighting circuits — making the ELK-M1XOVR suitable for industrial and commercial installations where voltage-only outputs would be undersized.
- 8 Voltage Outputs: Low-voltage switching for status LEDs, electronic locks, access readers, and control signals — eliminating the need for separate relay banks when you need mixed-load density.
- M1 Expansion Bus Integration: Connects directly to the M1 control panel's expansion header, no serial protocol conversion or external wiring harness complexity — the module is recognized automatically by the panel firmware.
- Modular Density: 16 outputs from a single module keep the installation footprint small and wiring labor minimal compared to daisy-chaining multiple single-output relays or purchasing a second control panel.
- Mixed-Load Flexibility: A single installation can deploy both relay and voltage outputs to suit the requirements of the specific devices on each zone — locks may need relay-switching power; readers may need low-voltage control signals.
- Commercial and Residential Compatibility: Suitable for retrofit installations in existing M1 deployments, expansion of smaller residential systems, and new multi-zone commercial security and building automation designs.
Integration & Compatibility
The ELK-M1XOVR (often searched as ELK M1XOVR) is engineered exclusively for ELK M1 control panels. Installers deploying the M1 platform can add output capacity without rearchitecting their network topology or changing their VMS integration strategy — the outputs remain under M1 firmware control and alarm logic.
This approach is common in distributed access control and building automation, where a main panel handles decision-making and zone expansion modules handle the field switching. The result is a cleaner wiring diagram and faster commissioning than running all control lines back to a central panel.
Deployment Considerations
The ELK-M1XOVR is not a standalone device — it requires an active M1 control panel to function. It is ideal for integrators who have already standardized on the M1 platform and need to add output ports to an existing installation or scale a system across multiple zones. For buyers evaluating whether to expand with an M1XOVR or upgrade to a larger M1 variant, the decision typically hinges on wiring labor (fewer runs with a remote module) versus upfront hardware cost.
Frequently Asked Questions
Q: Can the ELK-M1XOVR be mounted in an existing M1 control panel enclosure?
A: The ELK-M1XOVR is designed as a plug-in module for the M1 Expansion Bus. Physical mounting location and enclosure compatibility depend on your specific M1 panel model and available expansion slots. Consult the M1 panel documentation or your integrator for layout guidance.
Q: What is the maximum number of ELK-M1XOVR modules I can connect to a single M1 panel?
A: Expansion capacity is determined by the M1 control panel's available expansion bus slots and the firmware's addressable output limits. Refer to your M1 panel datasheet or contact the control panel manufacturer for the specific maximum.
Q: Are all 16 outputs individually controllable via the M1 firmware?
A: Yes. Both the relay outputs and voltage outputs are individually addressable within the M1 control panel's programming environment, allowing you to assign each output to zones, triggers, or automation rules.
Q: Do I need a separate power supply for the ELK-M1XOVR?
A: The ELK-M1XOVR derives its control logic power from the M1 Expansion Bus; however, the relay and voltage outputs may require external auxiliary power for the loads they switch. Your system design must account for the power draw of the devices controlled by each output.
Q: Is the ELK-M1XOVR field-programmable, or does it require factory configuration?
A: The module itself is not field-programmable. Its function is configured entirely through the M1 control panel's firmware and programming interface, where you assign outputs to zones and define their control logic.
Q: Can I mix relay and voltage outputs on the same module, or do I need separate modules for each type?
A: The ELK-M1XOVR combines both types on one module — 8 relays and 8 voltage outputs. You do not need separate modules; a single unit covers both requirements.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The ELK-M1XOVR hits a specific niche: when you've already committed to an M1 control panel and you need more output density without replacing the entire panel. The 8-relay, 8-voltage split is intentional — it covers the dual-load-type scenarios you find in multi-zone commercial installations.
Technical Highlights:
- Dual Output Architecture (8 Relay + 8 Voltage): Eliminates the need to choose between relay-only and voltage-only expansion modules. On a single M1XOVR, you can switch a heavy solenoid lock on relay output 1 and send a low-voltage reader control signal on voltage output 1 — no second module, no second expansion slot wasted.
- M1 Expansion Bus Direct Connection: Avoids serial gateway overhead. The module plugs into the M1's native expansion header and is recognized immediately — no protocol conversion, no additional latency, no external power relay boxes.
- 16 Individually Addressable Outputs: All 16 ports are independently controlled through M1 firmware, so you can apply zone logic, event triggers, and automation rules to each output without cross-talk or shared control lines.
Deployment Considerations:
- The ELK-M1XOVR is a satellite — it has no intelligence of its own and no local configuration. Everything happens at the M1 panel. If your M1 firmware is old or your installer is unfamiliar with output routing, configuration friction can spike.
- Expansion bus bandwidth is finite. If you're daisy-chaining multiple modules (say, three M1XOVRs on one panel), monitor the M1's expansion load — very dense polling can introduce minor latency to output switching, though in most security and access scenarios this is immaterial.
- Power is the gotcha: the module control logic runs off the bus, but each output's load (locks, lights, sirens) needs external 12V or 24V auxiliary power. Don't assume the M1's built-in power supply can feed all 16 outputs at full draw — calculate actual amp draw per circuit and provision a dedicated power distribution board.
Best fit: retrofit expansion for existing M1 deployments, multi-zone commercial access control, and building automation where you need to avoid a panel upgrade. Not suitable as a standalone device or for non-M1 platforms.
