Altronix EFLOW102NX P/S & ACM8CB 100V - EFLOW102NA8DJP

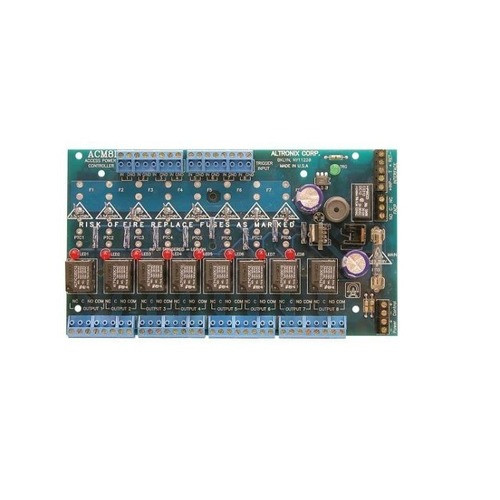

Altronix EFLOW102NA8DJP Integrated Power Supply and ACM8CB Module

Overview

The Altronix EFLOW102NA8DJP is a compact, integrated power supply and access control module designed to efficiently distribute power to multiple surveillance or access control devices from a single 100-240VAC input. This unit is engineered for installations where space is at a premium and a clean, organized power distribution is critical, such as in network closets or small equipment enclosures. It simplifies wiring by consolidating power distribution and access control relay functions into one chassis, reducing installation time and potential points of failure. The EFLOW102NA8DJP is a key component for powering devices like IP cameras, access control readers, and door strikes in commercial and industrial environments.

Compatibility

This unit is designed to integrate with Altronix power distribution systems and specifically supports the Altronix ACM8CB module for access control relay functions. It is suitable for powering a wide range of low-voltage devices including IP cameras, network switches, and access control readers that require a regulated 12VDC or 24VAC output. The integrated ACM8CB module is compatible with most access control systems that utilize dry contact or Form C relay outputs for door control.

Installation Notes

Input voltage range is 100-240VAC, 50/60Hz. Output voltage is selectable between 12VDC and 24VAC. The unit requires a dedicated circuit for input power. Ensure proper ventilation around the chassis to prevent overheating, especially when powering multiple high-draw devices. The ACM8CB module requires connection to the main power supply output and the access control system's trigger inputs for operation.

What's in the Box

• 1x Altronix EFLOW102NA8DJP Power Supply and ACM8CB Module
