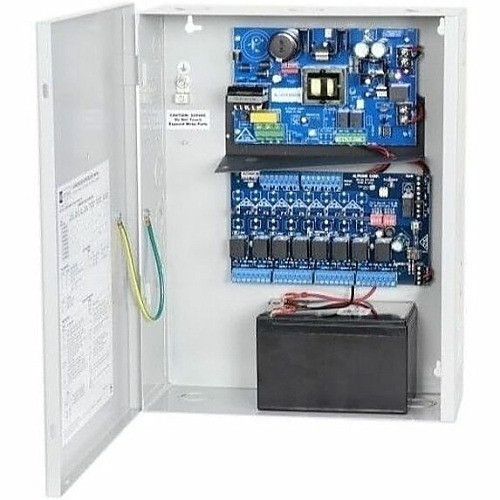

Altronix AL1012ACMCBJ220 Power Distribution Module
Overview
The Altronix AL1012ACMCBJ220 is a 12VDC, 10A power distribution module designed to provide regulated power to multiple surveillance devices from a single 220VAC input. This unit is ideal for centralizing power delivery in larger installations, reducing wiring complexity and simplifying maintenance. The AL1012ACMCBJ220 is specifically engineered for applications requiring reliable, fused power outputs for cameras, access control panels, or other low-voltage security equipment.
Compatibility
This power distribution module is designed to accept a 220VAC input and output 12VDC power. It is compatible with any low-voltage DC powered surveillance or security equipment that requires up to 10A total current draw, provided the individual device power requirements do not exceed the fused output limits. It integrates seamlessly into existing power infrastructure where 220V is available and 12VDC distribution is needed.
Installation Notes
Requires a 220VAC input connection. Output terminals are fused to protect individual devices and the main power supply. Ensure total current draw does not exceed the 10A rating of the unit. Installation should be performed by qualified personnel familiar with AC power wiring and low-voltage DC distribution.
What's in the Box
- 1x Altronix AL1012ACMCBJ220 Power Distribution Module
- 1x Installation Manual
