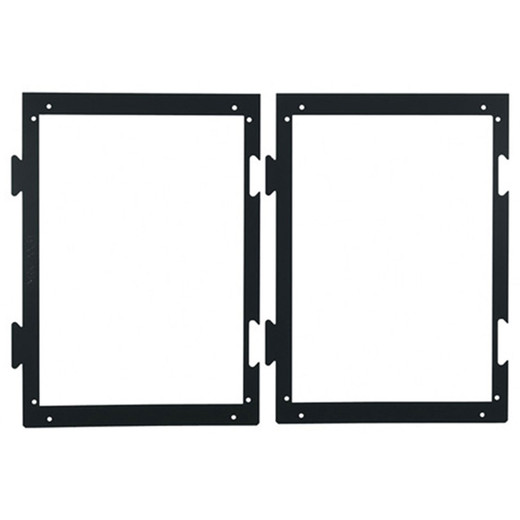

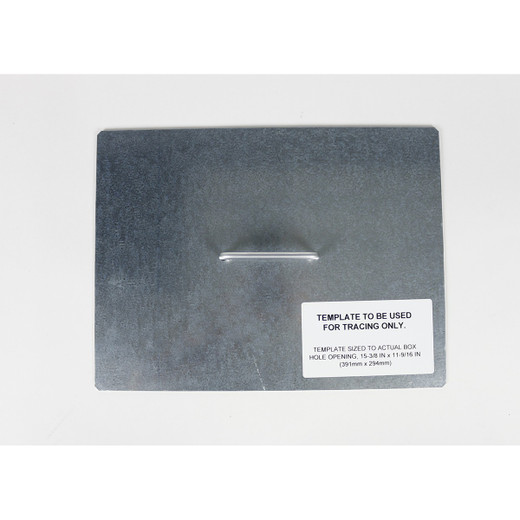

Middle Atlantic EFB-TEMPLATE BOX Hole Cut Template

Overview

The Middle Atlantic EFB-TEMPLATE is a hole-cut template designed to guide field installation of EFB series enclosure boxes into walls, panels, or millwork. Rather than measuring and scribing knockout dimensions manually — a process that introduces misalignment and wasted material — the EFB-TEMPLATE provides a ready-made tracing guide that produces consistent, repeatable cutouts sized exactly for EFB-series boxes. It is the correct accessory when a clean, accurate installation matters and rework is not an option.

Compatibility

Designed for use with Middle Atlantic EFB-series enclosure boxes. Verify your specific EFB model number against the template before cutting — EFB box dimensions vary by depth and frame size within the series, and using a mismatched template will produce an undersized or oversized aperture. Consult the Middle Atlantic product line or the applicable EFB product page to confirm the correct template variant for your enclosure model.

Installation Notes

Tape or tack the template flush against the mounting surface before marking. Score the perimeter cleanly with a utility knife or fine-tipped marker; do not flex or stretch the template stock during tracing as dimensional error accumulates at corners. Cut to the inside of the scored line when using a jigsaw or oscillating tool to preserve the fit tolerance. The template is a single-use consumable on most installations — order one per rough-in location. For rack and enclosure accessories, confirm wall material and stud spacing before committing to a cut location.
