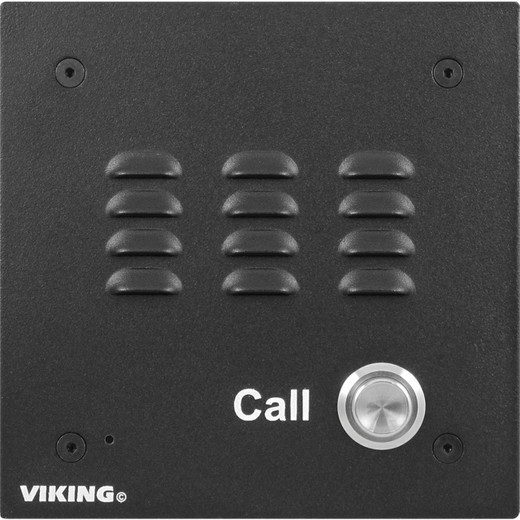

Viking Electronics SP242-E10 VoIP Door Entry Phone Board
Overview
The Viking Electronics SP242-E10 is a board-only VoIP door entry phone designed for SIP-based access control and intercom deployments where you need reliable two-way voice communication at doors, gates, and controlled entry points. Unlike boxed entry phone assemblies, the SP242-E10 ships as a bare circuit board — the right choice when you're integrating into a custom enclosure, a retrofit housing, or a flush-mount installation that already has the mechanical shell sorted out. It draws under 4 watts on a standard 802.3af PoE port, supports SIP 2.0, and handles G.722 wideband audio for noticeably cleaner voice intelligibility than narrowband-only devices. It's part of Viking's proven Viking Electronics entry phone line, and fits directly into the E-10 family alongside the E-20, E-30, and E-32 IP models.
Key Features
- PoE Class 1 Power (<4W): Draws less than 4 watts from any IEEE 802.3af-compliant switch port — the lowest PoE class tier. That means you can power this board from a modest PoE injector or a budget managed switch without worrying about per-port power budgets. No power supply, no transformer, no additional wiring run to the door.
- 90 dB SPL at 1 Meter: 90 dB SPL at 1m is loud enough to cut through moderate ambient noise in lobbies, loading docks, and covered entryways. If your deployment is a loud manufacturing floor or outdoor area with heavy equipment nearby, evaluate whether supplemental alerting is needed — but for most commercial entry points this level is adequate without additional amplification.
- G.722 Wideband Audio: G.722 codec support (alongside G.711u and G.711a) means the audio path can carry HD-quality voice when both ends of the SIP call support it. Compared to G.711-only hardware, G.722 delivers noticeably crisper speech — an advantage in facilities where identity verification at the door matters and garbled audio causes access delays.
- SIP 2.0 (RFC 3261) Compliance: Standard SIP 2.0 registration means this board connects directly to any compliant IP PBX — Asterisk, FreePBX, 3CX, Cisco UCM, and similar platforms. No proprietary gateway required. Calls from the entry point ring to a desk phone, softphone, or smartphone extension just like any other SIP endpoint on your system.
- 2-Amp Relay Contacts: The onboard relay handles up to 2 amps, which is sufficient for most electric door strikes, mag-lock releases, and Viking's own SL-2 strobe light. This gives you door release capability directly from the board without adding a separate relay module — a meaningful simplification in tight enclosure builds.
- Up to 5 Programmable Numbers: The SP242-E10 supports programming up to 5 call destinations. In a multi-tenant or multi-department building, that means a visitor can reach the front desk, a secondary security station, or a mobile phone without any dial-pad input — directory-style routing handled at the hardware level.
- -40°F to 140°F Operating Range: The -40°F to 140°F (-40°C to 60°C) temperature range covers unheated vestibules, cold-climate exterior installations with weatherproof enclosures, and sun-exposed mechanical rooms. Few competing boards are rated this wide — it's one of Viking's consistent design choices across the E-IP family and reduces the need for cabinet heaters in most North American climates.
- Single RJ45 + Gel-Filled Butt Connectors: The SP242-E10 terminates network and power on one RJ45 10/100 port, and field connections use three gel-filled butt connectors — the type designed for direct burial and wet environments. If the board is going into a weatherproof enclosure with conduit runs, those connectors handle moisture ingress at the splice without requiring additional weatherproofing tape.
- Viking Device Manager Compatible: Parallel programming, firmware updates, and status polling can be handled through Viking Device Manager software. On multi-door deployments, managing configuration changes and firmware revisions from a central console versus unit-by-unit is a real time saver during commissioning and maintenance cycles.
Integration and Compatibility
The SP242-E10 (often searched as SP242 E10) integrates into any SIP 2.0-compliant IP telephony environment. The 100BASE-Tx network interface and RFC 3261 SIP stack make it compatible with standard enterprise PBX platforms and hosted VoIP services that accept external SIP registrations. Pair it with VoIP intercom and access control infrastructure — the onboard relay handles door hardware directly, eliminating the need for a separate door controller in single-door deployments. For multi-door or multi-building rollouts, the Viking Device Manager parallel programming capability means you're not configuring boards one at a time on-site.
Power comes entirely from the network drop via IEEE 802.3af PoE — review your PoE switch port count and per-port budgets during design; at under 4W per board the power demand is minimal. Audio codec negotiation covers G.711u, G.711a, and G.722, so the board adapts to whatever your PBX supports without manual codec locking in most deployments. FCC Part 15, Canada ICES-3 Class A, and CE regulatory marks confirm the board meets commercial deployment requirements in North American and European markets. For guidance on building out a complete door entry and intercom architecture, the access control buying guide covers common topology decisions. For enclosure selection and mounting hardware to house the SP242-E10 board, see compatible enclosures and mounting hardware.
Frequently Asked Questions
Q: What PBX systems does the SP242-E10 work with?
A: The SP242-E10 is SIP 2.0 (RFC 3261) compliant, so it registers with any standard SIP PBX or hosted VoIP platform — including Asterisk, FreePBX, 3CX, Cisco Unified Communications Manager, and similar systems. No proprietary gateway is needed.
Q: Does the SP242-E10 require a separate power supply?
A: No. The board is powered entirely via IEEE 802.3af PoE from a single RJ45 connection. It draws less than 4 watts (PoE Class 1), so it works with virtually any 802.3af-capable switch port or injector — no separate power supply or transformer required.
Q: Can the SP242-E10 release a door strike or mag-lock directly?
A: Yes. The board includes 2-amp relay contacts that can drive most standard electric door strikes and mag-locks, as well as Viking's SL-2 strobe light accessory. Single-door release is handled onboard without a separate relay module.
Q: How many call destinations can be programmed on the SP242-E10?
A: Up to 5 programmable numbers can be configured. This allows calls to route to a front desk, secondary station, or mobile phone extension without visitor dial-pad input.
Q: Is the SP242-E10 suitable for outdoor installation?
A: The board itself is rated for -40°F to 140°F (-40°C to 60°C) operating temperatures, and field connections use gel-filled butt connectors rated for wet environments. However, as a board-only product it requires installation inside an appropriate weatherproof enclosure for outdoor use — the board alone is not rated for direct exposure to precipitation.
Q: What audio codecs does the SP242-E10 support?
A: The SP242-E10 supports G.711u (PCMU), G.711a (PCMA), and G.722 wideband audio. G.722 delivers HD-quality voice clarity when supported by your PBX, which improves speech intelligibility compared to narrowband G.711-only devices.
The SP242-E10 is one of those products that solves a specific integration problem cleanly: you need a SIP door entry endpoint, you already have an enclosure or flush-mount trim plate, and you don't want to pay for a finished unit when the board is what you actually need. The -40°F to 140°F operating range is the spec I point to first — most unheated northern-climate vestibules and mechanical chase installations will hit those extremes, and Viking builds the thermal tolerance in rather than leaving it to the installer to spec a cabinet heater.
Technical Highlights:
- PoE Class 1 (<4W): Lowest PoE class means this board imposes almost no burden on your switch power budget. On a 30W PoE port budget you could theoretically run seven of these — relevant when wiring a multi-door apartment lobby or multi-entry commercial facility from a single IDF closet switch.
- G.722 Wideband Audio: G.722 at 16kHz sample rate versus G.711's 8kHz is audible at the intercom. In a clinic or professional services lobby where staff need to confirm visitor identity before releasing a door, that voice clarity difference reduces access errors and repeated call-backs.
- 2-Amp Relay + Up to 5 Programmable Numbers: The relay handles door hardware directly and the five-number directory means you can cover a full small building's reception routing from one board — front desk, manager, security, after-hours mobile — without a separate door controller or IVR.
Deployment Considerations:
- This is a board-only SKU — you are responsible for enclosure selection, sealing, and speaker/mic integration if the target housing doesn't include them. Confirm physical fitment against the 5″ x 5″ x 2.25″ board footprint before ordering.
- The gel-filled butt connectors are rated for wet environments but this is not a substitute for proper weatherproof enclosure selection on outdoor installations. The board has no IP rating of its own; the enclosure you choose provides all ingress protection.
The SP242-E10 is the right fit for system integrators building custom-housed entry points into multi-tenant residential buildings, secure office suites, or industrial facilities — anywhere the finished E-10-IP enclosure doesn't match the architectural or mechanical requirements of the install.
