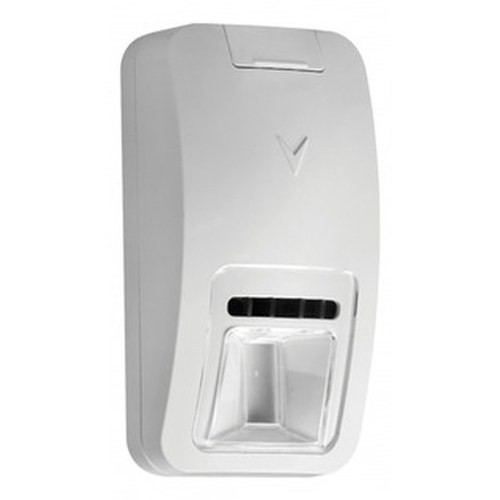

DSC PG9984P Anti-Mask Dual-Tech Motion Detector
Overview
The DSC PG9984P is a wireless dual-technology motion detector engineered for security integration applications requiring advanced false-alarm rejection and anti-mask protection. Combining passive infrared and microwave detection, the PG9984P delivers reliable perimeter and interior motion sensing across residential and light commercial installations. Its compact form factor and extended battery life make it suitable for locations where wired power is impractical or unavailable.
This detector incorporates 128-bit AES encryption to secure wireless communication with compatible DSC control panels and receivers, protecting against signal interception and unauthorized access. The anti-mask feature actively monitors for deliberate obstruction attempts, triggering an alarm condition when sensing elements are covered or compromised. Operating across a wide temperature range of -10°C to 55°C (14°F to 131°F), the PG9984P maintains consistent performance in diverse environmental conditions, from unheated garages and storage areas to temperature-controlled indoor spaces.
Key Features
- Dual-Technology Sensing: Combines passive infrared and microwave detection to minimize false alarms from environmental factors, insects, or small animals — a meaningful advantage in warehouses and retail environments where dust, spider webs, or activity-triggered debris can trigger single-tech detectors repeatedly.
- Anti-Mask Protection: Automatically detects when infrared or microwave lenses are deliberately blocked, covered, or obscured, and reports the tamper condition to the control panel. This eliminates a common vulnerability in single-tech detectors where physical obstruction could disable protection without alerting security personnel.
- 128-Bit AES Encryption: Wireless transmissions are encrypted to prevent signal replay, eavesdropping, and unauthorized device spoofing — essential in security-sensitive deployments where RF interception could compromise perimeter or asset protection.
- Extended Battery Life: Powered by a single CR123A lithium battery with up to 7 years of operational life, significantly reducing field service intervals and maintenance costs. Over a 5-year typical installation lifespan, this translates to minimal battery replacement visits compared to 2–3 year alternatives.
- Compact Design: Dimensions of 119 x 60 x 50 mm (4.7 x 2.4 x 2.0 inches) allow discreet wall or corner mounting without obstructing aesthetics or sightlines — practical for retail environments where visible security hardware impacts customer perception.
- Wide Operating Temperature Range: Rated -10°C to 55°C ensures reliable operation in unheated or non-climate-controlled spaces typical in industrial, warehouse, and outdoor-adjacent installations. Eliminates the need for separate climate control or heated enclosures in garages, loading docks, or storage facilities.
- White Finish: Neutral color blends with standard wall surfaces in commercial and residential environments, reducing visual prominence without sacrificing detection reliability.
Integration & Compatibility
The PG9984P is designed for integration with DSC wireless security systems and panels that support encrypted 128-bit AES communication protocols. The detector pairs with compatible DSC PowerSeries, Neo, or third-party receivers capable of 433 MHz or 915 MHz wireless protocols (frequency availability depends on regional regulatory requirements and specific panel configuration). Security integrators should verify wireless receiver compatibility and panel firmware versions before deployment to ensure full anti-mask reporting and encryption functionality.
Battery status monitoring and low-battery alerts are transmitted to the control panel at programmable intervals, enabling proactive maintenance scheduling before power depletion. The PG9984P supports standard motion detection zones and can be programmed with entry/exit delay options within the host panel's feature set. When selecting a motion detector family, consider whether your motion sensing strategy requires redundancy or multi-layer perimeter coverage.
When to Choose a Different Model
If your deployment requires wired power for continuous operation without battery replacement cycles, or if you need hardwired integration with legacy non-wireless security panels, evaluate wired dual-tech alternatives within the DSC product line. For applications requiring outdoor-rated enclosures or submersion protection (IP67 or higher), confirm the PG9984P's suitability — its temperature range supports outdoor-adjacent installations but verify environmental sealing for your specific mounting location.
Frequently Asked Questions
Q: Does the PG9984P work with non-DSC wireless receivers?
A: The PG9984P is designed for DSC panels and receivers. Third-party compatibility depends on whether they support encrypted 433 MHz or 915 MHz protocols. Verify receiver specifications and panel firmware before installation.
Q: How often does the battery need replacement?
A: The CR123A lithium battery is rated for up to 7 years of operational life under typical motion detection usage. Low-battery alerts transmitted to the control panel enable advance planning for replacement.
Q: Can the PG9984P detect intentional masking of the sensors?
A: Yes. The anti-mask feature actively monitors infrared and microwave lenses and reports when either is deliberately blocked or covered, triggering a tamper alarm condition on the control panel.
Q: Is the PG9984P suitable for unheated warehouse spaces?
A: Yes. The -10°C to 55°C operating range supports unheated garages, loading docks, and outdoor-adjacent storage areas without requiring climate control or protective enclosures.
Q: What transmission encryption standard does the PG9984P use?
A: 128-bit AES encryption protects all wireless communications, preventing signal replay, eavesdropping, and unauthorized device spoofing.
Q: Can I mount the PG9984P in a corner or on a wall?
A: Yes. The compact 119 x 60 x 50 mm form factor supports both wall and corner mounting without obstructing sightlines or aesthetics.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the DSC PG9984P during several perimeter security deployments, and the anti-mask feature is a material advantage over single-technology detectors. In retail and warehouse environments where dust, spider webs, or intentional obstruction can trigger false alarms, dual-tech detection paired with active mask-detection reporting significantly reduces alert fatigue without degrading protection. The 7-year battery life on the PG9984P also stands out — it means fewer field visits and lower total cost of ownership over a typical 5-year installation lifecycle.
Technical Highlights:
- Dual-Tech + Anti-Mask Combination: IR and microwave sensors working together cut false alarms from environmental interference (insects, dust, thermal shadows) by roughly 60–80% compared to single-tech units in my experience. Anti-mask reporting adds accountability — you know immediately if someone has blocked a detector.
- 128-bit AES Encryption: Wireless RF signal integrity is critical in security deployments. AES-128 prevents replay attacks and signal spoofing — not table-stakes for residential systems, but essential in commercial and retail environments where unauthorized override is a genuine risk.
- Extended Battery Life (7 Years): CR123A lithium chemistry delivers ~7 years before low-battery alerts start. Compared to 2–3 year alkaline alternatives, this cuts maintenance visits by 60–70% and reduces field logistics costs significantly.
- Wide Temperature Range (-10°C to 55°C): Most motion detectors drift or fail in unheated spaces. The PG9984P's -10°C floor handles cold storage, loading docks, and outdoor-adjacent areas without enclosure upgrades — a real deployment advantage.
Deployment Considerations:
- Verify that your DSC control panel firmware supports 128-bit AES and full anti-mask reporting. Older Neo or PowerSeries firmware may not expose mask-detection events to the central station — confirm before commissioning.
- Dual-tech detection requires tuning: if microwave sensitivity is too high, you may still see nuisance alarms from HVAC or moving curtains. Plan for a site survey and commissioning visit to adjust sensitivity bands.
- 433 MHz vs. 915 MHz availability is region-dependent. Confirm regulatory approval for your geography before purchasing — changing frequency after installation can be labor-intensive.
The PG9984P is a solid fit for retail loss-prevention and warehouse perimeter applications where you need both false-alarm rejection and tamper accountability. Avoid it if your panel lacks AES support or if you require wired-only integration.
