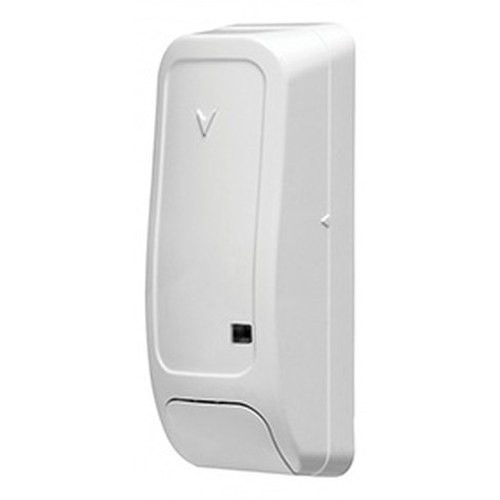

DSC PG9309 Mini Door/Window Contact Sensor
Overview
The DSC PG9309 is a wireless door and window contact sensor engineered for perimeter protection in spaces where standard-sized contacts compromise aesthetics or fit within architectural constraints. At just 65 × 28 × 17 mm (2.6 × 1.1 × 0.7 inches), the PG9309 delivers reliable open/close detection without the visual footprint of larger sensors—a decisive advantage when frameless glass doors, narrow casement windows, or modern architectural finishes dominate the entry points. The sensor operates across -10°C to 55°C (-14°F to 131°F), supporting both indoor deployments and climate-controlled outdoor installations. As a wireless component in the DSC product ecosystem, the PG9309 integrates into DSC control panels and compatible third-party platforms that support DSC wireless protocols.
Key Features
- Compact 65 mm Profile: Measures 65 × 28 × 17 mm—small enough to mount on frameless glass doors, low-profile window casings, and narrow frame edges where standard 3-inch contacts would be visually obtrusive and physically problematic. This compactness translates directly to cleaner installations on high-end residential and modern commercial interiors.
- Dual Mounting Methods: Adhesive or screw fastening means you choose the installation approach that fits the material—adhesive eliminates drilling on finished frames (reducing labor time and material damage), while screw mounting provides mechanical permanence on wood frames and high-traffic entry points where adhesive alone may weaken over years of door flex.
- 128-bit AES Encryption: Wireless transmissions use industry-standard 128-bit AES encryption, protecting signal integrity against eavesdropping and replay attacks in multi-zone or networked deployments. This encryption level is the industry norm for wireless security sensors and aligns with DSC and compatible system requirements.
- Extended Battery Life—5 Years: Single CR2032 lithium cell powers the sensor for up to 5 years under normal use conditions. CR2032 batteries are inexpensive and stocked everywhere, making replacement straightforward and cost-effective. The 5-year service life aligns neatly with typical contract maintenance cycles, reducing unplanned service calls.
- White and Brown Finish Options: Two color choices—white and brown—allow the PG9309 to blend visually with light-colored or natural wood frames and casings, supporting installations where visible security hardware must disappear into the décor.
- Wide Temperature Range: Functions reliably from -10°C to 55°C without performance degradation. This range accommodates temperature swings in climate-controlled spaces, sunlit entry areas, and transitional zones (such as vestibules or unheated loading docks) where freezing or heat stress might otherwise compromise reliability.
Integration & Compatibility
The PG9309 is a wireless sensor component designed for integration into DSC control panels and third-party platforms supporting DSC wireless protocols. The 128-bit AES encryption ensures secure signal transmission within networked security ecosystems. Integrators should verify compatibility with their target control panel or hub—DSC and some third-party systems support DSC wireless sensors natively, but not all panels accept DSC wireless devices. Testing before large-quantity deployments is essential to avoid integration delays.
Deployment Considerations
The PG9309's minimal footprint makes it invaluable for frameless sliding glass doors, modern casement windows, and glass entry systems where standard larger contacts would conflict with the architecture. Surface adhesive mounting enables rapid deployment without hole drilling, reducing installation complexity and timeline. For permanent installations on wood frames, screw mounting provides mechanical robustness. Verify door/window swing clearance before final placement to prevent accidental activation or signal obstruction from the magnet arm. Battery replacement is straightforward—the CR2032 cell is widely available, and the replacement cycle aligns with standard security system maintenance intervals.
Frequently Asked Questions
Q: Can the PG9309 be installed on frameless glass doors?
A: Yes. The compact 65 mm form factor and dual mounting options (adhesive or screw) make it suitable for frameless glass doors and low-profile casings where standard larger contacts would not fit or would be visually objectionable.
Q: How long does the CR2032 battery last?
A: Under normal use conditions, a single CR2032 lithium cell supports up to 5 years of continuous operation. CR2032 replacement batteries are inexpensive and widely available.
Q: What control panels does the PG9309 work with?
A: The PG9309 is engineered for DSC control panels and compatible third-party systems supporting DSC wireless protocols. Verify compatibility with your target panel before specifying large quantities, as not all security system platforms accept DSC wireless sensors.
Q: Can I use both adhesive and screw mounting on the same installation?
A: The PG9309 supports either adhesive or screw mounting. Adhesive is faster for damage-free installation on finished frames; screw mounting provides permanent mechanical attachment on wood. Use one method per sensor rather than combining both.
Q: What is the operating temperature range?
A: The PG9309 operates reliably from -10°C to 55°C (-14°F to 131°F), making it suitable for climate-controlled indoor spaces and outdoor installations in moderate climates.
Q: Does the PG9309 support encryption?
A: Yes. Wireless transmissions use 128-bit AES encryption, protecting signal integrity against eavesdropping and replay attacks in networked security deployments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the DSC PG9309 across multiple residential and small commercial integrations where standard sensor housings are either physically impossible to fit or visually incompatible with modern architecture. The 65 mm compact profile is the differentiator here—frameless sliding glass doors, narrow casement windows, and glass entry systems that would reject a 3-inch contact sensor accept the PG9309 without compromise. The sensor delivers the same functional reliability as larger contacts while keeping the installation visually clean.
Technical Highlights:
- 128-bit AES Encryption: Protects wireless signals from eavesdropping and signal manipulation in multi-zone deployments—the encryption standard buyers expect in 2024.
- CR2032 Battery with 5-Year Service Life: CR2032 cells are inexpensive (often under $2 each) and stocked everywhere. The 5-year interval aligns perfectly with annual or bi-annual security system maintenance cycles, eliminating surprise battery failures and unplanned service calls.
- Adhesive + Screw Dual Mounting: Adhesive mounting eliminates drill-out requirements on finished frames and glass edges (reducing labor and material damage); screw mounting secures the sensor mechanically on wood frames and high-traffic entry points. You choose the method that fits the material.
Deployment Considerations:
- Verify DSC wireless protocol compatibility with your target control panel before committing to bulk orders—not all panels support DSC wireless sensors natively.
- Test adhesive mounting on a sample frame or window material to confirm bond durability if the installation will experience temperature cycling or humidity extremes (sunlit glass doors are the worst case).
- Ensure magnet arm clearance when the door or window swings fully—accidental mechanical obstruction or misalignment of the reed switch will cause false alarms or failure to detect.
The PG9309 is the right choice when aesthetics are non-negotiable—modern residential builds with frameless glass, contemporary office entrances with narrow casement windows, and retrofit projects on finished wood frames where visible security hardware is out of the question. For standard residential and commercial perimeter protection where form factor is not a constraint, standard larger contacts typically cost less per unit and offer comparable functionality.
