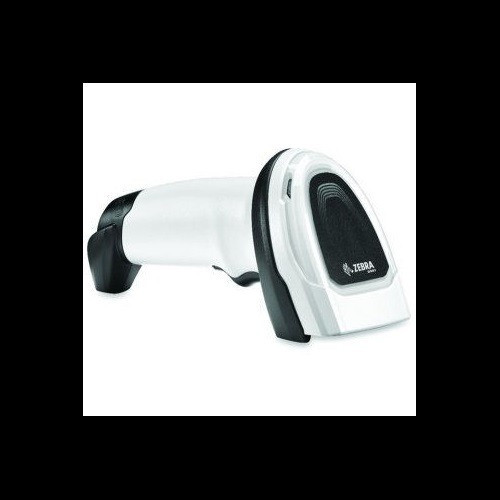

Zebra DS8108-SR00007ZZWW Corded 1D/2D Standard Range Area Imager

The DS8108-SR00007ZZWW is a corded, standard-range 1D/2D handheld area imager purpose-built for high-throughput retail checkout and loyalty scanning environments. It combines an 800 MHz processor, a 1280 x 960 pixel megapixel imaging sensor, and Zebra's proprietary PRZM Intelligent Imaging engine to decode damaged, crinkled, faded, or poorly printed barcodes — including electronic barcodes on low-brightness mobile screens — with a consistency that conventional laser scanners and entry-level imagers cannot match. If your checkout lanes are backing up because cashiers are re-scanning items or manually keying codes, this is the scanner to benchmark.

Overview

Part of the Zebra DS8100 Series, the DS8108-SR00007ZZWW ships in the corded Twilight Black configuration with cable required separately. Its scan range extends to 24 inches (61 cm), enabling cashiers to sweep items from a customer's cart without leaving the cash-wrap — a tangible speed gain during high-volume shifts. The unit weighs just 5.4 oz. (154 g) in the corded configuration, reducing fatigue across long shifts, and its compact 6.6 in. H x 2.6 in. W x 4.2 in. D footprint fits standard presentation stands and hands-free cradles. Explore the full Zebra scanner catalog for companion cordless models and mounting accessories.

Key Features

• PRZM Intelligent Imaging Engine: Zebra's proprietary algorithm pre-processes degraded images before passing them to the decoder, turning torn labels, wet surfaces, and screen glare into readable data on the first pass. Fewer re-scans means shorter average transaction time — measurable at scale in busy POS lanes. Browse the broader barcode scanner lineup to compare PRZM-equipped models.
• 800 MHz Microprocessor + 1280x960 Sensor: The combination of a high-clock processor and megapixel-class sensor is what lets this unit read 3.0 mil Code 39 and Code 128 and 6.0 mil Data Matrix and QR Code — tolerances tight enough to catch serialized pharmaceutical labels and dense GS1 DataBar coupons that stump lower-resolution imagers.
• 24 in. / 61 cm Standard Scan Range: This is the sweet spot for traditional manned POS: close enough for tight counter installations, far enough to sweep bulky or awkward items without contorting the cashier's reach.
• Omni-Directional Decode — ±60° Skew and Pitch, 360° Roll: No barcode alignment required. Cashiers scan in whatever orientation the item presents itself. Combined with a bright aiming spot, this directly reduces scan-and-tilt fumbling that slows checkout lines.
• Digimarc Digital Watermark Support: The DS8108-SR00007ZZWW supports Digimarc technology, where a barcode pattern tiles invisibly across the entire product surface. When your supply chain or brand partners migrate to Digimarc, this scanner doesn't need to be replaced — it reads watermarked packaging as-is, without special handling by the cashier.
• Multi-Code Data Formatting (MDF): A single trigger press can capture multiple barcodes and transmit them in a defined sequence. Useful for loyalty card + item bundled scans, or specialty retail workflows that require sequential barcode capture without additional keystrokes.
• Broad Symbology Coverage: 1D support spans Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, Interleaved 2 of 5, Korean 3 of 5, GS1 DataBar, and Base 32. 2D support includes Data Matrix and QR Code down to 6.0 mil. PDF417 down to 5.0 mil. A single scanner covers coupons, loyalty cards, shipping labels, and product barcodes without profile switching.
• Host Interface Flexibility: USB, RS232, Keyboard Wedge, and RS485 interfaces are all supported, plus over 90 international keyboard layouts. This matters in multi-site deployments with mixed POS hardware legacy — one SKU can serve different register generations without adapter dongles. Pair with a compatible POS peripheral or cable set for complete integration.
• IP42 Sealing + 6 ft. Drop Spec + 2,000 Tumbles: IP42 blocks particulate contamination and dripping water — adequate for counter environments. The 6 ft. (1.8 m) concrete drop spec and 2,000-tumble rating confirm the chassis can survive daily drops off the counter without returning an error. ±15 KV air ESD tolerance adds protection in carpet-heavy environments.
• Ambient Light Immunity to 96,840 Lux: Store lighting, window glare, and outdoor pickup-window environments won't trigger decode errors. 96,840 lux immunity covers virtually any retail lighting scenario including direct sunlight exposure at drive-through or curbside pickup installations.
• Operating Temperature 0° to 50°C (32°–122°F): Covers ambient retail, stockroom, and back-of-house environments without special handling. Storage down to -40°C means the scanner survives unheated overnight warehousing in cold climates.
• Compliance Stack: IEC 60950-1 / UL 60950-1 electrical safety, RoHS environmental, EN 55022/55032 Class B emissions, FCC Part 15 Class B, ICES-003 Class B, EN 55024 immunity — the full set needed for US and Canadian deployments without waiver requests.

Integration & Compatibility

The DS8108-SR00007ZZWW (often searched as DS8108 SR00007ZZWW) integrates with virtually any POS platform via USB HID or serial interfaces, with keyboard wedge available as a legacy fallback. It supports over 90 international keyboard layouts, so multi-region enterprise deployments can standardize on a single SKU and configure locale via Zebra's 123Scan utility. Graphic formats Bitmap, JPEG, and TIFF are supported for image capture workflows. This corded unit requires a separate interface cable — confirm your cable part number against the supported interface type (USB, RS232, RS485, or keyboard wedge) before ordering. For deployments requiring cordless range, the DS8178 sibling model in the same DS8100 family offers Bluetooth 4.0 Class 1 up to 330 ft. (100 m) — a relevant upgrade path for larger floor environments. Consult the barcode scanner selection guide to match imager class to your specific scan environment.

Frequently Asked Questions

Q: Does the DS8108-SR00007ZZWW include a cable in the box?

A: No. The DS8108-SR00007ZZWW is sold as the scanner head only — cable required separately. Confirm which interface you need (USB, RS232, RS485, or Keyboard Wedge) before ordering your cable.

Q: What is the maximum scan range for the DS8108-SR00007ZZWW?

A: Up to 24 inches (61 cm) for standard barcode labels. The 1280x960 sensor and bright aiming spot maintain decode accuracy across that full range, covering both close-proximity countertop scanning and items held at arm's length.

Q: What barcode symbologies does the DS8108-SR00007ZZWW support?

A: It reads all common 1D symbologies including Code 39, Code 128, Code 93, UPC/EAN, GS1 DataBar, Codabar, MSI Plessey, Interleaved 2 of 5, and more, plus 2D codes including Data Matrix (6.0 mil min), QR Code (6.0 mil min), and PDF417 (5.0 mil min). It also supports Digimarc digital watermark barcodes.

Q: What drop rating does the DS8108-SR00007ZZWW carry?

A: It is rated for 6.0 ft. (1.8 m) drops to concrete and 2,000 tumbles in a 1.5 ft. (0.5 m) tumbler, making it appropriate for high-traffic counter environments where drops are a daily reality.

Q: Is the DS8108-SR00007ZZWW compatible with Zebra's 123Scan configuration utility?

A: The DS8108 is part of the Zebra DS8100 Series and is designed for Zebra's standard configuration toolchain, including 123Scan. Interface, symbology enable/disable, and MDF settings can be programmed via configuration barcodes or the utility — confirm your firmware version supports the specific features you require.

Q: Can this scanner read barcodes on mobile phone screens?

A: Yes. The PRZM Intelligent Imaging engine and 1280x960 megapixel sensor are specifically designed to decode electronic barcodes on dimly lit mobile displays — a key capability for loyalty app and mobile ticketing use cases.

Marty Allison

The spec that stands out to me on the DS8108-SR00007ZZWW is the ambient light immunity ceiling: 96,840 lux. Most integrators never look at that number until they get a complaint call about a scanner that stops reading near a window or at a curbside pickup station flooded with afternoon sun. This unit won't have that problem — 96,840 lux covers direct sunlight, which means you can deploy it at drive-through windows, outdoor service counters, or any mixed-light retail environment without engineering around a scanner limitation.

Technical Highlights:

• PRZM + 800 MHz Processor: The combination turns what would be a multi-scan retry on a conventional imager into a single-pass decode. For a cashier running 500+ items per shift, the aggregate time savings are meaningful — and the processor handles some decode processing that would normally drain a battery, which is why the cordless sibling (DS8178) achieves 83 hours per charge.
• 3.0 mil Minimum Resolution (Code 39/128): This is tighter than most general-purpose retail imagers. It means the DS8108-SR00007ZZWW handles serialized pharmaceutical labels, dense manufacturer coupons, and small GS1 DataBar coupons that a lower-resolution scanner would bounce back to manual entry.
• ±60° Skew/Pitch + 360° Roll Tolerance: Full omni-directional decode. Cashiers don't orient the label — they just swipe. At a high-volume lane this eliminates a small but repetitive micro-motion that adds up across thousands of transactions per day.

Deployment Considerations:

• This SKU ships scanner-only — no cable included. Before ordering, confirm your interface type (USB is the most common modern choice; RS232 or keyboard wedge for legacy POS). The wrong cable means the scanner sits in the box until the right one arrives.
• IP42 is counter-appropriate but not liquid-splash-proof beyond dripping water. If your checkout environment involves significant moisture (deli counters, produce sections, outdoor farmer's market booths), evaluate the IP rating against your conditions — IP42 does not cover lateral spray.

For a traditional manned retail POS lane where cashier speed, screen-barcode reads, and long-shift reliability are the primary buying criteria, the DS8108-SR00007ZZWW is a well-matched fit. It's not the right call for a mobile warehouse picking workflow or a rugged outdoor environment — but for counter checkout, the performance-to-footprint ratio is hard to argue with.
