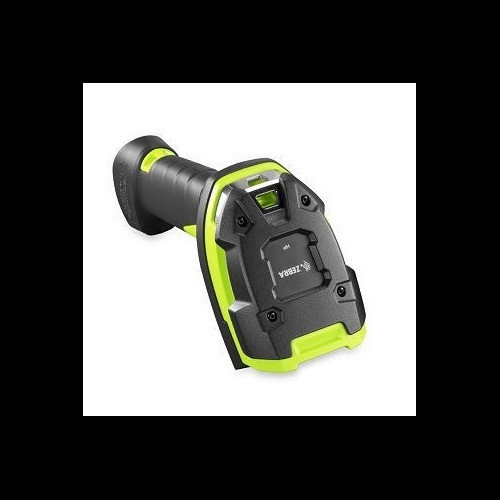

Zebra DS3608-ER20003VZWW Extended Range Ultra-Rugged Corded 1D/2D Industrial Barcode Imager

Overview

The Zebra DS3608-ER20003VZWW is a corded, extended-range area imager designed for warehouse, manufacturing, and distribution environments where standard-range scanners consistently fail — think high-rack storage, receiving docks, or any workflow where the label is more than arm's reach away. It decodes Code 128 40-mil barcodes from up to 60 inches (152.4 cm) away, handling everything from near-contact to long-distance in a single device without lens swaps or manual adjustments. If you're running barcode-driven WMS or MES workflows where first-scan success rate directly impacts throughput, this is the hardware tier to look at.

This model (DS3608-ER20003VZWW, also searched as DS3608 ER20003VZWW) is the corded variant, connecting via USB, RS232, or Keyboard Wedge — straightforward drop-in for stationary and conveyor-side scan stations where cable management isn't a concern and you want zero battery overhead.

Key Features

• Extended Decode Range — Code 128 40 mil up to 60 in. (152.4 cm): Most area imagers tap out well under 3 feet on standard labels. The DS3608-ER pushes to 60 inches on 40-mil Code 128 and up to 28 inches on 20-mil Code 128 — enough reach for pallet-level scanning at floor level or carton reading on elevated conveyors without repositioning.
• 1,280 x 800 Pixel Image Sensor with 42° x 28° Field of View: A wide, high-resolution sensor means the imager captures more of the label in one frame — useful for reading multiple barcodes on a single label without re-positioning. Combined with ±60° skew and pitch tolerance plus full 360° roll tolerance, workers don't need to align the scanner precisely to get a clean read.
• Multi-Code Capture (up to 20 barcodes simultaneously): One trigger press can decode up to 20 barcodes at once, each delivered in the format your back-end expects. For kitting, manifesting, or multi-label cartons, this eliminates repeated trigger pulls and the associated error rate.
• IP67 Sealing + 8 ft. Drop Rating to Concrete: IP67 means submersion in up to 1 meter of water for 30 minutes won't stop it — useful in wash-down environments like food and beverage facilities or cold-chain distribution. The 8 ft. drop spec to concrete (23% better than the stated class competition, per Zebra's data) and 5,000-tumble rating at 3.3 ft. mean this scanner survives routine drops from workbench height repeatedly, not just once in testing.
• -30°C to 50°C Operating Temperature (-22°F to 122°F): The corded model operates in genuine cold-storage environments — walk-in freezers, refrigerated distribution centers, outdoor receiving docks in northern climates — without heaters or special conditioning required.
• DPM (Direct Part Mark) Support: Reads laser-etched, dot-peen, and chemically-etched marks on metal and plastic parts — relevant for automotive, aerospace, and electronics traceability where the barcode is applied directly to the component surface rather than a paper label.
• Hyper Red 660nm LED Illumination with 15% Minimum Print Contrast: Low minimum contrast threshold (15% MRD) means the imager successfully decodes low-contrast, faded, or poorly-printed labels that cause read failures on most standard imagers — reducing the need for re-print workflows.
• ±25 KV Air Discharge ESD Protection: Industrial environments with conveyor belts and pneumatics generate significant static. The DS3608-ER is rated for ±25 KV air discharge and ±10 KV direct/indirect discharge — relevant in dry, high-static manufacturing floors where unprotected electronics fail prematurely.
• USB, RS232, and Keyboard Wedge Host Interfaces: Three host interface options mean the DS3608-ER integrates with legacy POS terminals and RS232-only PLC systems as cleanly as it does with modern USB HID setups — no adapter overhead in mixed environments.
• 123Scan2 and Scanner Management Service (SMS) Compatibility: Remote configuration, firmware upgrades, and data formatting rules can be pushed centrally via Zebra's free 123Scan2 utility and SMS platform — relevant when deploying dozens of units across a facility and you can't touch each device individually.

Integration and Compatibility

The DS3608-ER20003VZWW connects via USB (the most common deployment mode), RS232 for legacy terminals and PLCs, or Keyboard Wedge for systems that require direct keyboard emulation. It decodes the full range of 1D and 2D barcode symbologies used in logistics: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, Interleaved 2 of 5, GS1 DataBar, and Base 32 for 1D; Datamatrix, QR, and PDF417 families for 2D (per the broader DS3608 family capability). The imager also reads screen-displayed barcodes — mobile pick-to-light, tablet-based work orders — without configuration changes.

For enterprise scanner fleet management, pairing this unit with Zebra's Zebra ecosystem tools (123Scan2, SMS) allows centralized firmware deployment and parameter programming, which matters when you're standardizing scanner behavior across a multi-site operation. The input voltage range (4.5–5.5 VDC, 340 mA typical operating current) is USB-standard — no special power infrastructure required at the workstation.

Regulatory compliance covers the major markets: UL 60950-1 and CAN/CSA-C22.2 for North America, EN 60950-1 and IEC 60950-1 for EU/international, FCC Part 15 Class B, ICES-003 Class B, and RoHS (EN 50581:2012). The medical electrical equipment rating (EN 60601-1-2) opens deployment in hospital supply chains and clinical lab environments where most industrial scanners are excluded.

Frequently Asked Questions

Q: What is the maximum decode distance for the Zebra DS3608-ER20003VZWW?

A: The DS3608-ER20003VZWW decodes Code 128 40-mil barcodes at up to 60 inches (152.4 cm). For 20-mil Code 128, the maximum range is 28.0 inches (71.1 cm). For 5-mil Code 128 (very dense labels), the working range is 1.3 to 6.7 inches.

Q: What is the warranty on the DS3608-ER20003VZWW?

A: Zebra provides a three-year manufacturer warranty on the DS3608-ER20003VZWW.

Q: Is the DS3608-ER20003VZWW waterproof?

A: Yes. The scanner is sealed to IP67, meaning it withstands submersion in up to 1 meter of water for 30 minutes. It also carries an IP65 rating, covering dust-tight and jet-water resistance. The FLB cradle (if used) is separately rated IP65.

Q: Can the DS3608-ER20003VZWW read barcodes on screens (mobile devices, tablets)?

A: Yes. The DS3608-ER's advanced imager reads both printed labels and screen-displayed barcodes, including those on mobile devices used in pick-to-light or tablet-based workflows — no special mode required.

Q: Does the DS3608-ER20003VZWW support direct part mark (DPM) reading?

A: Yes. DPM decoding is supported, enabling the scanner to read laser-etched, dot-peen, and chemically-etched marks applied directly to metal or plastic surfaces — relevant for automotive, aerospace, and electronics part traceability.

Q: What host interfaces does the DS3608-ER20003VZWW support?

A: The corded DS3608-ER20003VZWW supports USB, RS232, and Keyboard Wedge host interfaces, covering modern workstations through legacy PLC and POS terminal installations.

Marty Allison

When evaluating the DS3608-ER20003VZWW for a high-bay warehouse deployment, the spec that changes the conversation is the 60-inch decode distance on 40-mil Code 128. That's not a lab number — it means a worker standing at floor level can scan a pallet label on a rack beam at shoulder height without climbing or repositioning. Combined with the 1,280 x 800 pixel sensor and ±60° skew/pitch tolerance, read rates stay high even when labels aren't perfectly flat or square to the scanner.

Technical Highlights:

• 60-inch Extended Range on 40-mil Code 128: Outreach that covers high-rack receiving, overhead conveyor scanning, and pallet verification without a secondary long-range device in the toolkit.
• IP67 + 8 ft. Drop to Concrete: IP67 sealing supports wash-down environments (food/bev, pharma cold chain) and the 8 ft. drop spec — validated across multiple drops, not a single-drop pass — means this scanner survives a full shift on a concrete distribution floor without reliability degradation.
• -30°C Corded Operating Floor: The USB/RS232 corded model handles genuine freezer temperatures (-22°F / -30°C), which rules out most competing imagers for cold-chain logistics without add-on heater kits.

Deployment Considerations:

• The 340 mA typical operating current at 4.5–5.5 VDC is USB-standard, but verify your USB hub or PLC serial port can sustain that draw continuously on scan-intensive conveyor stations — passive hubs often can't.
• The extended range optics are optimized for distance; minimum decode distance on 5-mil Code 128 is 1.3 inches, so if your workflow also includes ultra-dense labels at near-contact, test that scenario before committing the fleet — the DS3608-SR (standard range) may provide a better near-contact working range for that use case.

The DS3608-ER20003VZWW is the right call for automotive parts receiving, high-bay distribution centers, and pharmaceutical cold-chain lines where scan distance, freezer tolerance, and wash-down durability all have to coexist in one device — and where a failed scan has a direct cost in line stoppage.
