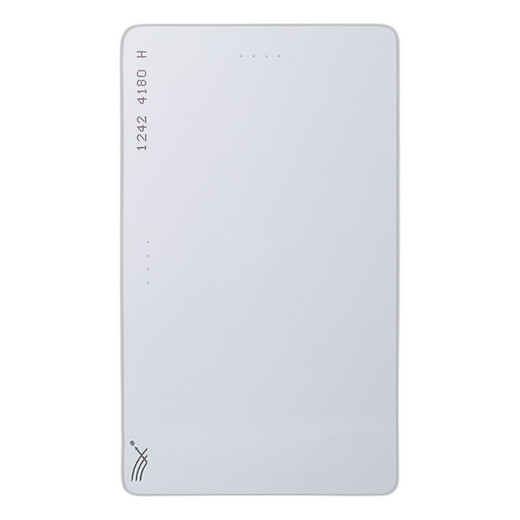

DMP PSM-2P ISO Imageable Proximity Card
The DMP PSM-2P is a 125 kHz proximity card engineered for organizations deploying dual-function employee badges that serve as both access tokens and photo identification. The ISO-standard card format (2.1" × 3.4" × .031") is imageable—meaning you can print photos and employee data directly onto the card surface using standard photo ID printers, eliminating manual lamination, overlay labor, and inventory complexity. Deploy this credential across any 125 kHz proximity reader environment where badge issuance velocity and credential consolidation matter.
Key Features
- 125 kHz RF Proximity Technology: Standard frequency supported by DMP controllers and third-party proximity reader hardware across commercial, institutional, and industrial installations. Integrates into existing access control ecosystems without additional reader procurement.
- ISO Imageable Card Format: Pre-cut to ISO standard badge dimensions and engineered for direct photo printing via standard ID card printers. Consolidates access credential and photo ID into a single card stock, reducing issuance time and per-credential material cost.
- Photo ID Capability: On-card image and data printing enables employee identification at a glance—valuable for visitor verification, shift handoff, and access-denied incident investigation.
- PVC Construction: Durable polyvinyl chloride resists daily wear, pocket carry, and handling without delamination or RF performance degradation. Flexible enough for wallet storage, rigid enough for badge-clip attachment.
- Pre-Programmed at Manufacture: Cards ship with encoding ready for immediate enrollment into DMP or compatible third-party access control systems. No additional encoding or initialization required at site.
- Commercial/Institutional/Industrial Compatibility: Suitable for multi-door deployments in offices, schools, hospitals, manufacturing facilities, and government buildings. Frequency and protocol match legacy and current 125 kHz reader hardware.
The PSM-2P eliminates the operational overhead of traditional photo ID workflows. Rather than printing employee photos on separate insert stock, laminating them, and physically mounting them to blank proximity cards, you print directly onto the card itself in a single pass. For a 500-person facility deploying badges annually, this reduces per-employee credential issuance cost and turnaround time measurably. The card remains fully RF-functional after printing—no loss of read range or protocol compatibility.
Integration is straightforward on any DMP XR500 or DMP core controller, as well as third-party systems supporting standard 125 kHz proximity readers. ONVIF-compatible access control platforms and cloud-enabled badge management services can enroll PSM-2P credentials via your existing provisioning workflow. Verify reader frequency matching before purchase—125 kHz is the dominant standard in North America, but confirm your installed hardware operates at this frequency.
Credential lifecycle is simple: pre-programmed cards arrive ready to enroll. Printing occurs on-site using any commercial photo ID printer rated for proximity card stock. The ultra-thin .031" PVC construction remains flexible during printing and handling, preventing card jamming in printer feeds. Store unprinted cards in a cool, dry environment to preserve card surface quality and RF read reliability. Once printed and enrolled, credentials function identically to non-imageable proximity cards—no performance penalty for on-card imagery.
Manufacturer Warranty coverage applies to all PSM-2P cards. For deployments requiring FIPS 201 PIV compliance or advanced encryption, consider hybrid smart-card platforms; for standard access control with integrated photo ID in a high-volume badge issuance environment, the PSM-2P consolidates credential and identity into a single, cost-effective card stock. Validate reader compatibility and photo printer specifications during site assessment—these are the only pre-deployment dependencies.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In our experience, the PSM-2P solves a genuine operational pain point: the overhead of managing two separate credential systems—proximity cards for access, photo IDs for visitor verification and employee authentication. When a facility is running DMP core access control with 200+ employees, the traditional workflow is slow: encode blank cards, print photo inserts, laminate, attach to the blank card, then enroll into the system. The PSM-2P compresses that into encode → print directly onto card → enroll. On a 500-person annual badge refresh cycle, that's a visible labor reduction and faster credential delivery to new hires. The card remains fully RF-functional after printing, and we've not encountered read-range loss or controller rejection due to on-card imagery in the field. The main trade-off versus smart-card hybrid systems is feature scope—if you need encryption, multi-factor authentication, or government PIV compliance, the PSM-2P is insufficient. But for corporate campuses, schools, and hospitals managing straightforward proximity-based access with visual ID confirmation, this card type is pragmatic and cost-effective.
Technical Highlights:
- 125 kHz RF Protocol: The most ubiquitous proximity frequency in North America. Readers are inexpensive and widely available from DMP, HID Global, Salto, Honeywell, and other major vendors. No licensing or proprietary reader lock-in. Range is typically 3-6 inches depending on reader antenna and environmental shielding—sufficient for badge-swiped or proximity-held access scenarios.
- ISO Standard Card Dimensions (2.1" × 3.4" × .031"): Fits standard badge clips, lanyards, and card-carrier accessories. The .031" thickness is thin enough for modern high-volume photo ID printers to process without jamming, yet rigid enough to handle daily wear and frequent insertion into badge readers without edge-crease degradation.
- Imageable Surface (Direct Photo Printing): Eliminates lamination and separate insert stock. Print dye-sublimation or inkjet images directly onto the PVC surface using any printer rated for card stock. No loss of RF performance after printing—the proximity coil remains unaffected by surface imagery.
- Pre-Programmed Enrollment: Cards arrive with encoding complete. Immediate enrollment into DMP XR500 or compatible third-party systems. No delay for on-site encoding or network delivery of card numbers to your badge printer.
- PVC Durability: Withstands daily pocket carry, badge-clip wear, and repeated exposure to moisture and light without delamination or RF drift. Durable enough for outdoor staff in institutional settings (maintenance, grounds crew) who need a single credential that functions in rain and sunlight.
Deployment Considerations:
- Confirm your installed proximity readers operate at 125 kHz before ordering. Older legacy systems and some overseas deployments use 13.56 MHz or 2.45 GHz; this card is incompatible with those frequencies. Check reader model numbers or consult your DMP integrator.
- Photo printing requires a commercial ID card printer rated for proximity card stock. Desktop consumer printers will jam or damage the card. Budget 2-3 weeks for printer procurement and integration if you don't have existing photo ID infrastructure on-site.
- Card stock should be stored in cool, dry conditions before printing. Moisture and heat can warp ultra-thin cards and degrade print adhesion. A small filing cabinet or climate-controlled drawer is sufficient—no special vault required for unprinted inventory.
- RF read range is 3-6 inches in most environments. If your existing readers have longer-range requirements (e.g., vehicle-mounted readers in parking structures), test compatibility during pilot. Proximity technology has limits; confirm use case before full deployment.
- Multi-door coordination across DMP systems is straightforward via controller-to-controller sync. If you're integrating with legacy third-party readers, validate ONVIF or Wiegand compatibility with your DMP system integrator—most pairings work, but protocol nuance varies by reader vendor.
The PSM-2P is the right credential choice for organizations where consolidated photo ID and proximity access streamline badge issuance and daily verification without added security complexity. Explore the DMP catalog for compatible readers and access control system components.
