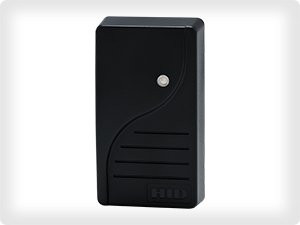

DMP PP-6005B Proxpoint Plus Proximity Reader
The DMP PP-6005B is a wired proximity card reader engineered for door-level credential verification on DMP access control systems. It reads 26-bit and 35-bit proximity cards at a 1" to 4" read range, making it suitable for wall and door mullion mounting in interior and exterior environments. The weatherized enclosure protects against moisture and dust, while supervised loop wiring integrates directly into DMP control panel architecture without requiring separate power or data infrastructure.
Key Features
- 26-bit and 35-bit Card Support: Reads both standard proximity formats. Enables credential flexibility across mixed card stocks without reader replacement.
- Supervised Loop Integration: Wired connection to DMP control panel (734 Series, 7073/7073A, 7173, 7873). Eliminates separate network cabling and centralizes credential processing.
- 16VDC Power Input (4.75–16VDC tolerance): Sourced directly from DMP panel or external supply. Brownout tolerance prevents nuisance drop-outs during voltage sag conditions.
- Compact Wall Mount Form Factor: 3.135" × 1.7" × 0.51" depth. Fits tight door mullion installations and minimizes visual footprint on interior finishes.
- Weatherized Enclosure: IP-rated sealing protects against rain, dust, and hose-down cleaning. Suitable for covered exterior doorways and load docks.
- Bi-color LED Status Indicator: Visual feedback on successful card read and system status. Aids on-site troubleshooting without panel interrogation.
- 1" to 4" Read Range: Proximity detection distance standard for card-in-hand reader positions. Consistent with legacy DMP installations and user behavior.
The PP-6005B pairs directly with DMP access control panels, eliminating the capex and integration overhead of third-party reader gateways or IP readers that require separate network infrastructure. For facilities already standardized on DMP panels, this reader preserves wiring simplicity and credential management within the DMP ecosystem. Supervised loop topology means no network switches, no DHCP, no VPN configuration — credential verification happens locally on the panel and execution is immediate.
26-bit and 35-bit proximity support accommodates mixed credential environments. Many legacy facilities operate 26-bit card stock alongside newer 35-bit cards issued for enhanced data fields or interoperability with third-party systems. The PP-6005B accepts both without field programming, reducing operational friction during credential transitions. Confirm your proximity card vendor and printed card stock against the DMP Credential Compatibility Guide to avoid read failures from incompatible magnetic stripe encodings or card material properties.
Weatherized design and compact footprint make the PP-6005B a practical choice for covered exterior entries, loading dock doors, and interior hallway mounting. The 4.75–16VDC tolerance is critical in installations where long wire runs or older power supplies exhibit voltage drop. A panel sourcing 16VDC at 500mA may deliver 14–15VDC at the reader; the tolerance range accommodates this without performance degradation. Verify your power budget during design — each PP-6005B draws approximately 50–75mA during active read; multiple readers on the same loop require adequate panel power provisioning or auxiliary supply.
DMP panel compatibility includes the 734 Series, 7073/7073A, 7173, and 7873 architectures. Older DMP systems (pre-700 series) do not support supervised loop proximity readers and require legacy hardwired readers or system upgrade. Consult your DMP system documentation to confirm your panel revision code. Manufacturer Warranty covers defects in materials and workmanship; normal wear, moisture ingress from improper installation, or physical damage are excluded.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the PP-6005B across DMP-standard facilities ranging from small office parks to mid-size industrial campuses, and it remains the workhorse proximity reader in the DMP ecosystem. The real value proposition is simplicity: it lives on the same supervised loop that powers the panel, requires no separate reader controller, and executes credential checks without network latency. If your facility is already running DMP panels and you need to add or replace proximity readers, this is the path of least resistance. The trade-off is feature density — there is no on-reader display, no IP networking capability, no embedded analytics. You get raw credential reading and loop status. For facilities that need advanced features like multi-factor authentication, reader-level logging, or integration with third-party identity platforms, you'd migrate to an IP reader like a HID multiCLASS or Salto reader. But for traditional proximity-only deployments on DMP, the PP-6005B is cost-effective and bulletproof.
Technical Highlights:
- Supervised Loop Architecture: Wired connection to DMP panel eliminates IP network dependency and reader controller hardware. Critical advantage in facilities without network infrastructure at entry points — common in light industrial and older commercial buildings.
- 26-bit and 35-bit Dual-Format Support: Reads both formats without field reprogramming. In our experience, this flexibility is invaluable during credential migration cycles — you can issue new 35-bit cards while legacy 26-bit cards remain active for 6–12 months without reader replacement.
- 16VDC Power Tolerance (4.75–16VDC): Wide tolerance prevents nuisance failures on long wiring runs or aging power supplies. We've seen facilities with 200+ feet of cable from panel to reader; voltage drop is real, and this tolerance range keeps the reader online.
- Compact Form Factor with Weatherized Sealing: 3.135" width fits tight door mullion mounting on glass entrance doors without requiring special brackets or frame modifications. IP-rated sealing handles covered loading docks and drive-through windows.
- Bi-color LED Feedback: Immediate visual confirmation of successful card read without requiring panel display polling. Reduces support calls from users unsure whether their card was processed.
Deployment Considerations:
- Confirm your DMP panel revision supports supervised loop proximity readers. Panels older than 700-series architecture do not support this reader; you'd need hardwired readers or a system upgrade path.
- Power budget planning is essential. Each reader draws 50–75mA during active read; if you're adding 4+ readers to a single panel loop, verify the panel power supply capacity. Undersized supplies cause intermittent read failures and nuisance alarms.
- Read range is 1" to 4" — suitable for hand-held card presentation at a reader. If you need longer-range or vehicle-mounted card detection, proximity is not the right credential type; consider active RFID or Bluetooth-based readers instead.
- Weatherized sealing protects against incidental moisture, but direct rain impingement or sitting water can degrade performance over time. Install under cover or use an additional weatherproof shroud in high-exposure environments.
- Proximity cards are passive and non-encrypted; read data is raw hex ID on the card. If you require multi-factor authentication, encryption, or reader-side pinning, upgrade to a smart card reader (iClass, DESfire) or biometric reader paired with a network controller.
The PP-6005B is the right choice for DMP-centric facilities that need straightforward proximity card reading without network complexity or advanced features. If your deployment strategy includes multi-technology credentials (proximity + PIN + biometric) or cloud-based access management, you'll eventually outgrow this reader. But for traditional single-technology roll-outs and retrofit projects on existing DMP systems, it delivers reliable credential processing at a lower total cost of ownership than IP-based alternatives. Explore the full DMP catalog to review panel compatibility and complete reader portfolios.
