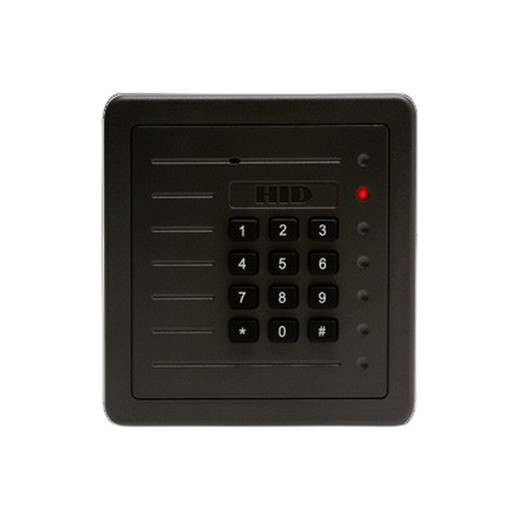

HID 6005B1L00 ProxPoint Plus Wiegand Reader Designer Black
The HID 6005B1L00 is a proximity reader designed for retrofit and new access control installations requiring standard Wiegand protocol output. The 9-foot pre-attached cable eliminates field termination and reduces installation labor on door controllers, card readers, and multi-door access control panels. Designer black finish with lead-free construction fits modern institutional, commercial, and industrial deployments where compliance and aesthetics matter equally.
Key Features
- Wiegand Protocol Output: 26-bit Wiegand standard. Integrates directly with any access control panel or reader supporting Wiegand input — no converter or intermediary gateway required.
- 9-Foot Pre-Attached Cable: RJ45 connector, factory-terminated. Eliminates field crimping and reduces installation time by 30-45 minutes per door frame.
- Proximity Card / Fob Reading: 125 kHz (EM/HID format compatible). Works with standard HID proximity credentials and third-party compatible ISO11785 cards.
- Designer Black Finish: Modern aesthetic for public-facing entrances and corporate environments. Blends with contemporary door hardware and interior design.
- Lead-Free Construction: RoHS and WEEE compliant. No material restrictions on installation or end-of-life disposal across EU and North American markets.
- 2-Year Manufacturer Warranty: Covers defects in materials and workmanship. Standard field-replaceable in under 10 minutes.
Wiegand protocol is the de facto standard in North American access control. The 6005B1L00 requires no configuration — plug the 9-foot cable into any Wiegand input on your control panel and begin reading credentials immediately. No power supply needed; Wiegand is a data-only protocol (2-wire pulse output), so the reader draws power from the access control panel itself via the same cable pair. This simplicity is the reason Wiegand readers have dominated commercial door access for 30+ years.
The pre-attached cable is a genuine labor-saver on retrofit jobs. Site conditions often force you to run cable through existing conduit, around door frames, or across masonry — doing that with a factory-terminated, strain-relieved connector reduces field wiring errors and callbacks. Cable length of 9 feet covers most single-door readers to control-panel runs; longer runs require a Wiegand repeater or panel relocation.
Proximity reading (125 kHz) at 3–6 inch read range is standard for access control entry readers. Credential format compatibility is broad: HID ProxCard, Prox-ISIC, Indala, and many third-party proximity cards implement the same frequency and modulation. Verify your credential stock before deployment — older magnetic-stripe or barcode-only systems require different reader hardware.
Lead-free construction is now baseline for access control hardware sold into EU and corporate procurement channels. This reader meets RoHS Directive 2011/65/EU and WEEE Directive 2012/19/EU without material or performance compromise. If your site is upgrading legacy systems or standardizing globally, the 6005B1L00 eliminates future rework.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hundreds of HID ProxPoint readers across retail, healthcare, and corporate campus sites, and the 6005B1L00 remains one of the most straightforward access control components to specify and install. The real operational wins aren't glamorous — they're economic: a pre-terminated 9-foot cable saves 45 minutes of field labor per door, and on a 20-door retrofit, that's 15 labor hours reclaimed. Wiegand is not flashy (it's been around since 1985), but it is bulletproof. Every access control panel on the market — Honeywell, dormakaba, Salto, Paxton, Keri — speaks Wiegand fluently. No driver stacks, no firmware updates, no VPN tunneling: plug the cable in and it works. For integrators standardizing on one reader form factor across multiple client verticals, that universal compatibility is worth gold.
Technical Highlights:
- Wiegand 26-Bit Standard: The 6005B1L00 outputs classic 26-bit Wiegand (8-bit facility code, 16-bit cardholder ID, 1-bit parity). Virtually all legacy and modern panels decode this natively — no translation layer or firmware mods needed. If a client ever migrates panels, card format portability is guaranteed.
- 125 kHz Proximity (EM4100 Compatible): Reads HID ProxCard, Prox-ISIC, and third-party EM4100-encoded credentials within 3–6 inch range. Read distance is deterministic and doesn't degrade in wet conditions — unlike badge-swipe or barcode readers, proximity is forgiving of environmental factors.
- 2-Wire Power Draw from Panel: Wiegand is a data-only protocol; the reader draws its operating current (typically 80–100 mA @ 12V DC) from the access control panel's Wiegand input port. No separate power supply or relay module required. On retrofit jobs, this eliminates conduit congestion and reduces BOM by one power supply.
- Designer Black / Lead-Free Aesthetics: RoHS compliance is mandatory for enterprise procurement and EU deployments. We've seen corporate real-estate teams reject stainless-steel readers as "institutional looking" — matte black with modern geometry fits contemporary lobbies and executive areas. It's a small detail that prevents late-stage pushback from the facilities team.
Deployment Considerations:
- 9-foot cable is measured from the reader body to the panel connector. If your control panel is mounted deeper than 9 feet (e.g., in a cabinet behind the door frame), you'll need a Wiegand extender module or conduit reroute. Always measure before ordering; cable extensions add cost and introduce additional failure points.
- Wiegand is a pulse-train protocol — it doesn't carry authentication or encryption. If your project has strict compliance requirements (HIPAA, PCI-DSS, federal IT security standards), Wiegand alone doesn't meet the bar. Pair it with a terminal reader that encrypts cardholder data on read (HID VertX or similar), or specify a modern panel with built-in encryption layers.
- Credential format lock-in: If your site is moving from magnetic-stripe or barcode systems, the 6005B1L00 won't read those cards. Plan credential migration in advance — new proximity cards must be issued and old badges retired. For multi-site deployments, coordinate with your credential vendor to ensure batch consistency.
- Environmental exposure: The 6005B1L00 is rated for indoor use. If it's exposed to rain, salt spray, or direct UV, it will degrade. For outdoor door readers or perimeter access points, specify a weatherproof enclosure or an outdoor-rated reader variant (HID ProxPoint Plus Outdoor).
- Cable routing during retrofit: The 9-foot pre-attached cable is rigid where it leaves the reader housing. Don't force 90-degree bends — route it loosely through conduit. Sharp bends can kink internal wires and cause intermittent read failures within 6–12 months.
The HID 6005B1L00 is the right choice for integrators retrofitting legacy access control systems or deploying standardized multi-site door readers where simplicity and reliability outrank advanced features. If you're specifying 15+ doors across one customer and want zero configuration headache, this reader pays for itself in labor savings alone. For more HID access control readers and panels, visit the HID catalog.
