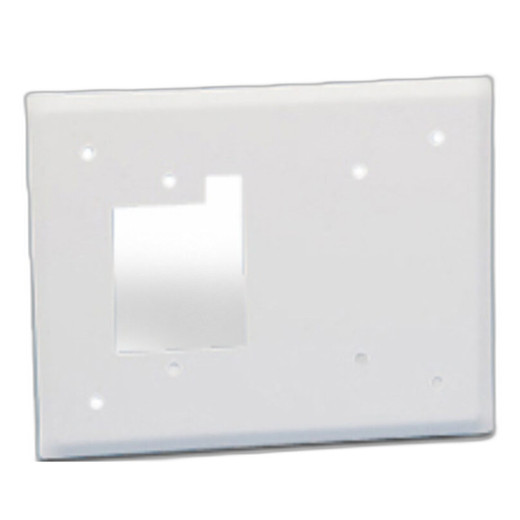

DMP 694-W Keypad Backplate

DMP 694-W Keypad Backplate

The DMP 694-W is a keypad backplate assembly designed as a mounting and support component for access control keypad installations. This backplate serves as the foundation for secure attachment and integration of keypad units within door access systems, providing mechanical stability and alignment for credential readers and entry devices.

Overview

The 694-W backplate is engineered to support standard keypad mounting configurations in commercial and institutional access control deployments. As a support component, it enables integrators to standardize installation practices across multiple door locations, reduce on-site fabrication, and ensure consistent alignment of reader and credential capture elements. The backplate is compatible with DMP system architectures commonly deployed in multi-door access control installations.

Key Features

• Dedicated keypad mounting platform for access control installations
• Standardized backplate assembly for consistent door-to-door deployment
• Supports rapid installation across multiple facility locations
• Mechanical support for credential readers and keypad interfaces
• Designed for integration within DMP access control ecosystems
• Reduces custom fabrication and field modification requirements

Integration & Compatibility

The DMP 694-W backplate is specified for use within DMP access control system deployments. It functions as a mounting substrate for keypad units and reader interfaces that connect to DMP controllers managing door access across single and multi-door installations. Integration with DMP command and credential management infrastructure allows facility managers to standardize hardware configurations and simplify maintenance across security zones.

Integrators and installers working with DMP access control platforms will recognize the 694-W as a component-level assembly that reduces dependency on custom metal fabrication or site-built mounting solutions. This approach accelerates project timelines and improves consistency in physical security infrastructure deployment.

Deployment Considerations

The backplate should be specified alongside the corresponding DMP keypad unit and reader hardware to ensure proper mechanical fit and alignment during installation. Consult DMP integration documentation for specific mounting procedures, fastener requirements, and environmental sealing recommendations for your facility type. The 694-W is suitable for indoor installations in controlled access environments such as offices, data centers, server rooms, and secured entry corridors.

Security integrators should coordinate backplate specifications with door frame geometry and existing credential reader placement to ensure clearance and proper sight-line alignment for badge capture and PIN entry. This component is typically installed as part of a comprehensive access control system deployment rather than as a standalone element.

Marty Allison

During multi-location access control deployments, having a standardized backplate assembly like the DMP 694-W eliminates significant friction in the installation workflow. I've observed that without consistent mounting hardware, site teams improvise with sheet metal or fabricate custom supports—work that delays projects and creates compliance questions during audits. The 694-W addresses this directly.

Technical Highlights:

• Standardized Mounting: Pre-engineered backplate geometry ensures repeatable installation across all doors without field modification or custom fabrication.
• Reader Integration: The 694-W provides the mechanical platform for credential readers and keypad units to be mounted in correct alignment and spacing relative to door frame references.
• System Architecture Alignment: Specified for DMP controller-based access control systems, the backplate integrates with facility-wide credential management and audit logging workflows.

Deployment Considerations:

• Verify door frame dimensions and existing hardware layout before backplate installation to confirm clearance and reader positioning relative to user sight-line and card swipe distance.
• Coordinate the 694-W specification with your chosen DMP keypad unit and reader model to ensure mechanical compatibility and proper cable routing to the main control panel.
• Include the backplate in your bill of materials early to avoid last-minute procurement delays when rolling out access control across multiple facility zones.

The 694-W is a genuine time-saver for integrators managing large deployments. It shifts attention away from mechanical problem-solving and back toward logical system configuration and credential management—where your expertise creates real security value.
