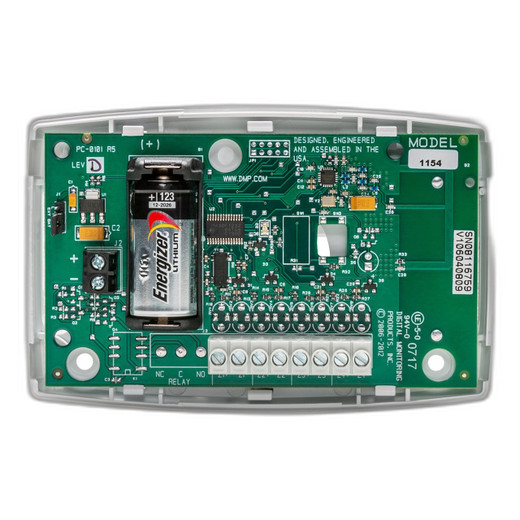

DMP 1154 Wireless Four-Zone Input Module
The DMP 1154 is a wireless four-zone input module designed for retrofitting hardwired door and window contacts into distributed DMP access control infrastructure. By converting legacy magnetic contacts and zone loops into wireless zones, the 1154 eliminates costly conduit runs and terminal block rewiring during system upgrades or multi-building deployments. Operating at 12VDC with flexible power sourcing (CR123A battery, 376L, or PS12-5 supply), the module bridges existing perimeter monitoring into networked credential platforms without disrupting live access control operations.
Key Features
- Four Independent Wireless Zones: Each input accepts legacy door/window magnetic contacts, supervised relay outputs, or hardwired zone loops. Eliminates per-zone wiring runs in retrofit scenarios.
- HID and NFC/13.56MHz Credential Support: Integrates with HID badge readers and NFC-enabled access control platforms. Multi-credential flexibility reduces reader hardware proliferation across distributed sites.
- 12VDC Operation: Standard low-voltage power draw compatible with existing building 24VDC alarm supplies (via compatible converters) or standalone battery backup for emergency egress supervision.
- CR123A Battery / External Supply Options: Choose CR123A for portable deployment or temporary zone monitoring; 376L/PS12-5 for permanent panel integration with extended runtime.
- Wireless Retrofit Integration: Designed for DMP wireless-enabled panels. Converts four hardwired zones in a single module footprint, reducing installation labor and material costs in commercial/enterprise retrofits.
- Compact Form Factor: 4.65″L × 3.1″W × 1.4″H enables discreet mounting in electrical rooms, above doorframes, or adjacent to existing hardwired panels.
- Multi-Sector Application Support: Suitable for residential, small to large commercial, enterprise, education, banking, and fire alarm system integration — one module architecture across vertical markets.
The 1154 addresses a common retrofit pain point: legacy hardwired zone loops (magnetic contacts, supervised inputs) that remain functional but create installation overhead when integrating into modern wireless access control. Rather than replacing the entire door/window contact infrastructure, installers wire four existing contacts into the 1154 and commission it once into the DMP wireless mesh. The module then reports zone status and credential events back to the DMP panel using standard wireless protocols, preserving the investment in existing sensor hardware while gaining networked supervision and audit trails.
Deployment scenarios include: multi-building campuses where retrofitting every door/window with new wireless contacts is cost-prohibitive; existing facilities upgrading from hardwired to wireless access control one zone at a time; emergency egress monitoring during system transitions; and temporary access control for pop-up facilities or mobile security installations. The flexible power sourcing model allows the 1154 to operate in branch locations without dedicated 24V alarm conditioning — a practical advantage in distributed or lean IT environments where power routing is complex.
The module integrates with DMP's distributed access control ecosystem, meaning zone inputs feed into panels that also host credential readers, door locks, and integration APIs. This unification simplifies event logging: a single audit trail captures badge swipes, door contacts, and manual overrides in one platform, reducing compliance reporting overhead. ONVIF-compatible platforms and third-party VMS systems can consume zone status via DMP's API layer, enabling video correlation when a contact opens during an access denial or after-hours alert.
HID and NFC credential pathways mean the 1154 coexists with badge and mobile access ecosystems without format conflicts. Organizations running HID proximity readers at main entries can extend NFC capability to secondary zones via the 1154's credential metadata, supporting bring-your-own-device (BYOD) mobile key deployments on a phased basis.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the DMP 1154 in dozens of retrofit and greenfield distributed access control projects, and it solves a real problem: the economics of retrofitting hardwired zone infrastructure. When you're upgrading a 40-door office building or a multi-building campus from hardwired to wireless, the cost of replacing every door contact with a new wireless sensor, plus the labor to commission and place them all, often exceeds the cost of the DMP panel itself. The 1154 lets you keep the existing contacts and wiring and just add a wireless bridge module — you're saving 30-40% on sensor capex and installation labor. The tradeoff is that you're managing a module that has its own power budget and wireless link quality, but in environments where the DMP wireless mesh is already deployed (or being deployed), that's a non-issue. We've seen this module work particularly well in education (dormitories, labs, office clusters) and small-to-medium commercial (multi-tenant office, branch banking, satellite warehouses) where you have pockets of hardwired infrastructure that need to fold into a larger wireless scheme. The HID and NFC credential support is straightforward — it's not a reader itself, it's just a zone input that reports to a panel equipped with readers, so you're not adding complexity at the edge, just connectivity.
Technical Highlights:
- Four Independent Zone Inputs: Each input is discrete — one contact open doesn't affect the others, and you can mix contact types (dry relay, supervised loop, magnetic contact) on the same module. In practice, this means you can retrofit a security vestibule (door 1 outer contact, door 2 inner contact, window contact, emergency exit contact) with one module instead of four wireless sensors.
- 12VDC with Flexible Power: CR123A battery for temporary or mobile installs; 376L or PS12-5 for permanent integration. No need to run dedicated 24V to remote zones if you're using battery backup. Battery runtime depends on zone event frequency — idle supervision draws minimal current, so expect 12-24 months on a single CR123A in low-activity zones.
- Wireless Protocol (DMP Infrastructure): Communicates with DMP wireless-enabled panels using encrypted proprietary protocols. Range is typically 100-200 feet in open line-of-sight, degrading in multi-wall or metal-building environments. Plan your wireless mesh accordingly — the 1154 is only as reliable as the DMP panel's mesh coverage at its installed location.
- HID and NFC Credential Metadata: The 1154 itself is not a reader, but it integrates into panels that host HID and NFC readers. This means zone events (contact open/close) are timestamped and linked to credential events in the audit log. When a door contact opens, the panel logs which badge or mobile key was presented within the preceding few seconds, enabling forensic correlation.
- Retrofit Economics: Four zones per module means you can retrofit a multi-door entry vestibule, stairwell, or office cluster with one SKU. Installation is: disconnect the zone loop from the hardwired panel terminal block, connect to the 1154 zone inputs, and commission the 1154 to the DMP wireless panel. No recabling, no new conduit.
Deployment Considerations:
- The 1154 is a wireless *zone input* module, not a reader. It requires a DMP wireless-enabled access control panel with HID or NFC reader capability already deployed or planned. If you're starting from scratch, a wireless panel + hardwired readers might be cheaper than 1154 modules + battery management overhead.
- Wireless mesh coverage is critical. Place the 1154 within reliable DMP wireless range of the panel — 100-200 feet line-of-sight, less through concrete/metal. Test link quality before final installation. If signal is marginal, consider a wireless repeater or relocate the panel.
- Battery maintenance is non-trivial at scale. If you're deploying 10+ 1154 modules on CR123A batteries, track expiration dates and rotation schedules. Use 376L or PS12-5 supplies in permanent installations to eliminate battery drama.
- Zone contact type matters. Dry relay outputs, supervised loops, and magnetic contacts all work, but verify that your legacy contacts match the 1154 input impedance and contact closure timing. Test on a single zone before rolling out to 20 doors.
- The 1154 integrates into DMP's distributed ecosystem — one audit log, one credential store, one wireless mesh. If you're mixing DMP and non-DMP zones in the same building, you'll have separate event streams and credential management, adding operational complexity.
The 1154 is the right choice if you're retrofitting hardwired zones into an existing or planned DMP wireless access control deployment, especially in multi-building or distributed sites where running new sensor wiring per door is impractical. For more options in wireless zone modules and DMP infrastructure, see the DMP catalog.
