Middle Atlantic 2417D-FW Divided Internal Elbow Fitting

Overview

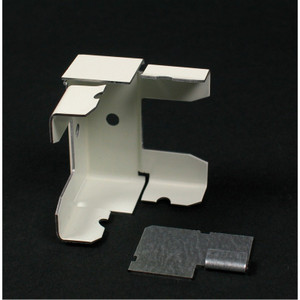

The Middle Atlantic 2417D-FW is a divided internal elbow fitting designed for use with Middle Atlantic's 2400D series steel raceway and cord cover systems. This fitting handles direction changes at interior corners while maintaining the divided channel separation that keeps power and low-voltage signal runs physically isolated within the same raceway — a requirement in most commercial AV and security installations where code or best practice mandates conductor segregation. The fog white finish matches the 2417D-FW to standard 2400D series components for a consistent, finished appearance in office, classroom, and commercial lobby environments.

TAA compliance makes this fitting eligible for federal government projects and procurements subject to the Trade Agreements Act.

Compatibility

The 2417D-FW is designed for the Middle Atlantic 2400D divided raceway series. Confirm raceway channel dimensions and cover profile before ordering — the divided internal elbow is specific to the divided-channel 2400D variant and is not interchangeable with non-divided 2400-series fittings or fittings from other raceway families. Match finish (fog white) to adjacent 2400D raceway sections and covers for a uniform installation.

Installation Notes

Install at interior 90-degree corners where the raceway transitions direction along a wall. The internal elbow profile sits inside the corner, requiring the raceway base to be cut and terminated flush to the fitting on both legs. Maintain conductor separation through the elbow by routing power and signal into their respective divided channels before and after the turn — do not allow conductors to cross the divider within the fitting.
