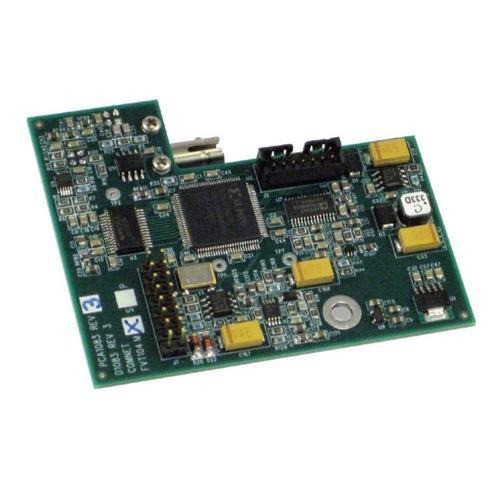

Comnet Digitally Encoded Video Receiver/Data Transmitter 10-Bit sm 1 fiber - FVR1021S1

Comnet FVR1021S1 10-Bit Digitally Encoded Video Receiver

Overview

The Comnet FVR1021S1 is a single-channel video receiver and data transmitter designed for industrial surveillance deployments requiring analog video transmission over optical fiber. This unit decodes 10-bit digitally encoded video signals sent from a paired FVT1021 transmitter, recovering short-haul-quality footage over one multimode or singlemode fiber strand while simultaneously returning RS-232 or RS-422 control data to the camera or encoder. Built as industrial-grade equipment and manufactured in the USA, the FVR1021S1 addresses the core problem of long-distance CCTV infrastructure: you cannot run reliable analog video more than a few hundred feet on copper before signal loss and EMI degradation become unacceptable. Fiber solves that — but only if your receiver handles the digital-to-analog conversion without introducing artifacts or sync failures.

Key Features

• 10-Bit Digitally Encoded Video: The FVR1021S1 decodes video that has been digitally encoded at the transmitter end. This means the video signal is immune to analog degradation during transmission — no ghosting, no signal rolloff, no RF pickup. Once it reaches the receiver, the 10-bit precision (1024 color levels per channel) ensures that shadow detail and highlight separation survive the fiber run intact, critical for forensic-grade playback on low-light warehouse or parking-lot footage.
• Single Fiber Deployment: Unlike legacy systems requiring separate transmit and receive fibers or hybrid copper-fiber bundles, the FVR1021S1 works over a single strand by frequency-multiplexing video and data. This cuts fiber count in half, reducing installation cost and junction complexity on long runs through conduit or aerial spans — a direct savings on every meter of distance.
• Multimode and Singlemode Support: The unit accepts either multimode (standard 62.5 µm or 50 µm) or singlemode fiber via field-selectable configuration. Multimode is cheaper and simpler for distances under 2 km; singlemode extends range to 15+ km with lower attenuation. Choose based on your site topology without changing hardware.
• Simultaneous Bidirectional Data (RS-232 / RS-422): While video flows one direction, PTZ commands, alarm signals, or sensor data return simultaneously over the same fiber on a different wavelength. Selectable data interface (RS-232 or RS-422 via onboard switch) means you pair the receiver with your camera controller or encoder without external converters — fewer points of failure, simpler commissioning.
• Universal CCTV Compatibility: The FVR1021S1 works with standard CCTV analog video outputs from major manufacturers. It does not discriminate on camera brand or sensor type — if it outputs composite or component video, this receiver will decode it. This flexibility is essential in retrofit projects where you inherit a mixed installed base.
• NDAA Section 889 Compliant, Made in USA: Sourced and manufactured domestically, the FVR1021S1 meets NDAA requirements for federal, state, and critical infrastructure deployments. No foreign components in the supply chain, verified compliance — a non-negotiable requirement for government contracts and sensitive-site integrations.
• Limited Lifetime Warranty: Comnet backs this unit with a manufacturer warranty covering defects in materials and workmanship. In industrial field deployments where equipment lives in uncontrolled temperature swings and vibration, a lifetime warranty reflects confidence in the design — and protects your long-term investment on infrastructure that will outlive the CCTV cameras it serves.

Integration & Compatibility

The FVR1021S1 forms a matched pair with the Comnet FVT1021 series transmitter. Install the transmitter at the camera end (fed by an analog video source and powered locally), route fiber to the receiver site, and connect the FVR1021S1 output to your DVR, NVR, or video matrix. The bidirectional data return allows PTZ or auxiliary control signals to travel back to the camera location over the same fiber — no separate control cable run needed. If you are extending video into an environment with high EMI (power substations, radio transmitters, industrial motors), the optical isolation alone justifies the cost versus unshielded analog or even copper media converters. Because the signal is digitally encoded end-to-end, ground loops and AC coupling artifacts that plague analog fiber extenders simply do not occur. Pair this receiver with industrial-hardened Comnet managed switches or media converters (such as the RLMCSFPHV or CNGE11FX3TX8MS) to build complete backbone infrastructure across your site.

What's in the Box

Exact package contents are not detailed in the manufacturer evidence provided. Consult the product datasheet or contact a pre-sales engineer for a definitive packing list.

Frequently Asked Questions

Q: Is the FVR1021S1 NDAA Section 889 compliant?

A: Yes. The FVR1021S1 is NDAA-compliant and manufactured in the USA, meeting federal procurement requirements for sensitive and critical-infrastructure deployments.

Q: What warranty does the FVR1021S1 carry?

A: Comnet provides a Limited Lifetime Warranty covering defects in materials and workmanship. Specifics and exclusions are documented in the manufacturer warranty terms.

Q: Can the FVR1021S1 work with both multimode and singlemode fiber?

A: Yes. The FVR1021S1 supports both multimode and singlemode fiber via field-selectable configuration. Multimode is suitable for shorter runs; singlemode extends range to 15+ km with lower loss.

Q: Does the FVR1021S1 require a paired transmitter?

A: Yes. The FVR1021S1 (receiver) is part of a system paired with the FVT1021 (transmitter). The transmitter encodes analog video and sends it over fiber; the receiver decodes it and outputs analog video, while simultaneously carrying return data.

Q: What data interfaces does the FVR1021S1 support?

A: The FVR1021S1 supports RS-232 and RS-422 data interfaces, selectable via onboard switch. This allows PTZ commands, alarm signals, or auxiliary control to travel back to the transmitter site over the same fiber.

Q: Is the FVR1021S1 suitable for industrial or harsh environments?

A: Yes. The FVR1021S1 is rated as industrial-grade equipment, designed for demanding field conditions. Exact operating temperature and environmental specifications are documented in the manufacturer datasheet.

Karl Wilson

The FVR1021S1 solves a real infrastructure pain point: extending forensic-quality analog video beyond 300 meters without RF corruption or ground-loop noise. The 10-bit digital encoding in this receiver is the key differentiator — it means the video signal is locked and stable the moment it arrives at the fiber endpoint, regardless of distance or EMI environment. In substation, power-utility, and oil-field deployments where AC noise floors run hot, this receiver delivers detail that analog-only extenders simply cannot match.

Technical Highlights:

• 10-Bit Digitally Encoded Decoding: The receiver reconstructs video from digitally encoded bitstream, eliminating analog signal degradation. Shadow and highlight separation persist across long fiber runs — essential for low-light parking-lot or warehouse evidence footage where you need to resolve license plates or faces after sunset.
• Single Fiber Bidirectional Multiplexing: Video and return data (PTZ control, alarms, sensor feeds) share one fiber strand via frequency division. This halves your fiber count and junction complexity versus dual-fiber or hybrid systems, reducing per-meter installation cost on every kilometer of transmission.
• Multimode / Singlemode Field Selection: Toggle between fiber types without swapping hardware. Multimode (62.5 µm or 50 µm) reaches 2 km cheaply; singlemode (9 µm) extends to 15+ km with lower attenuation — pick the mode that matches your topology after installation if needed.
• RS-232 / RS-422 Return Data Agility: Onboard switch lets you select which data protocol your camera controller or PTZ driver expects. No external converters, no extra wiring — one cable pair at the receiver, data flows back over the optical channel automatically.

Deployment Considerations:

• This is a receiver-only device — you must pair it with an FVT1021 transmitter at the camera end. Do not order this expecting to extend video into a fiber backbone; the transmitter and receiver are a matched system.
• Fiber termination and patch panels must be rated for the fiber type you select (multimode SC/APC vs. singlemode SC/APC connectors use different geometry). Mismatched terminations will kill signal or introduce noise. Verify your site's existing fiber plant type before ordering.
• Bidirectional data return is multiplexed, not simultaneous on the same physical wavelength. If you need very high-bandwidth return (gigabit control streams), this is not the device. For PTZ commands and sensor data, bandwidth is ample.

Deploy the FVR1021S1 in utility substation video extensions, long-haul industrial-site infrastructure, and critical-facility backbone links where NDAA compliance and EMI immunity are non-negotiable and fiber is already in the ground. This receiver will outlast the cameras it serves and deliver consistent, forensic-grade detail across decades of upgrades.
