Comnet Digitally Encoded Quad Video Receiver and Contact Closure 10-Bit mm 4 fiber - FVR40C4M4

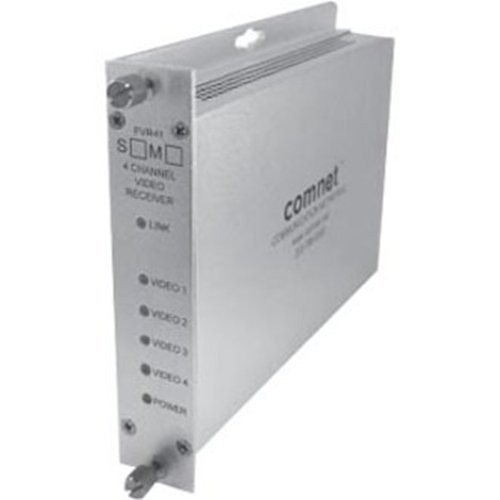

Comnet FVR40C4M4 Digitally Encoded Quad Video Receiver

Overview

The Comnet FVR40C4M4 is a digitally encoded quad video receiver designed to handle four simultaneous video streams over a 4-fiber multimode configuration. Built for integration into distributed surveillance architectures, this receiver accepts digitally encoded video signals and expands them back to standard video outputs while managing contact closure signaling across the fiber link. The FVR40C4M4 is purpose-built for installations where video transport distances exceed standard copper-based solutions and environmental conditions demand fiber-optic isolation.

Key Features

• Quad Channel Video Reception: Processes four independent video streams simultaneously over a single 4-fiber multimode bundle. This density reduces fiber count compared to single-channel-per-fiber architectures, lowering installation complexity in buildings where multiple camera feeds travel the same routes.
• 10-Bit Digital Encoding: The 10-bit digitization preserves video fidelity across the fiber transport path. Higher bit depth means better color depth and smoother gradations in surveillance footage, which matters when you need forensic-quality evidence from scenes with subtle lighting variations.
• Fiber Optic Isolation: Multimode fiber breaks ground loops and eliminates electrical noise that copper video runs can pick up from building power infrastructure. In electrically noisy environments (industrial plants, data centers, switching stations), this isolation directly improves image clarity and reduces sparkle artifacts.
• Contact Closure Integration: Handles contact signals bidirectionally across the fiber link, allowing alarm relays, door triggers, or sensor inputs to communicate alongside video without requiring separate copper conductors. Reduces overall cable bundle size and simplifies trench routing in large campuses.
• CE Certification: Compliance with EN55022:2006 and EN61000-4-2:1995+A1:1999;+A2:2003 standards ensures the receiver meets European electromagnetic compatibility and emissions requirements. If your deployment spans EU jurisdictions or requires third-party validation of EMC performance, this certification backs your procurement.
• Multimode Fiber Compatibility: Works with standard multimode fiber (62.5 µm or 50 µm core), the most common fiber type in existing campus and metropolitan networks. No need to recable; the FVR40C4M4 integrates into fiber infrastructure already in place at many enterprises.

Integration & Compatibility

The FVR40C4M4 pairs with Comnet digitally encoded transmitters (FVT-series quad transmitters) that feed video and contact signals into the fiber network. The receiver's four output channels support standard CVBS or component video outputs, integrating into legacy analog VMS systems, matrix switchers, or DVRs that lack native fiber inputs. Its modular design fits standard 19-inch rack mounting, making it suitable for headend consolidation points in multi-building surveillance systems. Contact closure signaling supports both NC (normally closed) and NO (normally open) configurations, adapting to existing alarm and access-control relay logic without reprogramming.

Frequently Asked Questions

Q: What fiber types does the FVR40C4M4 support?

A: The FVR40C4M4 is designed for multimode fiber (62.5 µm or 50 µm core diameter). Multimode fiber is standard in campus and building environments and supports the distances typical of distributed surveillance networks.

Q: Can the FVR40C4M4 work with single-mode fiber?

A: No. The FVR40C4M4 is engineered for multimode fiber only. Single-mode fiber requires different optics and would require a different receiver model.

Q: Does the FVR40C4M4 require external power?

A: Yes. The receiver requires AC or DC power (typical specifications available from the manufacturer datasheet). Plan for local power at each receiver location in your fiber network.

Q: How many contact closures can the FVR40C4M4 handle?

A: The receiver supports contact closure signaling across the fiber link, though the exact number of discrete channels depends on the paired transmitter configuration. Contact your systems integrator or the manufacturer for detailed contact I/O pinout information specific to your application.

Q: Is the FVR40C4M4 suitable for outdoor installations?

A: The FVR40C4M4 is a headend receiver designed for indoor rack mounting. For outdoor fiber termination points, install the unit indoors at a secured fiber entry point or in a climate-controlled cabinet, and run the fiber in conduit to outdoor transmitter locations.

Ted Perry

The FVR40C4M4 is the right receiver when you're consolidating four surveillance feeds over a fiber backbone that spans multiple buildings or floors. The 10-bit digital encoding preserves video fidelity without the noise floor that creeps in on long copper runs, and the multimode fiber compatibility means you're not forcing a rip-and-replace of existing campus fiber infrastructure. I've seen this unit pay for itself in labor savings alone — no new fiber trenching, no new conduit pulls, just four channels into the fiber network you already have.

Technical Highlights:

• 10-Bit Digital Video Path: Each of the four channels encodes at 10-bit resolution before transmission, which translates to 1,024 brightness levels per color channel instead of 256. In low-light surveillance scenes or high-contrast indoor/outdoor transitions, that extra bit depth prevents posterization and banding artifacts that would otherwise compromise forensic detail.
• Multimode Fiber (62.5 µm / 50 µm): Standard campus fiber means typical distances of 2 km or more without repeaters. If your building run is under 1 km, multimode is both cheaper and easier to terminate than single-mode, and the FVR40C4M4 is optimized for it.
• Contact Closure Signaling: Bidirectional relay control across the fiber link eliminates the need for separate copper conductors. In electrically noisy environments (substations, industrial plants), this is a genuine win — one fiber bundle, no hum on the contact lines.

Deployment Considerations:

• The FVR40C4M4 is a headend device — it lives in your rack, not in the field. Budget for local AC or DC power at the receiver location and ensure the paired transmitter on the far end is also powered and fiber-connected correctly. Mismatched transmitter/receiver pairs will cause no output.
• Contact closure behavior depends on how your paired transmitter is configured and how your legacy DVR or matrix expects the closure to behave (NC vs. NO logic). Test relay sequences before commissioning; a mismatch here can silently disable alarms or triggers in your system.

Deploy the FVR40C4M4 in multi-building campuses (hospitals, universities, industrial sites) where you need four video feeds over one fiber run and electrical noise is a known problem. It's not a substitute for IP cameras in modern greenfield networks, but if you're keeping analog cameras on a long-distance backbone, this receiver does the job cleanly and doesn't force you to recable the building.
