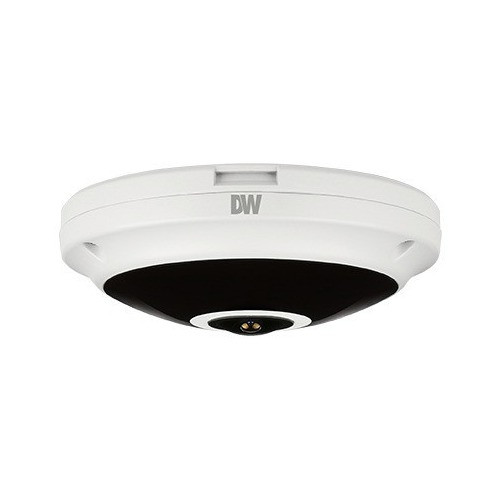

Digital Watchdog DWC-PVF5M1TIRWC5 5MP IR Outdoor Panoramic Fisheye IP Camera

Digital Watchdog DWC-PVF5M1TIRWC5 5MP IR Panoramic Fisheye Camera

The Digital Watchdog DWC-PVF5M1TIRWC5 is a premium 5MP infrared outdoor panoramic fisheye IP camera engineered for comprehensive perimeter and area surveillance. Combining ultra-wide 185° horizontal and vertical field of view with advanced 5MP resolution, this camera eliminates blind spots and delivers exceptional image clarity across expansive outdoor spaces. Built for harsh environmental conditions with IP66 durability and aluminum die-casting construction, it provides reliable security in demanding deployments.

Key Features

• 5MP resolution with panoramic 185° fisheye lens for expansive coverage
• Smart IR™ technology with 55-foot infrared illumination for 24/7 surveillance
• Ultra-low light performance: 0.0 lux (B/W), 0.39 lux (color)
• IP66-rated outdoor housing with aluminum die-casting for weather and vandalism protection
• PoE power for simplified installation and reduced wiring
• Up to 30fps streaming at all resolutions with H.264 and MJPEG compression
• 4 programmable privacy masks and motion detection
• Auto day/night switching with Smart DNR™ 3D noise reduction
• 1 DW Spectrum® CaaS™ license included for cloud-based management
• 5-year warranty

Technical Specifications

• Sensor: 4MP 1/3" CMOS, 3096 x 2080 pixels
• Lens: 1.55mm fixed focal length with 185° HFOV/VFOV
• Night Vision: Smart IR™ up to 55 feet, manual gain control
• Shutter Modes: Auto, manual, anti-flicker, slow shutter (x5, x7.5, x10)
• Connectivity: RJ45 10/100Base-T, IPv4, PoE (max 3.6W)
• Protocols: ONVIF, RTSP, DDNS, DNS, DHCP, NTP, SMTP, FTP, HTTP/HTTPs
• Security: 802.1x authentication, HTTPS/TLS, IP filtering, digest authentication
• Video Output: Local CVBS output; network resolution up to 2592 x 1944
• Bitrate: 100Kbps–10Mbps multi-streaming with CBR/VBR control
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Dimensions: 4.92" x 1.88" (125 x 48mm); Weight: 1.10 lbs

Applications

Ideal for parking lots, perimeter fencing, building exteriors, and large open areas requiring panoramic coverage. Panoramic fisheye technology suits facilities needing maximum area surveillance with minimal camera deployments, while advanced IR capabilities support 24/7 monitoring in unlit environments.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-PVF5M1TIRWC5 delivers exceptional value for outdoor panoramic surveillance. The 185° fisheye lens combined with 5MP resolution provides outstanding area coverage while maintaining detail clarity—critical for identification in security-sensitive applications. Smart IR™ with 55-foot range and intelligent 3D DNR ensures reliable low-light performance without washing out detail.

PoE integration simplifies wiring in outdoor installations, while IP66 construction and aluminum housing guarantee longevity in harsh climates. Integration with DW Spectrum® CaaS™ software (license included) enables cloud-based management and scalability up to 30 cameras per system. This camera is particularly well-suited for cost-conscious deployments where eliminating multiple standard cameras with a single panoramic solution reduces infrastructure complexity and total cost of ownership.

Available in White.
