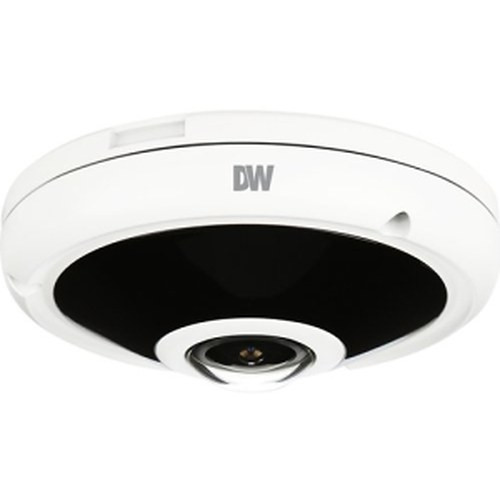

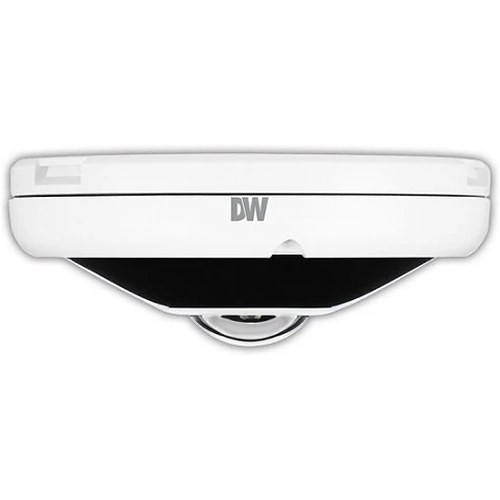

Digital Watchdog DWC-PPVF9Di2TW 9MP Outdoor IR Fisheye IP Camera

Digital Watchdog DWC-PPVF9Di2TW 9MP Fisheye IR Camera

The Digital Watchdog DWC-PPVF9Di2TW is a professional-grade 9MP outdoor fisheye IP camera engineered for comprehensive panoramic surveillance. With its 360° field of view and advanced infrared capabilities, this camera delivers exceptional detail and round-the-clock monitoring across expansive areas with minimal blind spots.

Key Features

• 9-megapixel resolution with 3008 x 3000 active pixels for superior image clarity
• 360° panoramic fisheye lens with 185° horizontal and vertical field of view
• 80-foot Smart IR™ infrared range for complete darkness surveillance
• IP66 weatherproof rating and IK09 impact resistance for outdoor durability
• PoE powered with minimal 10W maximum consumption
• Dual-stream H.264/H.265 compression with variable frame rates up to 30fps
• Onboard micro SD/SDHC/SDXC card slot supporting up to 1TB storage
• 16 programmable privacy masks for sensitive area protection

Technical Specifications

This camera features a 12.4MP 1/1.7" CMOS sensor with intelligent image processing. The 2.1mm fixed lens delivers exceptional wide-angle coverage without distortion compensation requirements. Auto day/night switching provides color imagery in daylight (0.03 lux color sensitivity) and sharp black & white performance in complete darkness (0.0 lux B/W).

Advanced video technologies include Smart DNR™ 3D digital noise reduction, automatic gain control, backlight compensation, and de-fog processing. Manual or auto shutter modes with speeds from 1/15 to 1/32000 accommodate diverse lighting conditions. The camera supports multiple video resolutions up to 3008x3000 in H.264/H.265 or 1280x1280 in MJPEG, with configurable bitrate control (100Kbps–10Mbps) for network efficiency.

Connectivity & Integration

The camera connects via standard RJ45 Gigabit Ethernet (10/100Base-T) and supports comprehensive network protocols including RTSP, DHCP, DNS, DDNS, HTTPS/TLS encryption, and 802.1x authentication. Compatible with major VMS platforms including DW Spectrum® IPVMS, Genetec, Milestone Systems, and ExacqVision. Dual I/O alarm connections and single audio input enable integration with external devices and audio monitoring.

Intelligent Video Analytics

Built-in IVA license supports intrusion detection, line crossing, counting, loitering, enter/exit, and tamper detection. Optional IVA+ license adds logical rules, object removal, tailgating, direction tracking, and disappearance alerts for advanced threat management.

Environmental Durability

Operating reliably from -4°F to 122°F (-20°C to 50°C) in 10–90% humidity (non-condensing), the aluminum die-cast housing weighs only 1.10 lbs and measures 4.92" x 1.88". This lightweight, rugged construction is ideal for mounting on building exteriors, poles, or recessed installations.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-PPVF9Di2TW excels in scenarios requiring panoramic coverage with minimal camera installations. The 360° fisheye design significantly reduces blind spots compared to traditional PTZ or multi-camera setups, lowering deployment costs and complexity. H.265 codec support enables high-resolution streaming over bandwidth-constrained networks, critical for remote monitoring.

The Smart IR™ system with 80-foot range outperforms passive designs, ensuring reliable night identification. Integration with major VMS platforms and comprehensive IVA analytics make this camera suitable for enterprise security operations, parking facilities, and wide-area perimeter monitoring.
