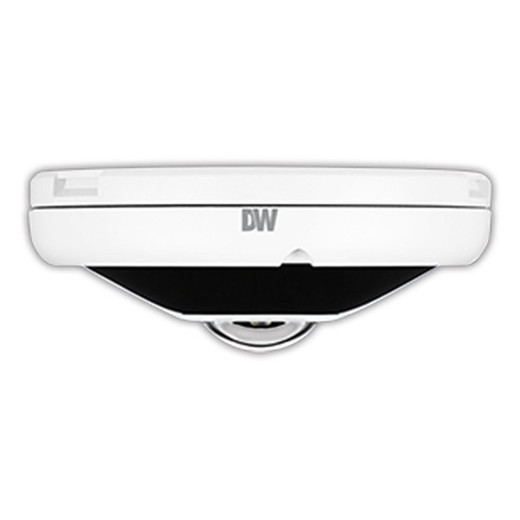

Digital Watchdog DWC-PVF5M1TIRWC1T 5MP IR Outdoor Panoramic Fisheye IP Camera

Digital Watchdog DWC-PVF5M1TIRWC1T 5MP IR Fisheye Camera

The Digital Watchdog DWC-PVF5M1TIRWC1T is a 5MP panoramic fisheye IP camera engineered for comprehensive outdoor surveillance. With its exceptional 185° horizontal and vertical field of view, this camera eliminates blind spots and delivers expansive coverage ideal for monitoring large perimeter areas, parking lots, and building exteriors. The fixed 1.55mm lens combined with a 4MP 1/3" CMOS sensor produces crisp, detailed imagery even in challenging lighting conditions.

Key Features

• 5MP resolution with 3096 x 2080 pixel total imaging
• 185° panoramic fisheye lens with fixed 1.55mm focal length
• Smart IR™ night vision with 55-foot infrared illumination range
• Exceptional low-light performance: 0.0 lux (B/W), 0.39 lux (color)
• IP66-rated aluminum die-cast housing for outdoor durability
• Power over Ethernet (PoE) for simplified installation
• Auto day/night operation with color and B/W switching
• Smart DNR™ 3D digital noise reduction for cleaner footage
• Up to 30fps streaming across all resolutions
• 4 programmable privacy mask zones
• 1TB local onboard recording storage

Technical Specifications

Image Quality: The camera utilizes H.264 and MJPEG compression with variable bitrate control (100Kbps–10Mbps) for adaptive streaming. Multiple resolution options include 2592 x 1944, 640 x 480, and 320 x 240 at up to 30fps. Advanced shutter control features anti-flicker, auto, manual, and slow shutter modes (1/30 to 1/32000) with 5x, 7.5x, and 10x slow shutter capability.

Connectivity & Integration: Native ONVIF, RTSP, and RTP support ensure compatibility with standard video management platforms. Includes 1 DW Spectrum® CaaS™ license for cloud-based recording and management. Supports up to 30 MEGApix® cameras per network. Web access via Chrome, Firefox, Safari, Edge, and cross-platform OS support (Windows, Mac, Linux).

Security & Alerts: Features 802.1x authentication, digest authentication (ID/PW), HTTPS/TLS encryption, and IP filtering. Operational notifications via email, FTP, and alarm output activation. Motion detection with customizable triggers.

Environmental Rating: Operating temperature range of -4°F to 122°F (-20°C to 50°C) and 0–90% RH (non-condensing) ensure reliable year-round performance. IP66 rating provides complete dust protection and water resistance.

Power & Installation

PoE operation delivers maximum 3.6W, eliminating the need for separate power supplies at the camera location. Compact 4.92" x 1.88" housing and lightweight 1.10 lbs design simplify mounting. Requires 5-year warranty coverage.

Ideal Applications

Suited for perimeter security, parking lot monitoring, building entrances, warehouse loading docks, and large outdoor spaces where panoramic coverage and night vision are essential. The fisheye format and extensive field of view reduce camera count requirements and installation costs for expansive areas.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-PVF5M1TIRWC1T delivers outstanding value for panoramic outdoor surveillance. The 185° fisheye lens fundamentally changes site coverage strategy—one camera replaces multiple conventional units. The 55-foot Smart IR range and 0.39 lux color sensitivity enable reliable 24/7 operation in most outdoor conditions.

The included DW Spectrum® CaaS™ license and support for up to 30 networked cameras make this ideal for multi-camera enterprise deployments. IP66 aluminum construction and -20°C to +50°C operating range confirm outdoor-grade durability. PoE simplification reduces installation complexity and infrastructure cost.

The combination of local 1TB storage and cloud CaaS management provides redundancy and flexibility. Motion detection, privacy masking, and HTTPS/802.1x security meet professional surveillance standards. For facilities requiring maximum area coverage with minimal camera count, this fisheye delivers exceptional ROI.
