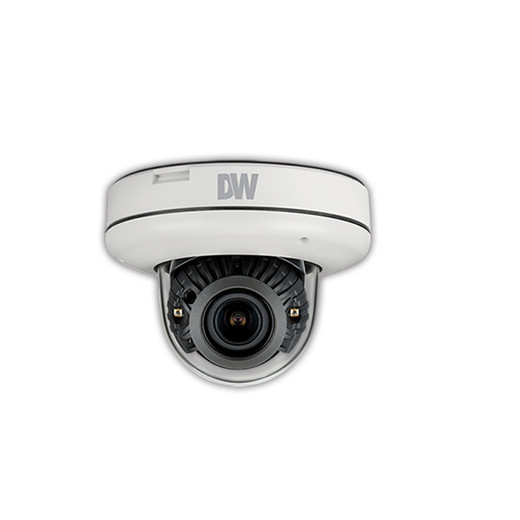

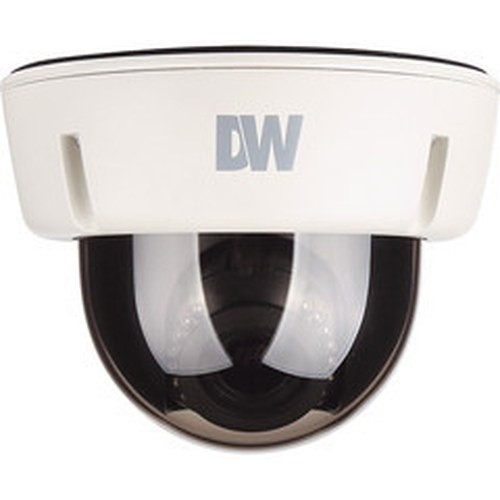

Digital Watchdog DWC-MV82DiVT 2MP IR Outdoor Dome Camera
The Digital Watchdog DWC-MV82DiVT is a professional 2MP infrared outdoor dome camera engineered for sites requiring dependable surveillance in unpredictable weather and low-light conditions. It combines varifocal optics, adaptive IR illumination, and robust weatherproofing into a form factor that handles both direct rainfall and intentional impact without performance degradation. This is a workhorse camera, not a premium option—it delivers the specifications you need without unnecessary features.
Key Features
- 2MP resolution (1920×1080): Delivers full HD detail across typical surveillance distances. Sufficient for facial recognition at 10–15 feet; scales storage and bandwidth efficiently on multi-camera deployments without forcing H.265 compression as a requirement.
- 100-foot Smart IR™ illumination: Infrared output automatically scales based on scene depth, preventing washout on nearby objects while extending visibility into dark areas. This adaptive behavior is critical on outdoor sites where camera placement may be 30+ feet from entry points but only 10 feet from close-range intrusion zones.
- Varifocal 2.8–8.2mm lens (89.6° to 27° horizontal field of view): Remote zoom adjustment allows you to optimize coverage without repositioning the dome after installation. Wider angles (89.6°) capture broader areas; narrow angles (27°) provide detail-level monitoring of specific entry points or high-value zones.
- IP66 and IK10 ratings: IP66 prevents water ingress from direct rain, spray, and washdown; IK10 means the dome withstands 20-joule impact strikes (deliberate vandalism, construction debris, falling objects). Together they define deployment boundaries: suitable for exposed outdoor mounting, parking structures, and industrial yards. Not suitable for submerged installations or sustained high-pressure washdown (IP67 required).
- H.265 and H.264 dual compression: H.265 reduces file size approximately 40–60% versus H.264 at equivalent quality, a material factor when recording 24/7 across 6+ cameras on a single NVR. H.264 support preserves compatibility with legacy systems. MJPEG available for motion-triggered or bandwidth-limited scenarios.
- Smart DNR™ 3D digital noise reduction: IR-assisted low-light imaging introduces luminance noise; Smart DNR suppresses this while preserving edge detail, resulting in cleaner playback and more reliable motion detection in complete darkness.
- PoE power (IEEE 802.3af): Draws under 13W, fitting within standard 802.3af budgets. No separate 12VDC supply or PoE injector needed if your switch has available power allocation. Simplifies wiring in retrofit installations where power lines are unavailable.
- Day/night switching with color/B&W modes: Automatically transitions based on ambient light. Color mode operates down to 0.16 lux (typical office fluorescent); B&W (IR-assisted) reaches 0.0 lux in total darkness.
- SD card slot for local backup: Survives network outages or NVR failures. Stores motion-triggered or continuous clips locally; useful for sites with unreliable WAN links or where edge recording reduces network load.
- Motion detection with email/FTP alerts: Triggers notifications or uploads to remote servers without requiring a separate analytics appliance. Configure sensitivity and detection zones through the web interface.
Integration and Compatibility
The DWC-MV82DiVT conforms to ONVIF Profile S, ensuring integration with major video management systems including DW Spectrum® IPVMS, Milestone XProtect, and others. Network authentication via 802.1X, HTTPS encryption, IP filtering, and digest authentication protect against unauthorized access. Web viewing runs on Chrome, Firefox, Safari, and Edge across Windows, Mac, and Linux.
Operating temperature range of –4°F to 122°F (–20°C to 50°C) accommodates most North American climates. Verify lower limits if your site experiences sustained sub–zero conditions; condensation risk increases in unheated enclosures near the lower bound.
When to Choose a Different Model
If your deployment requires higher resolution for detailed facial identification across distances exceeding 25 feet, consider a higher-megapixel variant in the Digital Watchdog IP camera line. If the camera sits indoors or in covered structures, cost savings are available with non-weatherproofed models lacking IP66/IK10 ratings. For sites requiring 24-hour edge storage without network dependency, a variant with larger integrated storage may reduce SD card management overhead.
Deployment Context
Common deployments for the DWC-MV82DiVT include retail storefronts, parking lot perimeter monitoring, warehouse dock doors, and utility infrastructure (electrical substations, telecom cabinets). The varifocal lens and modest power draw make it suitable for pole-mounted or eave-mounted configurations where power runs are difficult. Network video recorders configured for H.265 encode will realize immediate storage reductions, extending retention timelines on fixed-capacity drives.
Frequently Asked Questions
Q: What is the maximum effective IR range in total darkness?
A: The DWC-MV82DiVT delivers clear B&W imagery at 100 feet with Smart IR enabled. Actual distance depends on scene reflectivity; shiny surfaces or light-colored walls extend range, while matte black or dark asphalt reduce it. Test at your intended mounting height before finalizing placement.
Q: Does the DWC-MV82DiVT work with Milestone XProtect?
A: Yes. ONVIF Profile S conformance ensures compatibility. Import via standard ONVIF discovery in Milestone; verify the specific integration guide for your Milestone version.
Q: Can I use H.265 with an older NVR that only supports H.264?
A: No. Configure the camera for H.264 output if your NVR lacks H.265 decoding capability. You'll sacrifice compression efficiency but gain backward compatibility.
Q: Is the varifocal lens motorized?
A: Yes. Zoom and focus adjust remotely via the web interface or management software without physical access to the camera after installation.
Q: What's the field of view at maximum telephoto (27°)?
A: At 27° horizontal, the camera captures a narrower area suitable for detailed monitoring of specific zones (entry doors, ATMs, loading docks) from longer standoff distances.
Q: Does the IP66 rating allow power washing?
A: IP66 handles spray and direct rainfall but not sustained high-pressure washdown. If your site requires regular pressure cleaning, mount the camera outside the wash zone or upgrade to IP67-rated alternatives.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DWC-MV82DiVT strikes a practical balance between durability and cost that appeals to integrators handling mid-market outdoor surveillance. At 2MP, the resolution avoids the storage penalty of 4MP+ domes while delivering acceptable facial recognition at typical installation distances. The Smart IR™ implementation—particularly the adaptive output based on scene depth—is a genuine technical differentiator; fixed-output IR competitors often produce washout on nearby objects while struggling at range. This matters when a camera is mounted 30 feet up but covers both a doorway 10 feet away and a parking area 100+ feet out.
Technical Highlights:
- H.265 codec support: On a 24/7 continuous record deployment with 8+ cameras, H.265 typically reduces storage demand by 40–60% versus H.264. Real math: a 2TB drive storing 30 days of H.264 typically holds 45–50 days of H.265 at equivalent quality. Over a year, that's 180–240 extra days of retention without adding drives.
- IK10 vandal rating combined with IP66: This pairing is rare at this price point. IK10 (20-joule impact resistance) matters on construction sites, high-traffic warehouses, and installations accessible to the public. Aluminum die-cast construction holds up where plastic domes crack under intentional abuse.
- Varifocal lens with remote adjustment: No field return for lens swaps. Once mounted, zoom can be fine-tuned from the office. This reduces deployment friction and eliminates the need to stock multiple fixed-lens variants.
Deployment Considerations:
- Power budget: Under 13W via PoE affords significant switch flexibility. Stack 12+ of these on a single 180W PoE+ switch without exhausting the budget. Confirm your switch's total power allocation before planning large deployments.
- Temperature extremes: The –4°F lower bound assumes the camera is operational (not dormant). In unheated outdoor enclosures near that limit, condensation can form inside the lens during dawn/dusk transitions. Proper ventilation or heated mounts mitigate this; verify environmental conditions on design calls.
- SD card reliance: Local recording is a fallback, not a primary retention strategy. Expect to swap or retrieve cards weekly on high-motion sites. Ensure your NVR software can retrieve and index SD content reliably; some platforms have limited SD playback integration.
Position the DWC-MV82DiVT for deployments where weather resilience and reasonable resolution matter more than premium image quality or ultra-long-range identification. Typical fit: retail chains needing consistent outdoor coverage across dozens of locations, municipal parking facilities, warehouse exterior monitoring, and utility site protection where uptime and simplicity outrank analytical capabilities.
